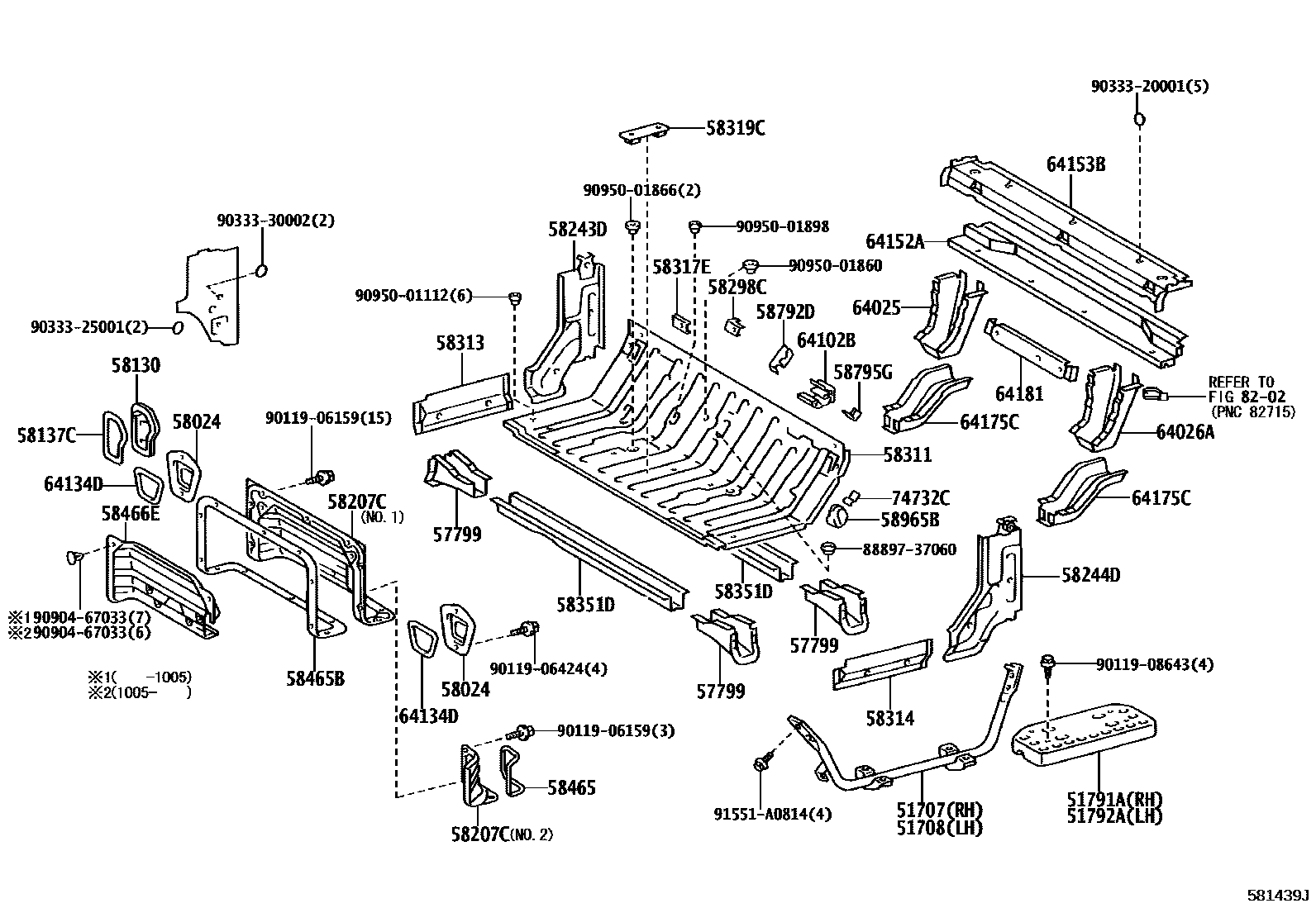

REAR FLOOR PANEL & REAR FLOOR MEMBER

51707STEP SUB-ASSY, RH

main58307-25010iKDY23#,25#,26#..10T,125T200108-201502

sub58307-25011

51708STEP SUB-ASSY, LH

main58308-37030iKDY23#,25#,26#..10T,125T200108-201502

51791APANEL, STEP, REAR RH

main51791-25010iKDY23#,25#,26#..10T,125T200108-200908

sub51791-25011

main51791-25011iKDY231,251,261..10T,125T200909-201502

51792APANEL, STEP, REAR LH

main51791-37030iKDY231,251,261..10T,125T200909-201502

main51791-95A00iKDY23#,25#,26#..10T,125T200108-200908

sub51791-37030

57799GUSSET, REAR FLOOR CROSSMEMBER

main57799-37060iKDY23#,25#,26#..10T,125T200108-201502

58024COVER, HEADER PANEL

main58227-37060iKDY23#,25#,26#..10T,125T200108-201412

sub58227-37061

main58227-37061iKDY231,251,261..10T,125T201501-201502

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58106-25010iKDY23#,25#,26#..10T,125T200108-201412

sub58106-25011

main58106-25011iKDY231,251,261..10T,125T201501-201502

58137CSEAL, RESERVE TANK SERVICE HOLE COVER

main58137-37010iKDY23#,25#,26#..10T,125T200108-201502

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-25010iKDY23#,25#,26#..10T,125T200108-201004

NO.1

sub58207-25011

main58207-25011iKDY231,251,261..10T,125T201005-201502

NO.1

sub58207-25012

main58461-25020iKDY23#,25#,26#..10T,125T200108-201502

NO.2

58243DPANEL, FLOOR SIDE, REAR RH

main58043-37030iKDY23#,25#,26#..10T,125T200108-201407

sub58043-37031

main58043-37031iKDY231,251,261..10T,125T201408-201502

58244DPANEL, FLOOR SIDE, REAR LH

main58044-37030iKDY23#,25#,26#..10T,125T200108-201407

sub58044-37031

main58044-37031iKDY231,251,261..10T,125T201408-201502

58298CREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-95400iKDY23#,25#,26#..10T,125T200108-201502

58311PAN, REAR FLOOR

main58311-25030iKDY231,251,261..10T,125T201206-201502

main58311-25050iKDY23#,25#,26#..10T,125T200108-201206

58313PANEL, REAR FLOOR SIDE, RH

main58313-37050iKDY23#,25#,26#..10T,125T200108-201502

58314PANEL, REAR FLOOR SIDE, LH

main58314-37050iKDY23#,25#,26#..10T,125T200108-201502

58317ERETAINER, REAR SEAT, NO.2

main58317-37010iKDY23#,25#,26#..10T,125T200108-201502

58319CANCHOR, REAR SEAT

main58319-95400iKDY23#,25#,26#..10T,125T200108-201206

58351DREINFORCEMENT, REAR FLOOR PANEL

main58351-37010iKDY230,250,260..10T,125T200108-201502

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-25010iKDY23#,25#,26#..10T,125T200108-201502

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-25020iKDY23#,25#,26#..10T,125T200311-201502

main58465-37080iKDY230,250,260..10T,125T200108-200311

sub58465-25020

58466ESILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58327-25010iKDY23#,25#,26#..10T,125T200108-201502

58792DSUPPORT, JACK

main58792-25010iKDY23#,25#,26#..10T,125T200108-201502

58795GPLATE, JACK CLAMP

main58795-95500iKDY23#,25#,26#..10T,125T200108-201502

58965BHOLDER, JACK

main58965-95400iKDY23#,25#,26#..10T,125T200108-201502

64025BRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-37090iKDY23#,25#,26#..10T,125T200108-201502

64026ABRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37140iKDY23#,25#,26#..10T,125T200108-201502

64102BBRACKET SUB-ASSY, JACK HANDLE SUPPORT

main64102-95A00iKDY23#,25#,26#..10T,125T200108-201502

64134DPACKING, HEADER PANEL COVER

main64134-37020iKDY23#,25#,26#..10T,125T200108-201502

64152AFRAME, BACK, LOWER

main64152-37020iKDY23#,25#,26#..10T,125T200108-201012

sub64152-37021

main64152-37021iKDY231,251,261..10T,125T201101-201502

64153BFRAME, BACK, REAR

main64153-37030iKDY230,250,260..10T,125T200108-200605

sub64153-37031

main64153-37031iKDY23#,25#,26#..10T,125T200606-201502

64175CBRACE, REAR MOUNTING BRACKET

main64175-37030iKDY23#,25#,26#..10T,125T200108-201502

64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR

main64084-25010iKDY23#,25#,26#..10T,125T200108-201502

74732CBRACKET, TOOL BAG SET BAND

main74732-95600iKDY23#,25#,26#..10T,125T200108-201502

8202

8889737060VALVE, COOLER MAGNET

main88897-37060

9011906159

main90119-06159

9011906424

main90119-06424

9011908643

main90119-08643

9033320001

main90333-20001

9033325001

main90333-25001

9033330002

main90333-30002

9090467033

main90904-67033

9095001112

main90950-01112

9095001860

main90950-01860

9095001866

main90950-01866

9095001898

main90950-01898

91551A0814

main91551-A0814

47 parts on this diagram · 1 diagram in section
