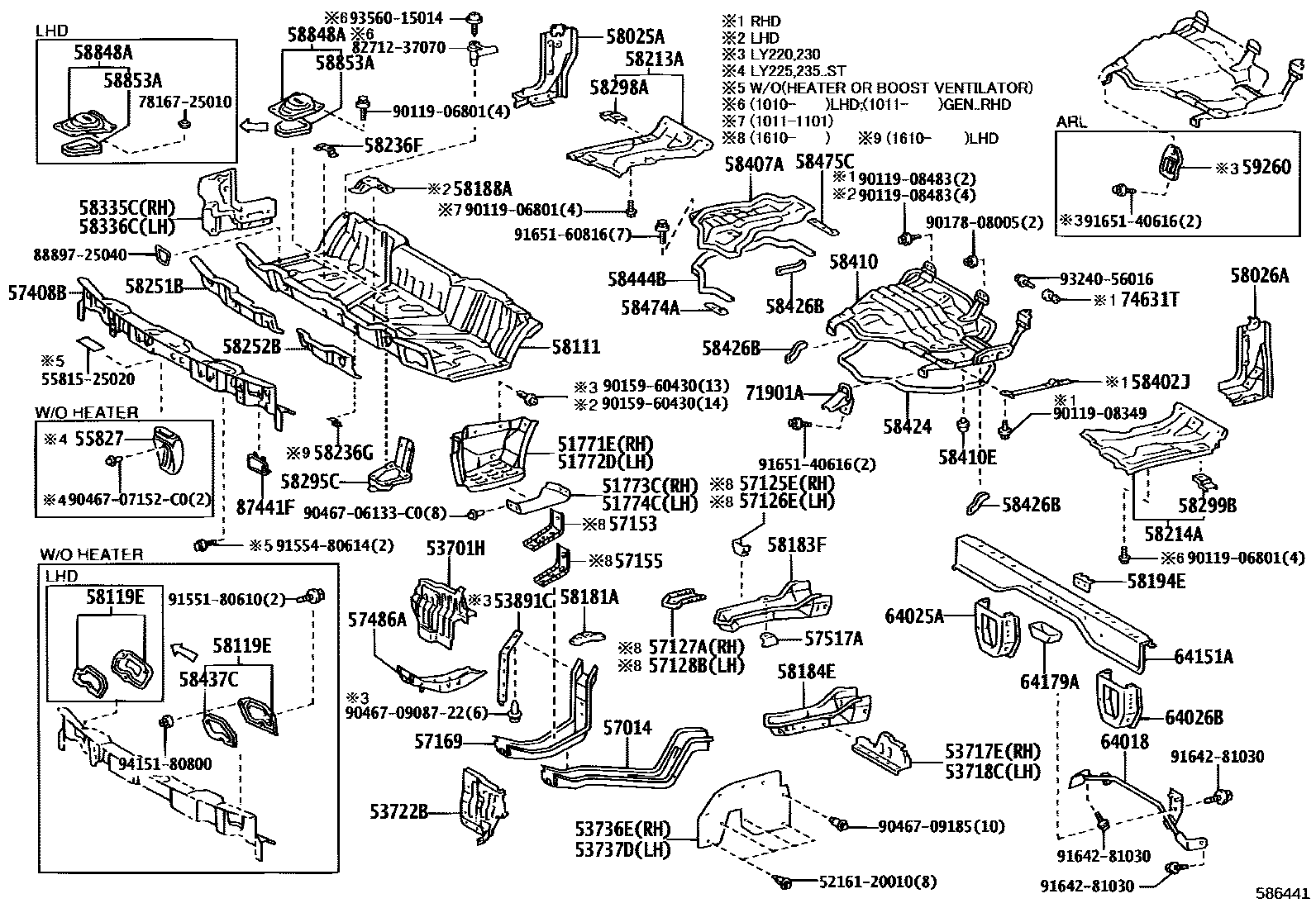

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1HOLE PLUG 0004 1 0006 1 0007 1 0008 1 0010 1 0011 1HOLE PLUG 0013 1HOLE PLUG

51771EPLATE, STEP, RH

main51771-25020iKDY221,231,251,261,LY225,23#¥11,300200703-201102

sub51771-25021¥7,000

main51771-25021iKDY221,231,LY23#..RHD..(GEN,SA)¥7,000201103-202111

main51771-37100iKDY22#,23#,25#,26#,LY22#,23#¥13,900200107-200702

sub51771-25020¥11,300

51772DPLATE, STEP, LH

main51772-25010iKDY22#,23#,25#,26#,LY225,235..LHD¥13,900200107-200702

sub51772-25020¥11,300

main51772-25020iKDY221,231,251,261,LY225,235..LHD¥11,300200703-201102

sub51772-25021¥7,000

main51772-25021iKDY221,231,251,261,LY225,235..LHD¥7,000201103

main51772-37080iKDY22#,23#,25#,LY22#,23#..RHD¥13,900200107-200702

main51772-37130iKDY221,231,251,LY225,23#..RHD¥11,300200703-201102

sub51772-37131¥8,600

main51772-37131iKDY221,231,251,LY225,23#..RHD¥8,600201103-202111

51773CCOVER, STEP PLATE, RH

main51773-37020iKDY220,230,250,260,LY22#,23#¥680200107-200206

NO PAINT REQ.

51774CCOVER, STEP PLATE, LH

main51774-37010iKDY220,230,250,260,LY22#,23#¥650200107-200206

NO PAINT REQ.

53701HAPRON SUB-ASSY, FRONT FENDER, RH

main53701-37022iKDY22#,23#,25#,26#..LHD¥1,730200108-201502

main53701-37030iLY225,235¥6,100200107-200401

sub53701-37031¥6,100

main53701-37031iLY225,235¥6,100200401-200810

sub53701-37032¥3,220

main53701-37032iLY225,235¥3,220200811

main53701-37040iKDY22#,23#,25#,LY220,230..RHD¥6,100200107-200810

sub53701-37041¥4,950

main53701-37041iKDY221,231,251,LY230..RHD¥4,950200811-201909

sub53701-37090¥3,750

main53701-37090iKDY221,231,LY230¥3,750201910-202111

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-25050iKDY221..EUR;LY225,235..LHD;KDY231,251,261..15T..IV3;KDY220,230,250,LY220,230..RHD..(ARL,EUR)¥1,020200107-202111

main53717-37150iKDY23#,25#,26#..10T,125T¥1,020200108-201502

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37110iKDY221,231,LY230..GEN,SA¥1,020200107-202111

main53718-37120iKDY23#,25#,26#..10T,125T¥1,020200108-201502

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53702-25010iKDY221,231..LHD..CBU;KDY220,230,250,260,LY225,235..LHD¥6,100200107-201011

main53702-25010iKDY221,231,251,261..LHD..IV3¥6,100200609-201502

CKD PACKAGE

main53702-37060iKDY221,231,251,261,LY225,235..LHD201011

main53722-25010iLY225,235..RHD¥3,440200107-201007

sub53722-25011

main53722-25011iLY225,235..RHD201008-201010

main53722-37030iKDY220,230,250,LY220,230..RHD¥3,440200107-200206

sub53722-37031¥3,440

main53722-37031iKDY22#,23#,25#,LY220,230..RHD¥3,440200206-201007

sub53722-37032¥2,170

main53722-37032iLY230¥2,170201008-202111

main53722-37090iLY225,235..RHD201011

53736ESEAL, FRONT FENDER APRON, RH

main53736-25050iLY225,235¥4,860200107-201203

sub53736-25051

main53736-25051iLY225201204-201610

main53736-25070iLY235201610

53737DSEAL, FRONT FENDER APRON, LH

main53737-25060iLY225,235¥5,100200107-201203

sub53737-25061

main53737-25061iLY225201204-201610

main53737-25080iLY235201610

53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT

main53891-37030iKDY220,230,250,260,LY220,230¥2,620200107-200403

sub53891-37031¥2,190

main53891-37031iKDY22#,23#,25#,26#,LY220,230¥2,190200403-201704

sub53891-37032¥1,400

main53891-37032iKDY221,231,LY230¥1,400201705-202111

55827DUCT, VENTILATOR AIR GUIDE

main55827-25020iLY225¥2,260200107-201610

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-25020iLY225,235¥19,100200107-201610

main57014-25030iKDY22#,23#,25#,26#,LY220,230¥21,200200107-201610

main57014-25050iLY235201610

main57014-37070iKDY221,231,LY230¥14,600201610-202111

57125EREINFORCEMENT, FRONT SIDE MEMBER, RH

main57125-37010iKDY221,231,LY230¥390201610-202111

57126EREINFORCEMENT, FRONT SIDE MEMBER, LH

main57126-37020iLY235¥390201610-202111

57127AREINFORCEMENT, FRONT SIDE MEMBER, NO.8 RH

main57157-37030iLY235¥1,180201610-202111

57128BREINFORCEMENT, FRONT SIDE MEMBER, NO.8 LH

main57158-37030iKDY221,231,LY230¥1,180201610-202111

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-37010iLY235¥1,060201610-202111

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-37020iKDY221,231,LY230¥1,170201610-202111

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-25040iLY225,235¥11,800200107-200306

sub57169-25041¥11,400

main57169-25041iLY225,235¥11,400200306-201610

main57169-25050iLY235201610-202003

sub57169-25051

main57169-25051iLY235202004

main57169-37080iKDY220,230,250,260,LY220,230¥11,800200107-200306

sub57169-37081¥10,700

main57169-37081iKDY22#,23#,25#,26#,LY220,230¥10,700200306-202003

sub57169-37082¥8,000

main57169-37082iKDY221,231,LY230¥8,000202004-202111

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25340iLY225,235..RHD¥28,700200107-200306

sub57408-25341¥28,600

main57408-25341iKDY221,231,LY225,235..RHD..GEN¥28,600200306-201012

sub57408-25342

sub87128-37060¥660

sub87128-37070¥670

main57408-25343iKDY221,231,LY225,235..RHD..GEN201012-201610

main57408-25350iLY225,235..LHD¥28,700200107-200306

sub57408-25351¥28,600

main57408-25351iLY225,235..LHD¥28,600200306-201012

sub57408-25352

sub87128-37060¥660

sub87128-37070¥670

main57408-25353iLY225,235..LHD201012-201610

main57408-25360iKDY220,230,250..RHD¥28,700200108-200306

sub57408-25361¥28,700

main57408-25361iKDY220,230,250..RHD¥28,700200306-200408

main57408-25370iKDY220,230,250,260..LHD¥28,700200108-200306

sub57408-25371¥28,700

main57408-25371iKDY220,230,250,260..LHD¥28,700200306-200408

main57408-25390iLY220,230¥28,700200408-200707

sub57408-25430¥28,600

main57408-25400iKDY22#,23#,25#..RHD..EUR200408-200708

sub57408-25440

main57408-25410iKDY22#,23#,25#,26#..LHD¥28,700200408-200708

sub57408-25450

main57408-25430iLY230¥28,600200708-201012

sub57408-25431¥28,600

sub87128-37050¥660

sub87128-37070¥670

main57408-25432iLY230¥28,600201012-201610

main57408-25440iKDY221,231,251..RHD..EUR200711-201012

sub57408-25441

sub87128-37050¥660

sub87128-37070¥670

main57408-25442iKDY221,231,251..RHD..EUR201012-201502

main57408-25450iKDY221,231,251,261..LHD200711-201012

sub57408-25451

sub87128-37050¥660

sub87128-37070¥670

main57408-25452iKDY221,231,251,261..LHD201012-201502

main57408-25461iLY225,235..RHD¥28,600201012-201610

W(FRONT HEATER)

main57408-25470iKDY221,231,LY23#..RHD¥18,000201610-202111

main57408-25480iLY235..LHD201610

main57408-37260iLY220,230¥28,700200107-200206

W(FRONT HEATER)

sub57408-37261¥28,700

main57408-37261iLY220,230¥28,700200206-200306

W(FRONT HEATER)

sub57408-37262¥28,600

main57408-37262iLY225,235..RHD..ST¥28,600200306-201012

W(FRONT HEATER)

sub57408-25460¥28,600

sub87128-37050¥660

sub87128-37070¥670

main57408-37262iLY220,230¥28,600200306-200408

sub57408-25460¥28,600

sub87128-37050¥660

sub87128-37070¥670

main57408-37270iLY225,235..LHD¥28,700200107-200206

W(FRONT HEATER)

sub57408-37271¥28,700

main57408-37271iLY225,235..LHD¥28,700200206-200306

W(FRONT HEATER)

sub57408-37272¥28,600

main57408-37272iLY225,235..LHD¥28,600200306-201012

W(FRONT HEATER)

sub57408-37273¥28,600

sub87128-37060¥660

sub87128-37070¥670

main57408-37274iLY225,235..LHD201012-201610

W(FRONT HEATER)

57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57016-37030iLY235¥3,300201610-202111

main57486-37011iKDY22#,23#,25#,26#,LY22#,23#¥4,410200107-201610

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-37010iKDY220,230,250,LY220,230..RHD¥910200107-200312

sub57517-37011¥570

main57517-37011iKDY221,231,LY230..GEN,SA¥570200312-202111

main57517-37020iLY235..LHD;KDY230,250,260,LY225..LHD..(10T,125T)¥920200107-200312

sub57517-37021¥570

main57517-37021iKDY22#,23#,25#,26#,LY225,235..LHD¥570200312

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-25030iKDY23#,25#,26#..10T,125T¥4,060200108-201502

main58043-25020iKDY22#,LY22#,23#;KDY23#,25#,26#..15T¥4,060200107-202111

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-25020iKDY23#,25#,26#..10T,125T¥4,060200108-201502

main58044-37070iKDY220,LY22#,23#;KDY230,250,260..15T¥4,060200107-200206

main58044-37090iKDY22#,LY22#,23#;KDY23#,25#,26#..15T¥3,640200206-202111

58111PAN, FRONT FLOOR

main58111-25120iLY22#,23#..RHD..(ARL,GEN)¥32,500200107-200306

sub58111-25121¥32,500

main58111-25121iLY22#,23#..RHD..(ARL,GEN)¥32,500200306-200411

sub58111-25122¥32,500

main58111-25122iLY22#,23#..RHD..(ARL,GEN)¥32,500200411-200604

sub58111-25123¥32,500

main58111-25123iLY225,235..RHD¥32,500200605-201010

sub58111-25124

main58111-25124iLY225,235..RHD201011-201407

sub58111-25125¥32,600

main58111-25125iLY225,235..RHD¥32,600201408-201610

main58111-25126iLY235..RHD201610

main58111-25191iKDY220,230,250,260..LHD¥32,500200108-200306

W(*80)

sub58111-25192¥32,500

main58111-25192iKDY220,230,250,260..LHD¥32,500200306-200604

W(*80)

sub58111-25193

main58111-25193iKDY22#,23#,25#,26#..LHD200605-201010

W(*80)

sub58111-25194

main58111-25194iKDY221,231,251,261..LHD201011-201407

W(*80)

sub58111-25195

main58111-25195iKDY221,231,251,261..LHD201408-201502

W(*80)

main58111-25260iKDY220,230,250,260,LY225,235..LHD¥32,500200107-200306

sub58111-25261¥32,500

main58111-25261iKDY220,230,250,260,LY225,235..LHD¥32,500200306-200604

sub58111-25262

main58111-25262iKDY22#,23#,25#,26#,LY225,235..LHD200605-201010

sub58111-25263

main58111-25263iKDY221,231,251,261,LY225,235..LHD201011-201407

sub58111-25264

main58111-25264iKDY221,231,251,261,LY225,235..LHD201408

main58111-37171iKDY220,230,250..RHD¥32,200200108-200306

W(*80)

sub58111-37176¥32,500

main58111-37172iKDY220,230,250..RHD¥32,200200306-200411

W(*80)

sub58111-37173¥32,200

main58111-37173iKDY220,230,250..RHD¥32,200200411-200601

W(*80)

sub58111-37174¥32,500

main58111-37174iKDY22#,23#,25#..RHD..EUR¥32,500200602-200907

W(*80)

sub58111-37175¥32,500

main58111-37301iKDY220,230,250,LY230..RHD..(EUR,SA)¥32,200200108-200306

sub58111-37302¥32,200

main58111-37302iKDY220,230,250,LY230..RHD..(EUR,SA)¥32,200200306-200411

sub58111-37303¥32,200

main58111-37303iKDY220,230,250,LY230..RHD..(EUR,SA)¥32,200200411-200601

sub58111-37304¥32,500

main58111-37304iKDY22#,23#,25#,LY230..RHD¥32,500200602-200705

sub58111-37305¥32,500

main58111-37305iKDY221,231,251..RHD..EUR¥32,500200706-201009

sub58111-37306¥32,500

main58111-37306iKDY221,231,LY230..GEN,SA¥32,500201010-201011

sub58111-37307¥32,500

main58111-37307iKDY221,231..GEN¥32,500201011-201407

sub58111-37308¥22,500

main58111-37308iLY230¥22,500201408-201610

main58111-37531iKDY221,231,251..RHD..EUR¥32,500200907-201009

sub58111-37532¥32,500

main58111-37532iKDY221,231,251..RHD..EUR¥32,500201010-201011

sub58111-37533¥32,500

main58111-37533iKDY221,231..GEN¥32,500201011-201407

sub58111-37534¥19,200

main58111-37534iKDY221,231,251..RHD¥19,200201408

main58111-37540iKDY221,231,251..RHD..EUR¥32,500200907-201009

W(*80)

sub58111-37541¥32,500

main58111-37541iKDY221,231,251..RHD..EUR¥32,500201010-201011

W(*80)

sub58111-37542¥32,500

main58111-37542iKDY221,231,251..RHD..EUR¥32,500201011-201407

W(*80)

sub58111-37543¥32,600

main58111-37543iKDY221,231,251..RHD..EUR¥32,600201408-201502

W(*80)

main58111-37A31iLY230¥19,500201610-202111

58119ECOVER, FRONT FLOOR SIDE, FRONT

main50819-25010iKDY221,231,LY235..RHD..GEN¥3,160200107-201610

main50819-25020iLY225..LHD¥3,160200107-201610

58181ARETAINER, SEAT RAIL, FRONT

main58181-37030iKDY22#,23#,25#,LY220,230..RHD¥1,250200107-202111

main58181-37050iKDY231,251,261,LY235..LHD;KDY221,230,250,260,LY225..LHD..(10T,125T)¥1,160200107

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-25020iLY225,235..LHD¥8,100200107-200301

sub58183-25021¥8,100

main58183-25021iLY225,235¥8,100200107-201610

main58183-25030iLY235201610

main58183-37060iKDY230,250,260..15T;KDY220,LY230..EUR,SA¥9,400200108-200301

sub58183-37061¥9,400

main58183-37061iKDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA¥9,400200301-201008

sub58183-37062¥9,400

main58183-37062iKDY221,LY230;KDY231,251,261..15T¥9,400201009-201301

sub58183-37063¥5,900

main58183-37063iKDY221,LY230;KDY231,251,261..15T¥5,900201302-202111

main58183-37071iLY230..ARL;KDY23#,25#,26#,LY220..10T,125T¥8,100200301-201008

sub58183-37072¥4,960

main58183-37072iKDY231,251,261..10T,125T¥4,960201009-201502

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-25010iLY225,235..LHD¥8,600200107-200301

sub58184-25011¥8,600

main58184-25011iLY225,235¥8,600200301-201610

main58184-25020iKDY230,250,260..15T;KDY220,LY230..EUR,SA¥8,500200108-200301

sub58184-25021¥8,400

main58184-25021iKDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA¥8,400200301-201301

sub58184-25022¥8,400

main58184-25022iKDY221,LY230;KDY231,251,261..15T¥8,400201302-201610

main58184-25030iLY230..ARL;KDY230,250,260,LY220..10T,125T¥8,600200107-200301

sub58184-25031¥7,100

main58184-25031iLY230..ARL;KDY23#,25#,26#,LY220..10T,125T¥7,100200301-201502

sub58184-25032¥5,900

main58184-25040iLY235201610-201904

sub58184-25041

main58184-25041iLY235201905

main58184-37074iKDY221,231,LY230¥7,800201610-201812

sub58184-37075¥5,400

main58184-37075iKDY221,231,LY230¥5,400201901-202111

58188ABRACKET, ACCELERATOR PEDAL STOPPER

main58188-37010iKDY22#,23#,25#,26#,LY225,235..LHD¥400200107

58194ERETAINER, ENGINE COVER HINGE

main58194-25010iLY220,230..ARL¥430200107-200412

main58194-37010iKDY220..LHD;KDY230,250,260..LHD..15T¥430200107

58213APANEL, SEAT FLOOR, RH

main58201-25030iKDY23#,25#,26#..10T,125T¥8,900200108-201502

main58201-25040iLY22#,23#..RHD..(ARL,GEN)¥9,000200107-201611

main58201-25050iLY235..RHD¥5,600201611

main58201-37100iKDY221,LY225,235..LHD;KDY231,251,261..LHD..15T¥8,900200107-201102

sub58201-25060

main58201-37100iKDY221..LHD..IV3;KDY231,251,261..LHD..15T¥8,900200812-201102

CKD PACKAGE

sub58201-25060

main58201-37170iKDY221,LY225,235..LHD;KDY231,251,261..LHD..15T200812

58214APANEL, SEAT FLOOR, LH

main58202-25020iKDY23#,25#,26#..10T,125T¥8,900200108-201502

main58202-25030iLY22#,23#..RHD..(ARL,GEN)¥5,600200107

main58202-37080iKDY22#,LY225,235..LHD;KDY23#,25#,26#..LHD..15T¥5,600200107

58236FBRACKET, CLUTCH TUBE

main58236-95J01iKDY220..RHD..CBU;KDY230,250,LY220,230..RHD..(ARL,EUR)¥310200107-202111

58236GBRACKET, CLUTCH TUBE, NO.2

main58236-37010iLY235..LHD201610

58251BBRACE, FLOOR PANEL, FRONT

main58251-25020iKDY22#,23#,25#,26#..LHD¥3,920200108-201502

W(*80)

main58251-37031iLY225,235..RHD;KDY220..RHD..IV3¥6,700200107-200601

sub58251-37032¥4,120

main58251-37032iLY230¥4,120200602-202111

main58251-37051iKDY22#,23#,25#,26#,LY225,235..LHD¥2,470200107

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37031iLY230..SA¥2,440200107-202111

main58252-37060iKDY220,230,250,260,LY225,235..LHD¥6,600200107-200306

sub58252-37061¥4,120

main58252-37061iKDY22#,23#,25#,26#,LY225,235..LHD¥4,120200306

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37060iKDY220..RHD..IV3;KDY221,231,251,LY225,235..RHD¥1,820200107-202106

main58295-37061iLY230¥1,750202107-202111

main58295-37070iKDY22#,23#,25#,26#,LY225,235..LHD¥2,190200107-202003

main58295-37140iLY235..LHD202004

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010iLY225,235..LHD;KDY221..LHD..CBU¥990200107-202111

main58298-37020iKDY23#,25#,26#..10T,125T¥870200108-201502

58299BREINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH

main58298-37010iKDY221,231,LY230..GEN,SA¥990200107-202111

main58298-37020iKDY23#,25#,26#..10T,125T¥870200108-201502

58335CPLATE, FLOOR SIDE, FRONT RH

main58095-25050iKDY22#,23#,25#,26#..EUR¥4,320200108-201502

main58335-37040iKDY221,231,LY22#,23#..ARL,GEN,SA¥4,260200107-200809

sub58335-37041¥3,550

main58335-37041iKDY221,231,LY225,23#..GEN,SA¥3,550200810-201906

sub58335-37080¥2,480

main58335-37080iKDY221,231,LY23#¥2,480201907-202111

58336CPLATE, FLOOR SIDE, FRONT LH

main58096-25030iKDY22#,23#,25#,26#..EUR¥4,320200108-201502

main58336-25010iKDY221,231,LY225,235..RHD..GEN¥4,260200107-201610

main58336-37031iLY220,230;LY225,235..LHD¥3,480200107-201811

W(FRONT HEATER)

sub58336-37032¥2,430

main58336-37031iKDY221,231¥3,480201610-201811

sub58336-37032¥2,430

main58336-37032iKDY221,231,LY23#¥2,430201812-202111

58402JBAND SUB-ASSY, ENGINE SERVICE COVER SUPPORT

main58402-25020iLY225,235..RHD¥390201206

main58402-37010iLY22#,23#..RHD..(ARL,GEN)¥370200107-201206

58407ACOVER SUB-ASSY, ENGINE SERVICE HOLE SUB

main58407-25150iLY225,235..RHD¥23,800201010-201212

sub58407-25151¥14,900

main58407-25151iLY225,235..RHD¥14,900201301

main58407-37110iKDY220,230,250,260,LY225,235..LHD¥23,900200107-200601

sub58407-37111

main58407-37111iKDY22#,23#,25#,26#,LY225,235..LHD200602-201005

sub58407-37112

main58407-37112iKDY221,231,251,261,LY225,235..LHD201006

main58407-37120iLY22#,23#..RHD..(ARL,GEN)¥23,700200107-200206

sub58407-37121¥23,800

main58407-37121iLY22#,23#..RHD..(ARL,GEN)¥23,800200206-201010

sub58407-25150¥23,800

58410COVER, ENGINE SERVICE HOLE

main59208-25080iLY220,230..ARL¥17,100200107-200412

main59208-25090iLY225,235..RHD¥11,700200107

main59208-37171iKDY22#,23#,25#,26#,LY225,235..LHD¥17,100200107-201005

sub59208-37172

main59208-37172iKDY221,231,251,261,LY225,235..LHD201006

58410ECUSHION, NO.3

main90541-09046iLY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD¥140200107

58424PACKING, ENGINE SERVICE HOLE COVER, NO.1

main58424-37020iKDY220,230,250,260,LY225,235..LHD¥5,800200107-200404

sub58424-37021¥3,610

main58424-37021iKDY22#,23#,25#,26#,LY225,235..LHD¥3,610200404

main58424-37030iLY22#,23#..RHD..(ARL,GEN)¥2,440200107

58426BPROTECTOR, ENGINE SUB COVER

main58426-95405iLY22#,23#..RHD..(ARL,GEN)¥190200107

58437CPACKING, ENGINE SERVICE HOLE COVER SUB, NO.3

main58475-25020iLY225..RHD¥900200107-201610

58444BPACKING, ENGINE SUB COVER

main58444-37030iLY235..WT;LY220,230..ARL;KDY22#,23#,25#,26#,LY225,235..LHD¥680200107-200908

58474APACKING, ENGINE SUB COVER, NO.2

main58474-37010iLY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD¥280200107

58475CPACKING, ENGIN SUB COVER, NO.3

main58475-37030iLY22#,23#..ARL,GEN;KDY22#,23#,25#,26#..LHD¥390200107

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iKDY22#,23#,25#,LY22#,23#..RHD¥1,150200107-202111

main58840-37020iKDY22#,23#,25#,26#,LY225,235..LHD¥1,150200107

58853APACKING, SHIFT LEVER HOLE

main58853-37020iLY235..RHD..ST;KDY221,231,LY230..GEN,SA¥230200107-202111

59260LOCK ASSY, ENGINE COVER

main59260-25010iLY220,230..ARL¥4,770200107-200412

64018BAR SUB-ASSY, BODY

main64018-25020iKDY22#..LHD;KDY23#,25#,26#..LHD..15T¥8,400200108-201502

main64018-25030iKDY22#,23#,25#,LY230..RHD..(EUR,GEN,SA)¥8,400200108-200811

sub64018-25031¥5,200

main64018-25031iKDY221,231,251,LY230..RHD¥5,200200811-202111

main64018-25040iLY235..LHD;KDY23#,25#,26#,LY225..LHD..(10T,125T)¥5,500200107

main64018-37090iLY22#,23#..RHD..(ARL,GEN)¥5,500200107

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64025-37100iLY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T¥2,740200107

main64171-37010iKDY230,250,260..15T;KDY220,LY230..EUR,SA¥7,200200108-200301

sub64171-37011¥7,100

main64171-37011iKDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA¥7,100200301-201211

sub64171-37012¥5,500

main64171-37012iKDY221,LY230;KDY231,251,261..15T¥5,500201212-201604

sub64171-37013¥5,500

main64171-37013iKDY221,231,LY230¥5,500201605-202111

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37130iLY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T¥2,740200107

main64172-37020iKDY230,250,260..15T;KDY220,LY230..EUR,SA¥7,200200108-200111

sub64172-37021¥7,200

main64172-37021iKDY230,250,260..15T;KDY220,LY230..EUR,SA¥7,200200111-200305

sub64172-37022¥7,100

main64172-37022iKDY23#,25#,26#..15T;KDY22#,LY230..EUR,GEN,SA¥7,100200305-201211

main64172-37023iKDY221,LY230;KDY231,251,261..15T¥4,090201212-202111

64151AFRAME, BACK

main64151-25071iLY225,235..RHD¥14,100200107-201012

sub64151-25072¥14,100

main64151-25073iLY225,235..RHD¥9,800201012

main64151-25080iKDY23#,25#,26#..10T,125T¥14,100200108-201012

sub64151-25081

main64151-25082iKDY231,251,261..10T,125T201012-201502

main64151-37181iKDY220..RHD..CBU;KDY221,23#,25#..RHD¥20,700200108-200610

main64151-37221iLY225,235..LHD¥20,700200107-200610

sub64151-37420

main64151-37420iKDY221,LY225,235..LHD;KDY231,251,261..LHD..15T200610-201012

sub64151-37421

main64151-37422iKDY221,LY225,235..LHD;KDY231,251,261..LHD..15T201012

main64151-37430iKDY221,231,251,LY230..RHD¥14,100200610-201012

sub64151-37431¥8,100

main64151-37432iKDY221,231,251,LY230..RHD¥8,800201012-202111

64179APATCH, REAR MOUNTING BRACKET

main64179-37030iLY230..ARL;LY225,235..LHD;KDY23#,25#,26#,LY220..10T,125T¥1,300200107

71901ACATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT

main71902-37010iLY220,230..ARL¥550200107-200412

74631THOOK, COAT

main58448-26010-B1iLY225,235..RHD200901-201505

MD.CHARCOAL,TRIM1#

main58448-26010-C0iLY225,235..RHD201505

BLACK,TRIM1#

main74631-12060-B5iLY22#,23#..RHD..(ARL,GEN)200107-200812

MD.CHARCOAL,TRIM1#

sub74631-12060¥260

87441FFILTER, HEATER AIR

main87441-25020iKDY22#,23#,25#,26#..LHD200108-201502

W(PASSENGER SIDE HEATER DUCT)

main87441-37010iKDY221,231,251..RHD..EUR200107-201610

main87441-37020iLY225..LHD200107-201610

5216120010CUSHION, REAR BUMPER GUARD, NO.1

main52161-20010¥130

5581525020ROD, COWL VENTILATOR CONTROL

main55815-25020¥420

7816725010PACKING, ACCELERATOR PEDAL HINGE

main78167-25010¥50

8271237070CLAMP, WIRING HARNESS

main82712-37070¥1,270

8889725040VALVE, COOLER MAGNET

main88897-25040

9011906801

main90119-06801¥60

9011908349

main90119-08349¥210

9011908483

main90119-08483¥110

9015960430

main90159-60430¥120

9017808005

main90178-08005¥170

9046706133C0

main90467-06133C0

9046707152C0

main90467-07152C0

904670908722

main90467-0908722

9046709185

main90467-09185¥80

9155180610

main91551-80610¥60

9155480614

main91554-80614¥70

9164281030

main91642-81030¥170

9165140616

main91651-40616¥60

9165160816

main91651-60816¥100

9324056016

main93240-56016¥110

9356015014

main93560-15014¥70

9415180800

main94151-80800¥80

86 parts on this diagram · 10 diagrams in section
