INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1DRIVER SIDE 0006 1CENTER 0007 1PASSENGER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE 0011 1DRIVER SIDE 0012 1CENTER 0013 1PASSENGER SIDE 0014 1DRIVER SIDE 0015 1CENTER 0016 1PASSENGER SIDE

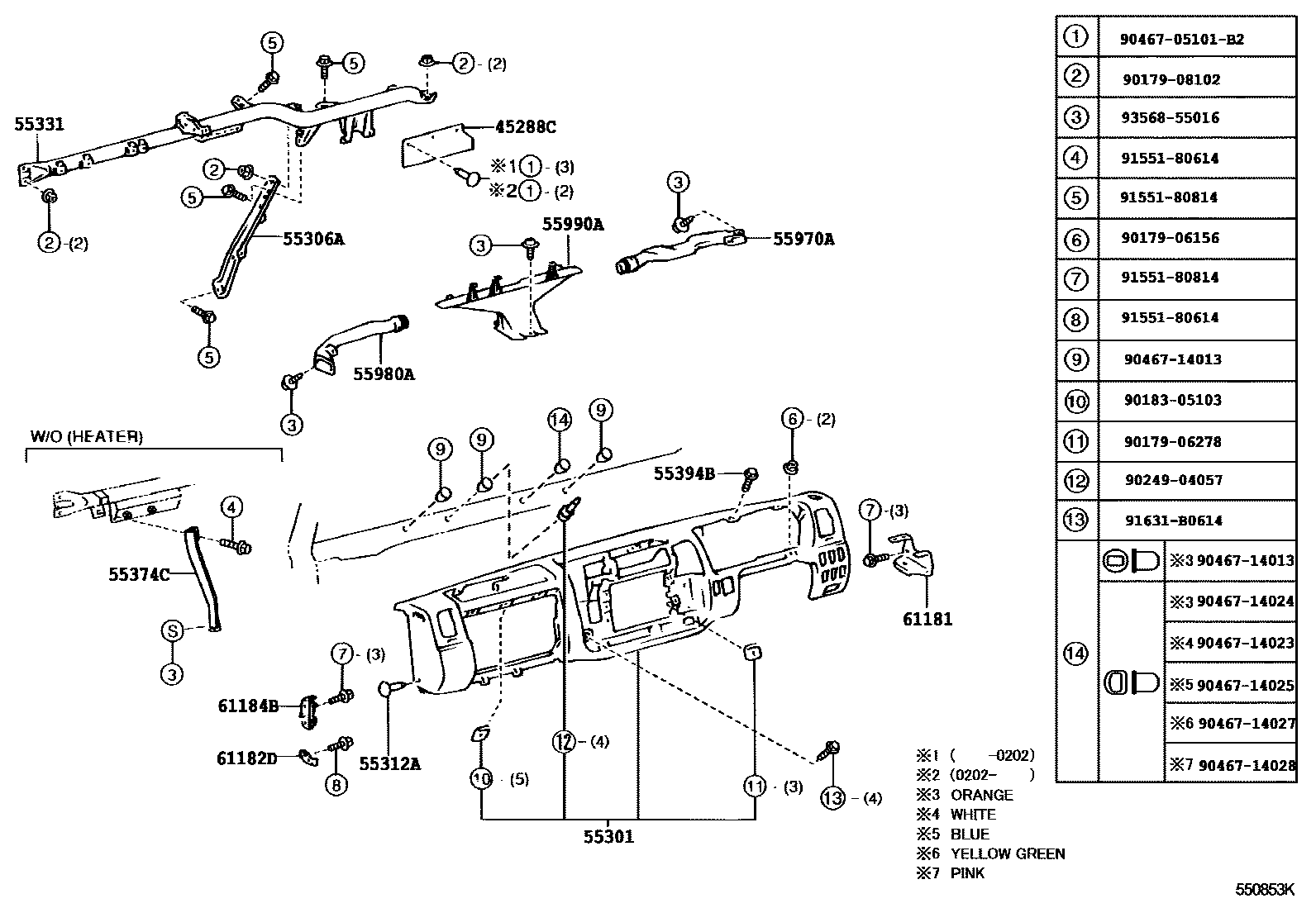

45288CPLATE, STEERING COLUMN COVER

main45288-37010iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main45288-37020iKDY221,231,LY23#201610-201707

sub45288-37021

main45288-37021iKDY221,231,LY23#201708-201810

sub45288-37022

main45288-37022iKDY221,231,LY23#201811-202111

55301PANEL SUB-ASSY, INSTRUMENT

main55301-25020-B0iKDY220,230,250,LY22#,23#..RHD200107-200408

MD.CHARCOAL,TRIM1#

sub55301-37011

main55301-37011-B0iKDY22#,23#,25#,LY22#,23#..RHD200408-200909

MD.CHARCOAL,TRIM1#

sub55301-37012

main55301-37012-B0iKDY221,231,251,LY225,23#..RHD200910-201505

MD.CHARCOAL,TRIM1#

main55301-37012-B1iKDY221,231,LY225,23#..RHD201505-201610

GRAY,TRIM1#

main55301-37030-B0iKDY22#,23#,25#,26#,LY225,235..LHD200107-200909

MD.CHARCOAL,TRIM1#

sub55301-37031

main55301-37031-B0iKDY221,231,251,261,LY225,235..LHD200910-201505

MD.CHARCOAL,TRIM1#

sub55301-37032

main55301-37031-B1iLY225,235..LHD201505-201610

GRAY,TRIM1#

sub55301-37032

main55301-37090-C0iKDY221,231,LY23#201610-202111

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-37011iKDY22#,23#,25#,LY230..RHD..(EUR,SA)200108-201610

main55306-37011iLY235..RHD..ST;LY22#,230..RHD..(ARL,GEN)200107-201610

W(HEATER)

main55306-37021iKDY22#,23#,25#,26#..LHD200108-201502

main55306-37021iLY225,235..LHD200107-201610

W(HEATER)

main55306-37071iKDY221,231,LY23#..RHD201610-201805

sub55306-37072

main55306-37072iKDY221,231,LY23#..RHD201806-201911

sub55306-37073

main55306-37073iKDY221,231,LY23#..RHD201912-202111

sub55306-37074

main55306-37091iLY235..LHD201610

main55351-25030iKDY221,231,LY225,235..RHD..GEN200107-201610

main55351-25040iLY225,235..LHD200107-201610

55312PANEL, INSTRUMENT, LOWER

main55312-37011-B0iKDY221,231,LY23#..RHD201610-202111

GRAY,TRIM1#

main55312-37061-B0iLY235..LHD201610

GRAY,TRIM1#

55312ACLIP, INSTRUMENT PANEL

main90467-07041-B8iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

sub90467-07041

main90467-07041-P5iKDY221,231,LY225,23#201505

GRAY,TRIM1#

sub90467-07041

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-25020iKDY221,231,LY225,235..RHD..GEN200107-201610

main55330-25030iLY225,235..LHD200107-201610

main55330-25040iLY225,235..LHD200107-200809

W(HEATER)

main55330-25040iKDY22#,23#,25#,26#..LHD200108-201502

main55330-37024iKDY220,230,250,LY230..RHD..(EUR,SA)200108-200608

sub55330-37025

main55330-37024iLY235..RHD..ST;LY22#,230..RHD..(ARL,GEN)200107-200608

W(HEATER)

sub55330-37025

main55330-37025iLY225,235..RHD200609-201610

W(HEATER)

main55330-37043iLY225,235..LHD200810-201610

W(HEATER)

main55330-37210iKDY221,231201610

main55330-37220iLY23#..RHD201610-202111

main55330-37230iLY235..LHD201610-201907

sub55330-37231

main55330-37231iLY235..LHD201908

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-25010iKDY221,231,LY225,235..RHD..GEN200107

main55374-25020iLY225,235..LHD200107

55394BBOLT, INSTRUMENT PANEL

main55394-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

55970ADUCT ASSY, SIDE DEFROSTER, RH

main55971-37050iLY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD200107

main55972-37060iKDY22#,23#,25#,26#,LY225,235..LHD200107

55980ADUCT ASSY, SIDE DEFROSTER, LH

main55971-37060iKDY22#,23#,25#,26#,LY225,235..LHD200107

main55972-37050iLY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD200107

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-37041iLY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD200107

main55990-37060iKDY22#,23#,25#,26#,LY225,235..LHD200107

61181BRACKET, INSTRUMENT PANEL SIDE

main55707-37010iKDY22#,23#,25#,LY22#,23#..RHD200107

main55707-37020iKDY22#,23#,25#,26#,LY225,235..LHD200107

61182DBRACKET, INSTRUMENT PANEL SIDE

main61181-37040iKDY22#,23#,25#,LY22#,23#..RHD200107

main61181-37060iKDY22#,23#,25#,26#,LY225,235..LHD200107

61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH

main61184-37010iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main61184-37080iLY235..LHD201610

main61184-37090iKDY221,231,LY23#..RHD201610-202111

9017906156

main90179-06156

9017906278

main90179-06278

9017908102

main90179-08102

9018305103

main90183-05103

9024904057

main90249-04057

9046705101B2

main90467-05101B2

9046714013

main90467-14013

9046714023

main90467-14023

9046714024

main90467-14024

9046714025

main90467-14025

9046714027

main90467-14027

9046714028

main90467-14028

9155180614

main91551-80614

9155180814

main91551-80814

91631B0614

main91631-B0614

9356855016

main93568-55016

30 parts on this diagram · 16 diagrams in section
