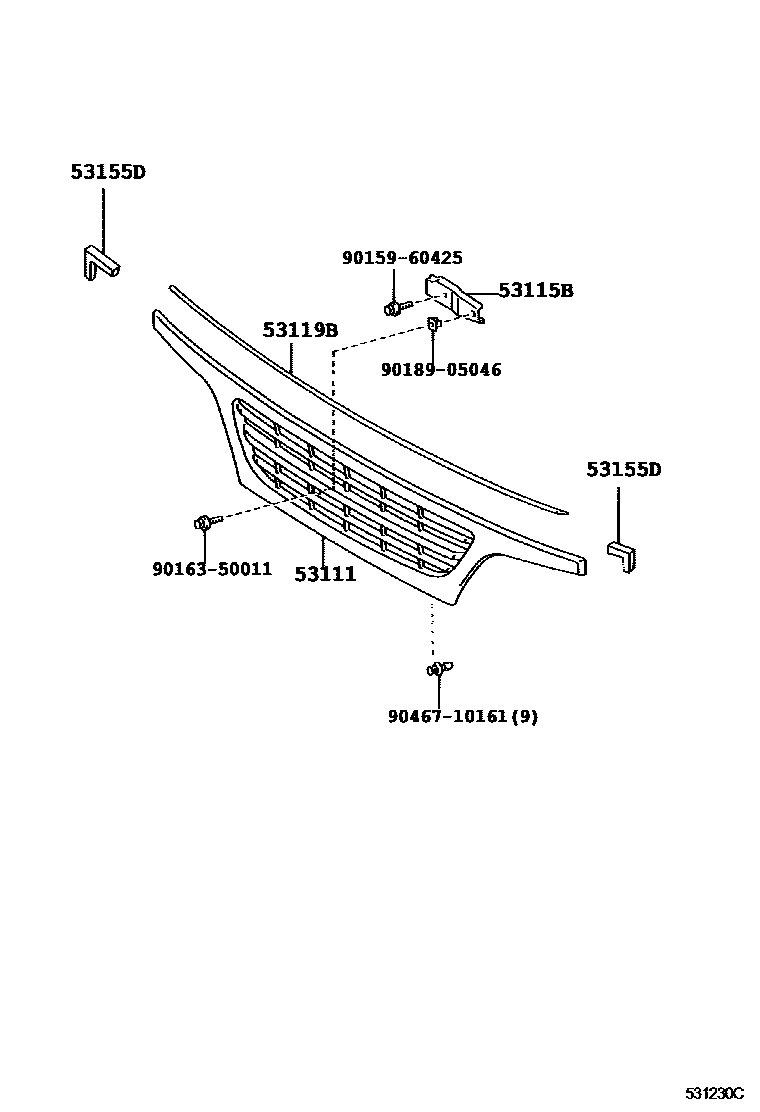

RADIATOR GRILLE

0001 1GRILLE=WITHOUT(EMBLEM) 0002 1GRILLE=WITH(EMBLEM) 0003 1

53111GRILLE, RADIATOR

main53111-25060-A0iKDY22#,23#,25#,26#200108-200711

WHITE,058

main53111-25060-B0iKDY22#;KDY23#,25#,26#..15T200108-200711

SILVER ME.,199

main53111-25060-D0iKDY22#,23#,25#,26#..EUR200108-200711

RED,3H7

main53111-25060-D1iKDY22#,23#,25#,26#..EUR200108-200711

RED,391

main53111-25060-F0iKDY22#,23#,25#,26#..EUR200108-200711

YELLOW,541

main53111-25060-G0iKDY22#,23#,25#,26#..EUR200108-200711

GREEN,6A9

main53111-25060-H0iLY235..WT200108-200711

TURQUOISE,766

main53111-25060-J0iLY235..WT;LY220,230..ARL200108-200711

BLUE,8P0

main53111-37220-A0iLY22#,23#200107-200405

WHITE,058

sub53111-25080

sub53141-25010

sub93560-15010

main53111-37220-B0iLY235..WT200107-200405

SILVER ME,199

sub53111-25080

sub53141-25010

sub93560-15010

main53111-37220-H0iLY225,235200107-200405

TURQUOISE,766

sub53111-25080

sub53141-25010

sub93560-15010

main53111-37220-J1iLY22#,23#200107-200405

BLUE,8P0

sub53111-25080

sub53141-25010

sub93560-15010

main53111-37710-A0iKDY221,231,251,261..EUR200709-201610

WHITE,058

main53111-37710-B0iKDY221..EUR;KDY231,251,261..15T..IV3200711-201502

SILVER ME.,199

main53111-37710-D0iKDY221,231,251,261..EUR200711-201502

RED,3H7

main53111-37710-D1iKDY221,231,251,261..EUR200711-201502

RED,391

main53111-37710-F0iKDY221,231,251,261..EUR200711-201502

YELLOW,541

main53111-37710-G0iKDY221,231,251,261..EUR200711-201502

GREEN,6A9

main53111-37710-H0iKDY221,231,251,261..EUR200711-201502

TURQUOISE,766

main53111-37710-J0iKDY221,231,251,261..EUR200709-201610

BLUE,8P0

main53111-37A01-A0iKDY221,231,LY23#201610-202111

WHITE,058

main53111-37A01-B1iKDY221,231201610-202111

SILVER ME.,199

main53111-37A01-J1iKDY221,231,LY23#201610-202111

BLUE,8P0

main53114-37010iKDY221,231,251,261..LHD..IV3200709-201610

NO PAINT REQ.,RESIN TYPE (LESS COLOR)

53115BBRACKET, RADIATOR GRILLE

main53115-37050iLY235..ST;LY225,230..GEN,SA200107-200711

main53115-37080iKDY221,231,LY23#201610-202111

53119BPROTECTOR, RADIATOR GRILLE

main53119-37020iLY235..ST;LY225,230..GEN,SA200107-200711

main53119-37080-B0iKDY221,231..GEN200709-201610

GRAY,058 ,8P0

main53119-37080-B0iKDY221,231..GEN200709-201610

GRAY,058 ,199 ,8P0

main53119-37080-B0iKDY221..EUR;KDY231,251,261..15T..IV3200711-201502

GRAY,058 ,391 ,3H7 ,541 ,6A9 ,766 ,8P0

main53119-37080-B0iKDY231,251,261..10T,125T200711-201502

GRAY,058 ,199 ,391 ,3H7 ,541 ,6A9 ,766 ,8P0

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-37010iLY235..ST;LY225,230..GEN,SA200107-200711

9015960425

main90159-60425

9016350011

main90163-50011

9018905046

main90189-05046

9046710161

main90467-10161

8 parts on this diagram · 3 diagrams in section
