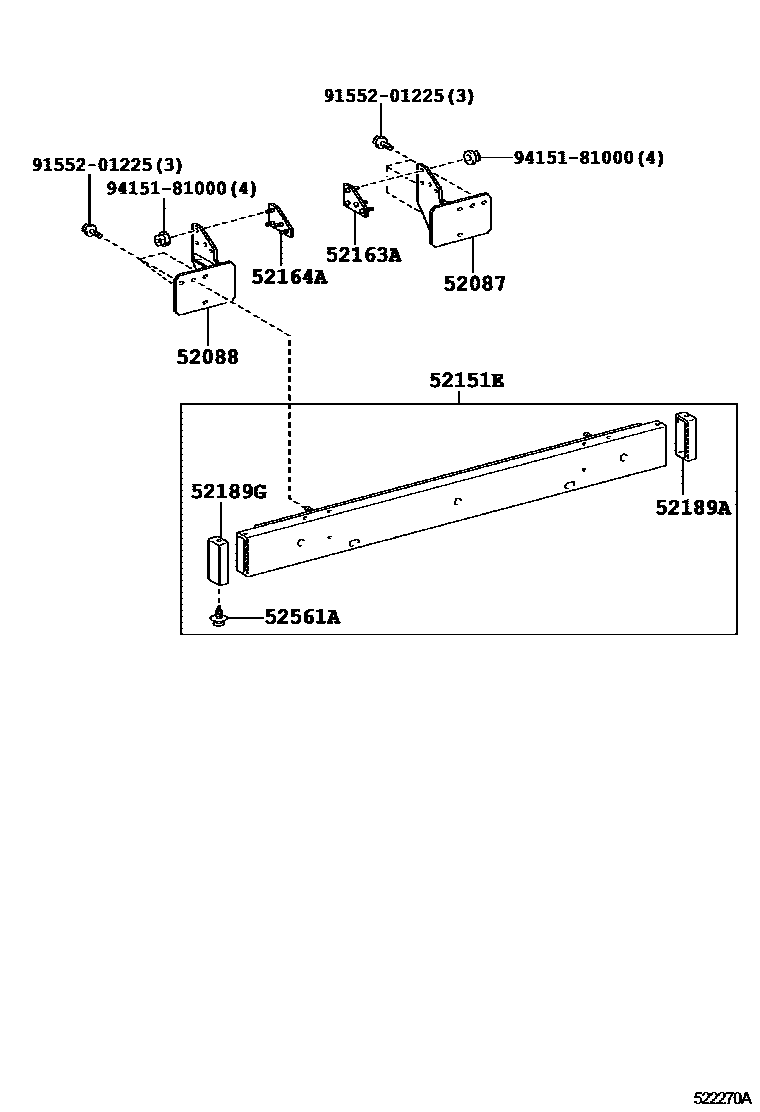

REAR BUMPER & BUMPER STAY

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-25040iKDY221,231..EUR..CBU201008-201502

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52152-25010iKDY221,231..EUR..CBU201008-201502

52151EBAR, REAR BUMPER

main52105-25030iKDY221,231..EUR..CBU201008-201502

NO PAINT REQ.

52163APLATE, REAR BUMPER, RH

main52163-25010iKDY221,231..EUR..CBU201008-201502

52164APLATE, REAR BUMPER, LH

main52164-25010iKDY221,231..EUR..CBU201008-201502

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-37050iKDY221,231..EUR..CBU¥1,410201008-201502

52189GPROTECTOR, REAR BUMPER ARM EDGE, LH

main52189-37050iKDY221,231..EUR..CBU¥1,410201008-201502

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-07043-C0iKDY221,231..EUR..CBU201008-201502

BLACK

sub90467-07043¥60

9155201225

main91552-01225¥160

9415181000

main94151-81000¥100

10 parts on this diagram · 1 diagram in section
