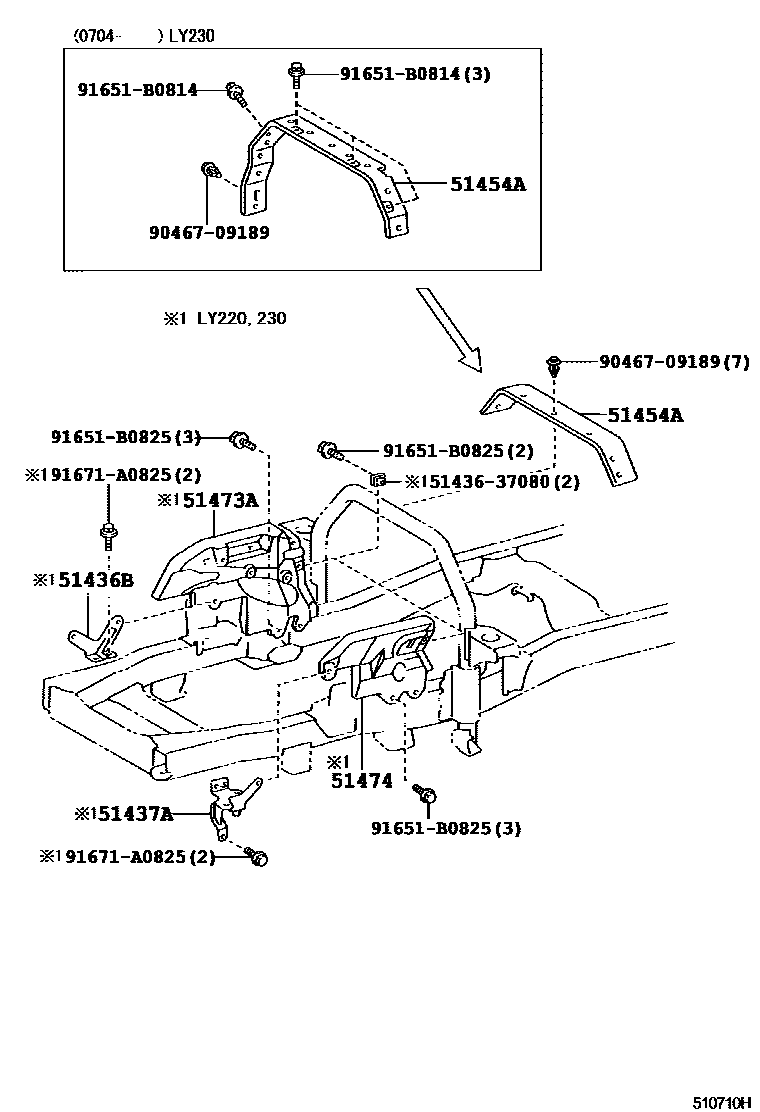

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-25030iKDY22#,23#,25#,26#,LY220,230200107-202111

51437ABRACKET, ENGINE SIDE COVER, NO.1 LH

main51047-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

sub51047-25040

sub94151-80800

51454ASILENCER, ENGINE REAR COVER

main51454-25030iKDY230,250,260..15T;KDY220,LY22#,23#..ARL,EUR,GEN200107-200704

main51480-25010iKDY221,LY230..EUR,SA;KDY231,251,261..15T..IV3200704-201007

sub51480-25011

main51480-25011iKDY221,LY230..EUR,SA;KDY231,251,261..15T..IV3201008-202011

main51480-25020iKDY221,231..GEN200704-201007

sub51480-25021

main51480-25021iKDY221,231..GEN201008

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-25050iKDY220,230,250,260,LY220,230200107-200607

sub51473-25060

main51473-25060iKDY22#,23#,25#,26#,LY230200608-202111

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-25040iKDY22#,LY220,230;KDY23#,25#,26#..15T200107-202111

main51474-25050iKDY23#,25#,26#..10T,125T200108-201502

5143637080PROTECTOR, ENGINE FRONT SUPPORT

main51436-37080

9046709189

main90467-09189

91651B0814

main91651-B0814

91651B0825

main91651-B0825

91671A0825

main91671-A0825

10 parts on this diagram · 2 diagrams in section
