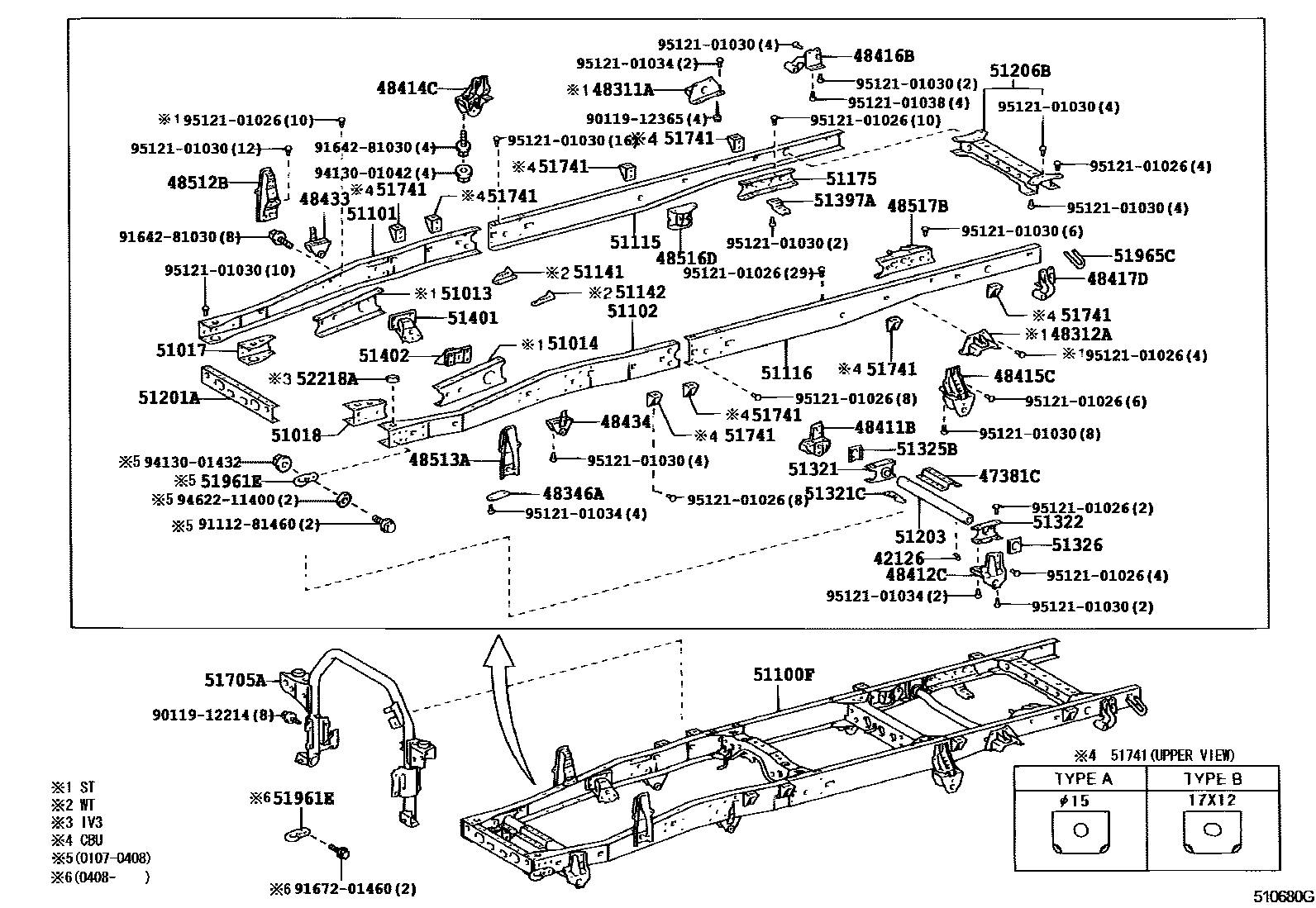

FRAME

0001 1 0002 1 0004 1

42126ATTACHMENT, BRAKE 3 WAY

main42126-37020iLY235¥820200107-201609

47381CBRACKET, TUBE CLAMP

main47381-37060iLY225¥3,950200107-201609

48311ABRACKET, HOLLOW SPRING, RH

main48311-25060iLY230..SA¥4,090200107-202111

48312ABRACKET, HOLLOW SPRING, LH

main48311-25060iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR¥4,090200107-202111

48346ASTOPPER, BUMPER, FR

main48346-25180iLY225¥1,700200107-201609

48411BBRACKET, SPRING, NO.1 RH

main48411-25200iLY225¥2,680200107-201609

48412CBRACKET, SPRING, NO.1 LH

main48412-25130iLY225¥2,680200107-201609

48414CBRACKET, SPRING, NO.3 RH

main48414-25090iLY230..SA¥4,270200107-202111

main48414-25110iKDY221,231,LY235..WT..CBU¥2,840200107

48415CBRACKET, SPRING, NO.3 LH

main48414-25090iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR¥4,270200107-201008

main48414-25110iKDY221,231,LY235..WT..CBU¥2,840200107

48416BBRACKET, SPRING, NO.4 RH

main48405-25030iKDY221,231,LY235..WT..CBU¥1,400200107

main48416-25110iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR¥3,290200107-202111

48417DBRACKET, SPRING, NO.4 LH

main48405-25030iKDY221,231,LY235..WT..CBU¥1,400200107

main48417-25090iLY230..SA¥3,290200107-202111

48433BRACKET, SPRING, NO.2 RH

main48403-25020iLY225¥2,820200107-201609

48434BRACKET, SPRING, NO.2 LH

main48403-25020iLY235¥2,820200107-201609

48512BBRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48501-25040iLY235¥6,000200107-201609

48513ABRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48502-25030iLY225¥4,500200107-201609

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-25070iLY230..SA¥3,380200107-202111

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main51016-25050iLY230..SA¥4,960200107-202111

51013CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH

main51013-25020iKDY220,230..LHD¥14,500200107-202111

main51131-25140iLY225,235..ST¥4,860200107

51014CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH

main51014-25060iLY230..SA¥15,100200107-202111

main51132-25140iLY225,235..ST¥4,860200107

51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

main51017-25020iLY225..RHD¥6,800200107-201609

main51017-25030iLY225..LHD¥5,800200107-201609

51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

main51018-25010iLY225..RHD¥5,700200107-201609

main51018-25020iLY235..LHD¥6,600200107-201609

51100FFRAME SUB-ASSY

main51001-2E010iLY220¥263,000200107-200408

sub51001-2E011¥263,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E011iLY220¥263,000200408-200412

main51001-2E020iKDY220..RHD¥263,000200108-200408

sub51001-2E021¥263,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E021iKDY22#..RHD..EUR¥263,000200408-201008

sub51001-2E022¥263,000

main51001-2E022iKDY221..RHD..EUR¥263,000201008-201502

main51001-2E061iKDY221..GEN¥233,000200609-201008

sub51001-2E490¥233,000

main51001-2E062iKDY221..GEN¥161,000201008

main51001-2E090iKDY220..LHD¥263,000200108-200408

sub51001-2E091¥263,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E091iKDY22#..LHD¥263,000200408-201008

sub51001-2E092

main51001-2E092iKDY221..LHD201008-201502

main51001-2E100iLY230¥263,000200107-200408

sub51001-2E101¥263,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E101iLY230¥263,000200408-201008

sub51001-2E102¥182,000

main51001-2E102iLY230¥182,000201008-202111

main51001-2E110iKDY230..RHD¥263,000200108-200408

sub51001-2E111¥263,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E111iKDY23#..RHD..IV3¥263,000200408-201008

sub51001-2E630¥263,000

main51001-2E112iKDY231..RHD..IV3¥263,000201008-201502

main51001-2E151iKDY231..GEN¥233,000200609-201008

sub51001-25A10¥263,000

main51001-2E152iKDY231..GEN¥161,000201008

main51001-2E240iKDY230..10T,125T¥263,000200108-200408

sub51001-2E241¥263,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E241iKDY23#..10T,125T¥263,000200408-201008

sub51001-2E242

main51001-2E242iKDY231..10T,125T201008-201502

main51001-2E250iKDY250..RHD¥321,000200108-200408

sub51001-2E251¥320,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E251iKDY25#..RHD¥320,000200408-201008

sub51001-2E252

main51001-2E252iKDY251..RHD201008-201502

main51001-2E260iKDY250..LHD..15T¥321,000200108-200408

sub51001-2E261¥320,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E261iKDY25#..LHD..15T¥320,000200408-201008

sub51001-2E262

main51001-2E262iKDY251..LHD..15T201008-201502

main51001-2E270iKDY250..125T¥321,000200108-200408

sub51001-2E271¥320,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E271iKDY25#..125T¥320,000200408-201008

sub51001-2E272

main51001-2E272iKDY251..125T201008-201502

main51001-2E280iKDY260..15T¥321,000200108-200408

sub51001-2E281¥320,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E281iKDY26#..15T¥320,000200408-201008

sub51001-2E282

main51001-2E282iKDY261..15T201008-201502

main51001-2E290iKDY260..125T¥321,000200108-200408

sub51001-2E291¥320,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E291iKDY26#..125T¥320,000200408-201008

sub51001-2E292

main51001-2E292iKDY261..125T201008-201502

main51001-2E320iLY225..RHD..CBU¥263,000200107-200408

sub51001-2E321¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E321iLY225..RHD..CBU¥263,000200408-201008

sub51001-2E322

main51001-2E322iLY225..RHD..CBU201008-201609

main51001-2E330iLY225..LHD..CBU¥263,000200107-200408

sub51001-2E331¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E331iLY225..LHD..CBU¥263,000200408-201008

sub51001-2E332

main51001-2E332iLY225..LHD..CBU201008-201609

main51001-2E340iLY235..RHD..ST..CBU¥263,000200107-200408

sub51001-2E341¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E341iLY235..RHD..ST..CBU¥263,000200408-201008

sub51001-2E342

main51001-2E342iLY235..RHD..CBU201008

main51001-2E350iLY235..LHD..CBU¥263,000200107-200408

sub51001-2E351¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E351iLY235..LHD..CBU¥263,000200408-201008

sub51001-2E352

main51001-2E352iLY235..LHD..CBU201008

main51001-2E360iLY235..WT¥233,000200107-200408

sub51001-2E361¥233,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E361iLY235..WT¥233,000200408-200609

main51001-2E510iLY225..RHD..IV3¥263,000200107-200408

sub51001-2E511¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E511iLY225..RHD..IV3¥263,000200408-201008

sub51001-2E512

main51001-2E512iLY225..RHD..IV3201008-201609

main51001-2E520iLY225..LHD..IV3¥263,000200107-200408

sub51001-2E521¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E521iLY225..LHD..IV3¥263,000200408-201008

sub51001-2E522

main51001-2E522iLY225..LHD..IV3201008-201609

main51001-2E530iLY235..RHD..IV3¥263,000200107-200408

sub51001-2E531¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E531iLY235..RHD..IV3¥263,000200408-201008

sub51001-2E532

main51001-2E532iLY235..RHD..IV3201008

main51001-2E540iLY235..LHD..IV3¥263,000200107-200408

sub51001-2E541¥263,000

sub51961-25081¥2,060

sub91112-81460¥390

sub94130-01432¥110

sub94622-11400¥240

main51001-2E541iLY235..LHD..IV3¥263,000200408-201008

sub51001-2E542

main51001-2E542iLY235..LHD..IV3201008

main51001-2E550iKDY230..LHD..15T¥263,000200108-200408

sub51001-2E551¥263,000

sub51961-25041¥2,480

sub91672-01445¥240

sub94622-11400¥240

main51001-2E551iKDY23#..LHD..15T¥263,000200408-201008

sub51001-2E552

main51001-2E552iKDY231..LHD..15T201008-201502

51101RAIL, FRONT FRAME SIDE, RH

main51101-25010iLY235..WT¥71,300200107-200609

main51101-25020iKDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,GEN)¥7,900200107-202111

main51101-25030iKDY220,230..LHD¥11,700200108-201502

main51101-25040iLY225,235..ST¥49,500200107

51102RAIL, FRONT FRAME SIDE, LH

main51102-25010iLY235..WT¥71,300200107-200609

main51102-25020iKDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,GEN)¥8,100200107-202111

main51102-25030iKDY220,230..LHD¥11,500200108-201502

main51102-25040iLY225,235..ST¥49,500200107

51115RAIL, FRAME SIDE, REAR RH

main51115-25070iKDY25#,26#¥63,400200108-201502

main51115-25090iKDY22#,LY22#¥44,000200107

main51115-25100iLY230..SA¥49,500200107-202111

51116RAIL, FRAME SIDE, REAR LH

main51116-25010iKDY25#,26#¥63,400200108-201502

main51116-25030iKDY22#,LY22#¥44,000200107

main51116-25040iLY230..SA¥49,500200107-202111

51141REINFORCEMENT, SIDE RAIL, RH

main51142-25020iLY235..WT¥1,480200107-200609

51142REINFORCEMENT, SIDE RAIL, LH

main51142-25020iLY235..WT¥1,480200107-200609

51175REINFORCEMENT, SIDE RAIL, NO.3 RH

main51175-25010iLY230..SA¥3,470200107-202111

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-25100iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,GEN¥4,060200107-202111

main51211-25110iLY225,235¥4,060200107

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-25150iLY230..SA¥6,200200107-202111

main51221-37050iLY225,235¥4,870200107

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-25140iKDY25#,26#¥16,000200107-202109

sub51206-25160¥13,000

main51206-25150iKDY221,231,LY235..WT..CBU¥14,700200107-202109

sub51206-25170¥12,500

main51206-25160iLY230¥13,000202110-202111

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-37020iLY225¥2,480200107-201609

51321CBRACKET, FRAME NO.2 CROSSMEMBER, RH

main51321-37030iLY225¥450200107-201609

51322GUSSET, CROSSMEMBER, NO.2 LH

main51322-37020iLY225¥2,480200107-201609

51325BRETAINER, FRAME NO.2 CROSSMEMBER, RH

main51325-37030iLY225¥990200107-201609

51326RETAINER, FRAME NO.2 CROSSMEMBER, LH

main51326-37020iLY225¥990200107-201609

51397ABRACKET, EXHAUST PIPE CLAMP, NO.3

main51397-25030iLY230..SA¥1,170200107-202111

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-25170iLY225,235..ST¥4,720200107

main51401-25180iLY235..WT¥7,700200107-200609

main51401-25190iLY230..SA¥3,700200107-202111

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-25070iLY225,235..ST¥6,400200107

main51402-25080iLY235..WT¥10,200200107-200609

main51402-25090iLY230..SA¥4,190200107-202111

51705ABRACKET SUB-ASSY, CAB MOUNTING, NO.3

main51705-25050iKDY22#,LY220,230;KDY23#,25#,26#..15T¥45,200200107-200704

sub51705-25051¥45,200

sub51480-25010¥8,500

sub51480-25020¥9,000

sub51480-25030¥8,200

sub90467-09189¥440

sub91651-B0814¥120

main51705-25051iKDY221,LY230;KDY231,251,261..15T¥45,200200704-200812

sub51705-25090¥45,200

main51705-25052iKDY221,LY230;KDY231,251,261..15T¥37,700200812-202111

main51705-25060iKDY23#,25#,26#..10T,125T¥43,700200108-200812

sub51705-25100¥43,700

main51705-25061iKDY231,251,261..10T,125T¥30,300200812-201502

main51705-25080iLY225,235¥33,700200107

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-25060iKDY25#,26#..15T¥910200107-202111

main51741-25060iKDY22#,23#,LY220,230..ARL,EUR,GEN¥910200107

TYPE A:REFER ILLUST.

main51741-25070iLY225,235..CBU¥990200107

TYPE B:REFER ILLUST.

51961EHOOK, FRONT

main51961-25040iKDY220,230,250,260,LY220,230¥2,950200107-200408

main51961-25041iKDY22#,23#,25#,26#,LY220,230¥2,480200408-202111

main51961-25080iLY225,235¥2,950200107-200408

main51961-25081iLY225,235¥2,060200408

51965CHOOK, REAR

main51965-25040iLY230¥1,830201008-202111

main51965-26031iLY235..WT;KDY220,230,25#,26#,LY220,230..ARL,EUR¥2,650200107-201502

52218AHOLDER, CAB MOUNT CUSHION, NO.1

main52218-25030iLY235..IV3¥430200107-201609

9011912214

main90119-12214¥310

9011912365

main90119-12365¥240

9111281460

main91112-81460¥390

9164281030

main91642-81030¥170

9167201460

main91672-01460¥310

9413001042

main94130-01042¥90

9413001432

main94130-01432¥110

9462211400

main94622-11400¥240

9512101026

main95121-01026¥270

9512101030

main95121-01030¥360

9512101034

main95121-01034¥390

9512101038

main95121-01038¥240

57 parts on this diagram · 3 diagrams in section
