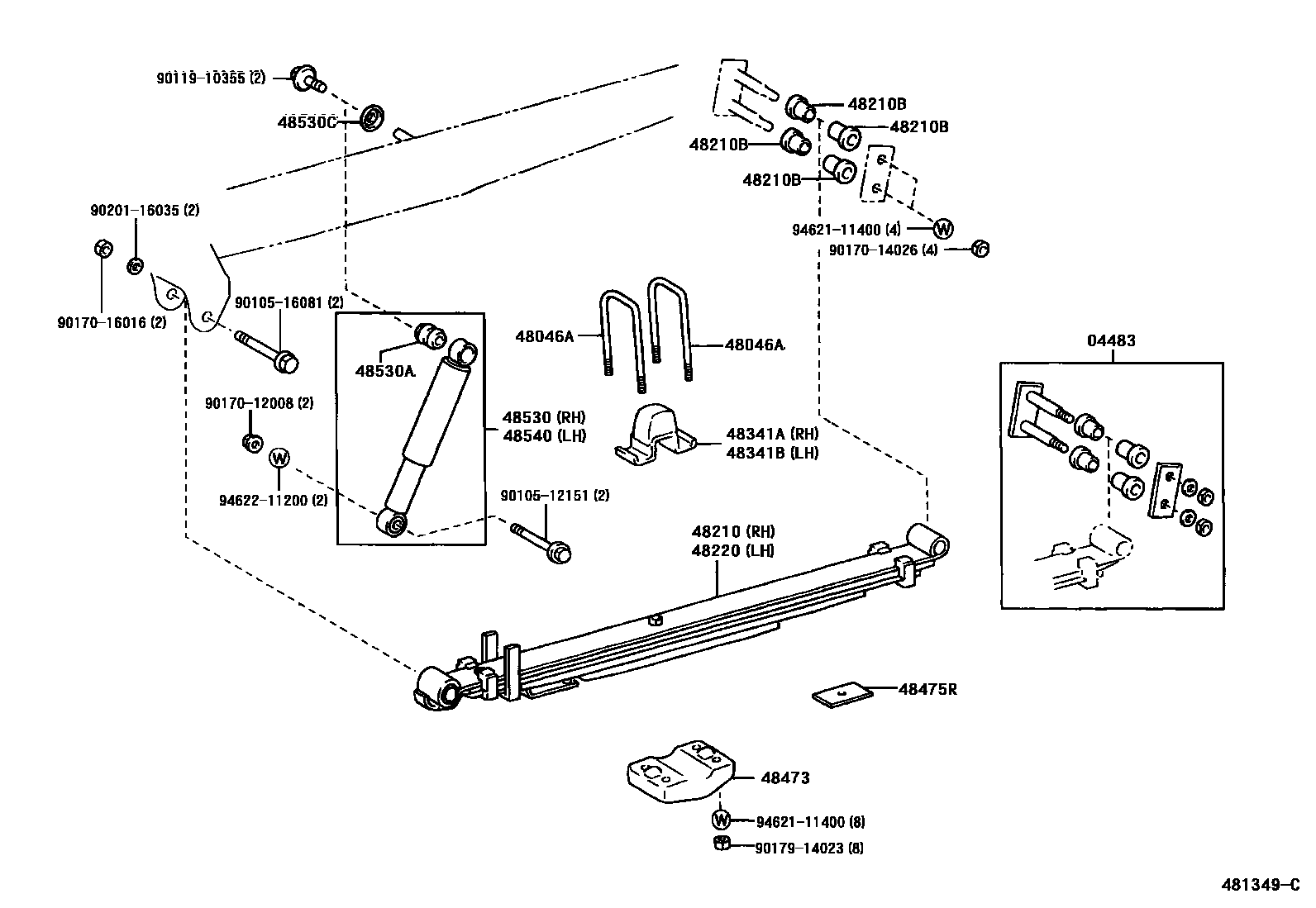

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 15-LEAF 0007 13-LEAF 0008 13-LEAF 0009 13-LEAF 0010 14-LEAF

04483SHACKLE KIT, REAR SPRING

main04483-25030×2iLY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-202111

main04483-25040×2iKDY221,231..GEN200609

48046ABOLT, U(FOR REAR SPRING)

main90117-14014×4iLY235..WT200107-200609

L=170

main90117-14035×2iKDY230..ST;KDY231..CBU;KDY22#,LY220;KDY231..ST..IV3200107

L=180,W(PNC 48475R)

main90117-14036×2iLY235..ST200107

L=190,W(PNC 48475R)

main90117-16007×4iKDY23#,25#,26#,LY230..WT..IV3200107-202111

L=225

48210SPRING ASSY, REAR RH

main48210-25A00iKDY231..GEN200609

4-LEAF

main48210-2E240iLY225200107-201609

5-LEAF

main48210-2E250iLY235..ST200107

5-LEAF

main48210-2E280iKDY221..GEN200609

4-LEAF

main48210-2E340iKDY23#,25#,26#,LY230..WT..IV3200107-202111

3-LEAF

main48210-2E430iKDY22#,23#,LY220..ST200107-201502

3-LEAF

main48210-2E450iLY235..WT200107-200609

3-LEAF

48210BBUSH(FOR REAR SPRING PIN)

main90385-18023×8iLY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-202111

48220SPRING ASSY, REAR LH

main48210-25A00iKDY231..GEN200609

4-LEAF

main48210-2E240iLY225200107-201609

5-LEAF

main48210-2E250iLY235..ST200107

5-LEAF

main48210-2E280iKDY221..GEN200609

4-LEAF

main48210-2E340iKDY23#,25#,26#,LY230..WT..IV3200107-202111

3-LEAF

main48210-2E430iKDY22#,23#,LY220..ST200107-201502

3-LEAF

main48210-2E530iLY235..WT200107-200609

3-LEAF

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-25050iKDY22#,23#,LY22#..ST200107-201609

main48341-25070iLY235..ST200107

main48341-25090iKDY23#,25#,26#,LY230..WT..IV3200107-202111

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-25050iKDY22#,23#,LY22#..ST200107-201609

main48341-25070iLY235..ST200107

main48341-25090iKDY23#,25#,26#,LY230..WT..IV3200107-202111

48473SEAT, REAR SPRING U BOLT

main48046-25090×2iKDY221,231,LY235..WT..CBU200107

main48046-25110×2iKDY23#,25#,26#,LY230..WT..IV3200107-202111

main48473-25080×2iKDY22#,23#,LY22#..ST200107-201609

main48473-25130×2iLY235..ST200107

48475RPLATE, DISTANCE(FOR REAR)

main48475-25010iLY235..WT200107-200609

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29535iLY225200107-201609

MARK 48531-25210

main48531-29745iKDY221,231,LY235..WT..CBU200107

MARK 48531-25230

main48531-80228iLY235..ST;KDY23#,25#,26#,LY230..WT..IV3200107-202111

MARK 48531-25250

main48531-80231iKDY23#..ST200108-201502

MARK 48531-25270

main48531-80232iKDY22#,LY220..ST200107-201502

MARK 48531-25280

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16010×4iKDY221,231,LY235..WT..CBU200107

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-202111

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29535iLY225200107-201609

MARK 48531-25210

main48531-29745iKDY221,231,LY235..WT..CBU200107

MARK 48531-25230

main48531-80228iLY235..ST;KDY23#,25#,26#,LY230..WT..IV3200107-202111

MARK 48531-25250

main48531-80231iKDY23#..ST200108-201502

MARK 48531-25270

main48531-80232iKDY22#,LY220..ST200107-201502

MARK 48531-25280

9010512151

main90105-12151

9010516081

main90105-16081

9011910355

main90119-10355

9017012008

main90170-12008

9017014026

main90170-14026

9017016016

main90170-16016

9017914023

main90179-14023

9020116035

main90201-16035

9462111400

main94621-11400

9462211200

main94622-11200

23 parts on this diagram · 10 diagrams in section
