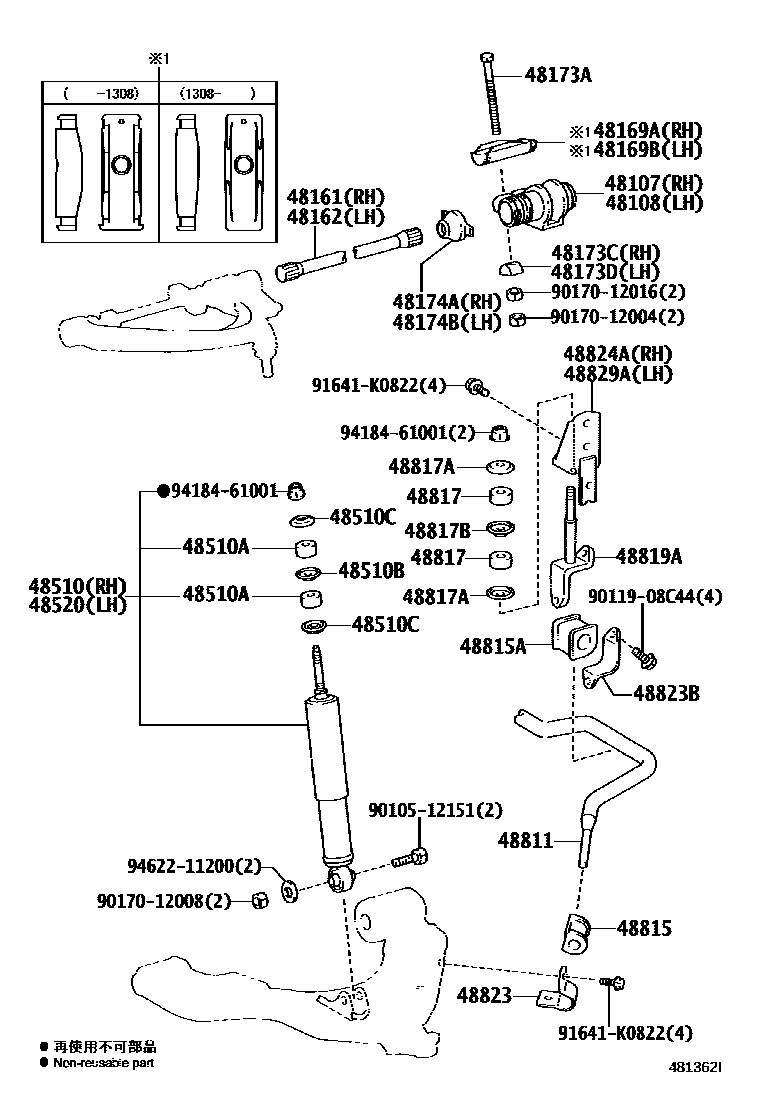

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 14-LEAF

48107ARM SUB-ASSY, ANCHOR, RH

main48107-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

48108ARM SUB-ASSY, ANCHOR, LH

main48108-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

48161SPRING, TORSION BAR, RH

main48161-25020iKDY23#..ST;KDY221..GEN200108

main48161-25030iKDY231..WT;KDY22#,230,25#,26#,LY220,230..(125T,15T)..(ARL,EUR,SA)200107-202111

48162SPRING, TORSION BAR, LH

main48162-25020iKDY23#..ST;KDY221..GEN200108

main48162-25030iKDY231..WT;KDY22#,230,25#,26#,LY220,230..(125T,15T)..(ARL,EUR,SA)200107-202111

48169ASWIVEL, ANCHOR ARM, RH

main48169-25010iKDY22#,23#,25#,26#,LY220,230200107-201308

sub48169-25020

main48169-25020iKDY221,231,251,261,LY230201308-202111

48169BSWIVEL, ANCHOR ARM, LH

main48169-25010iKDY22#,23#,25#,26#,LY220,230200107-201308

sub48169-25020

main48169-25020iKDY221,231,251,261,LY230201308-202111

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12197iKDY22#,23#,25#,26#,LY220,230200107-202111

48173CSEAT, ANCHOR ARM ADJUSTER, RH

main48173-27010iKDY22#,23#,25#,26#,LY220,230200107-202111

48173DSEAT, ANCHOR ARM ADJUSTER, LH

main48173-27010iKDY22#,23#,25#,26#,LY220,230200107-202111

48174ACOVER, TORSION BAR DUST, RH

main48174-34010iKDY22#,23#,25#,26#,LY220,230200107-202111

48174BCOVER, TORSION BAR DUST, LH

main48174-34010iKDY22#,23#,25#,26#,LY220,230200107-202111

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-29845iKDY23#..ST;KDY221..GEN200108

MARK 48511-25210

main48511-80090iKDY231..WT;KDY22#,230,25#,26#,LY220,230..(125T,15T)..(ARL,EUR,SA)200107-202111

MARK 48511-25220

main48511-80091iLY235..ST200107

MARK 48511-25250

main48511-80092iLY225;LY235..WT200107-201609

MARK 48511-25240

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01031iKDY231,LY230..GEN,SA200107-202111

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iKDY231,LY230..GEN,SA200107-202111

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02180iKDY231,LY230..GEN,SA200107-202111

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-29845iKDY23#..ST;KDY221..GEN200108

MARK 48511-25210

main48511-80090iKDY231..WT;KDY22#,230,25#,26#,LY220,230..(125T,15T)..(ARL,EUR,SA)200107-202111

MARK 48511-25220

main48511-80091iLY235..ST200107

MARK 48511-25250

main48511-80092iLY225;LY235..WT200107-201609

MARK 48511-25240

48811BAR, STABILIZER, FRONT

main48811-25040iKDY220,230,LY220..ST200107-200508

sub48811-25041

sub48815-25060

main48811-25041iKDY22#;KDY23#..ST200508

main48811-25050iKDY230,250,260,LY230..WT200107-200508

sub48811-25051

sub48815-25060

main48811-25051iKDY23#,25#,26#,LY230..WT200508-202111

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-25050iKDY220,230,250,260,LY220,230200107-200507

sub48815-26420

main48815-25060iKDY231,LY230..GEN,SA200508-202111

48815ABUSH, FRONT STABILIZER BAR, NO.2

main48815-25030iKDY23#..ST;KDY22#,LY220200107

main48815-25040iKDY23#,25#,26#,LY230..WT200107-202111

48817CUSHION, FRONT STABILIZER

main90948-01061iKDY231,LY230..GEN,SA200107-202111

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-03007iKDY231,LY230..GEN,SA200107-202111

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iKDY231,LY230..GEN,SA200107-202111

48819ABOLT, FRONT STABILIZER

main48819-25020iKDY231,LY230..GEN,SA200107-202111

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-25020iKDY231,LY230..GEN,SA200107-202111

48823BCOVER, FRONT STABILIZER BRACKET

main48823-25010iKDY231,LY230..GEN,SA200107-202111

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-25020iKDY231,LY230..GEN,SA200107-202111

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-25010iKDY231,LY230..GEN,SA200107-202111

9010512151

main90105-12151

9011908C44

main90119-08C44

9017012004

main90170-12004

9017012008

main90170-12008

9017012016

main90170-12016

91641K0822

main91641-K0822

9418461001

main94184-61001

9462211200

main94622-11200

35 parts on this diagram · 3 diagrams in section
