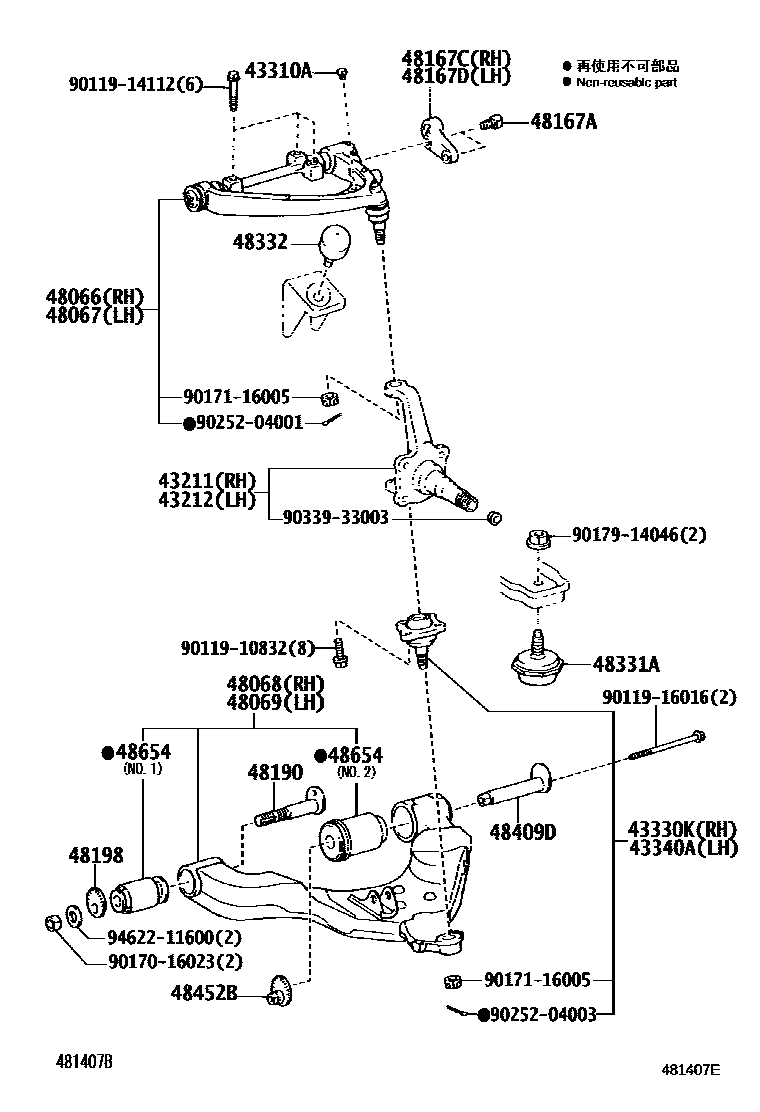

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-25070iLY225,235200107

main43201-25080iLY230..SA200107-201610

main43201-25090iLY230201610-202111

main43201-25090iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

43212KNUCKLE, STEERING, LH

main43202-25060iLY225,235200107

main43202-25070iLY230..SA200107-201610

main43202-25080iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

main43202-25080iLY230201610-202111

43310APLUG (FOR BALL JOINT)

main90345-06014iLY230..SA200107-202111

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29105iLY230..SA200107-202111

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29105iLY230..SA200107-202111

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-29165iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

main48066-29165iLY230201610-202111

main48066-29175iLY230..SA200107-201610

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-29165iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

main48067-29165iLY230201610-202111

main48067-29175iKDY23#;KDY221..GEN;KDY22#,25#,26#,LY220,230..(ARL,EUR)..IV3200107-201610

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-25020iKDY220,230,250,260,LY220,230200107-200407

sub48068-25021

main48068-25021iKDY22#,23#,25#,26#,LY220,230200408-202111

sub48068-25022

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-25020iKDY220,230,250,260,LY220,230200107-200407

sub48069-25021

main48069-25021iKDY22#,23#,25#,26#,LY220,230200408-202111

sub48069-25022

48167ABOLT(FOR TORQUE ARM SETTING)

main90105-12200iKDY22#,23#,25#,26#,LY220,230200107-202111

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-25020iKDY22#,23#,25#,26#,LY220,230200107-202111

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-25020iKDY22#,23#,25#,26#,LY220,230200107-202111

48190CAM ASSY, CAMBER ADJUST

main48190-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

48198CAM, CAMBER ADJUST, NO.2

main48198-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

48331ABUMPER, FRONT SPRING, NO.1

main48331-25040iKDY22#,23#,25#,LY220,230200107-202111

main48331-25050iKDY26#200108-201502

48332BUMPER, FRONT SPRING, NO.2

main48332-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

48409DCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST

main48409-25020iKDY22#,23#,25#,26#,LY220,230200107-202111

48452BPLATE, FRONT SUSPENSION TOE ADJUST, NO.2

main48452-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

48654BUSH, LOWER ARM

main48061-25010iKDY22#,23#,25#,26#,LY220,230200107-202111

NO.1

main48061-25020iKDY22#,23#,25#,26#,LY220,230200107-202111

NO.2

9011910832

main90119-10832

9011914112

main90119-14112

9011916016

main90119-16016

9017016023

main90170-16023

9017116005

main90171-16005

9017914046

main90179-14046

9025204001

main90252-04001

9025204003

main90252-04003

9033933003

main90339-33003

9462211600

main94622-11600

29 parts on this diagram · 2 diagrams in section
