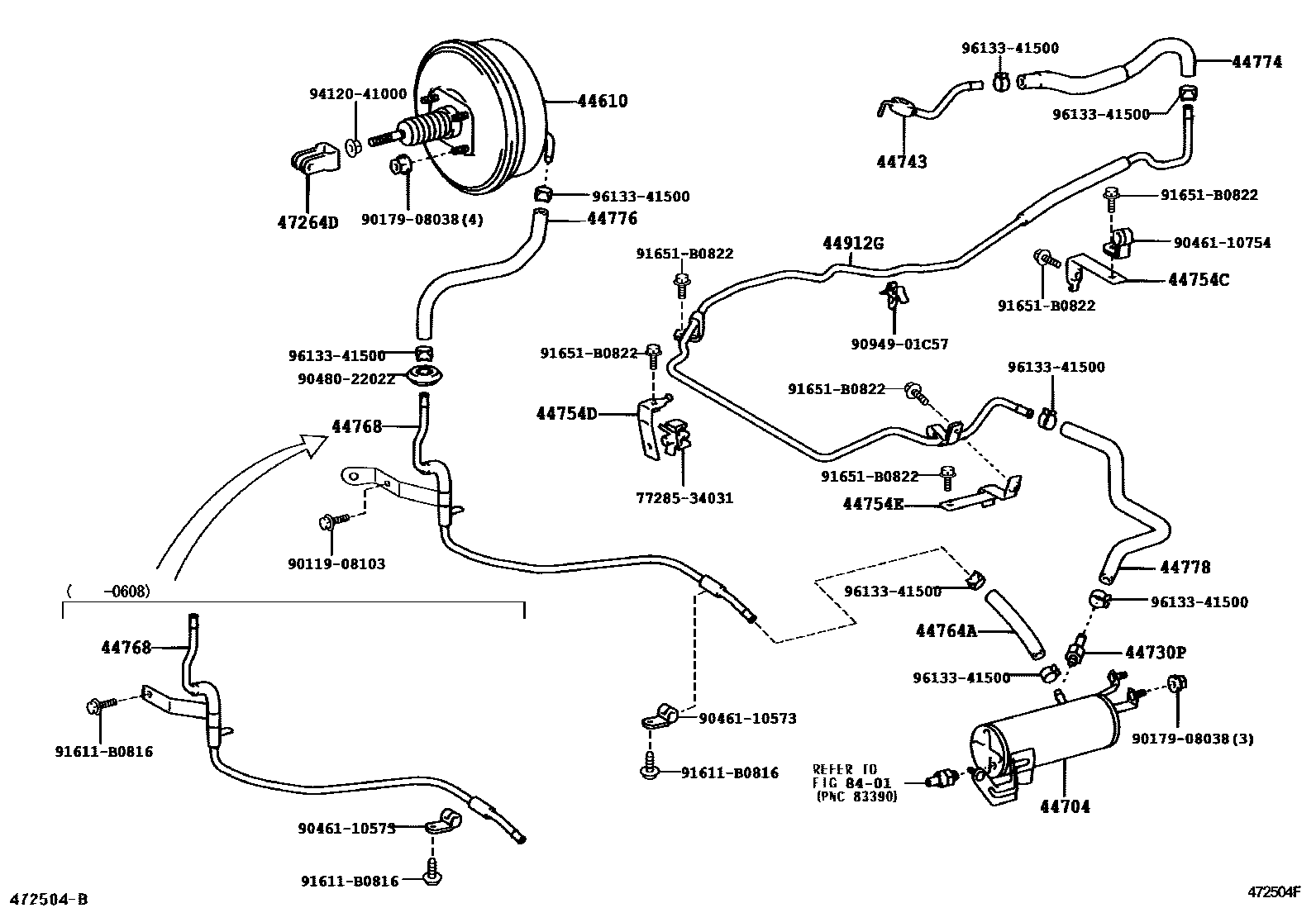

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

44610BOOSTER ASSY, BRAKE

main44610-25310iLY235..ST;KDY22#,23#,25#,26#,LY230..ARL,EUR,SA200107-201610

main44610-25330iLY235..WT;KDY221,231,LY22#..ARL,GEN200107-201610

main44610-25350iKDY221,231,LY23#..RHD201610-202111

44704RESERVOIR SUB-ASSY, VACUUM

main44704-25140iKDY220,230,250,LY220,230..RHD200107-200308

main44704-25150iKDY220,230,250,260..LHD200107-200308

main44704-25160iKDY22#,23#,25#,LY220,230..RHD200308-202111

main44704-25170iKDY22#,23#,25#,26#..LHD200308-201502

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iKDY221,231,LY230..GEN,SA200107-202111

44743UNION(FOR VACUUM PUMP)

main90405-09175iKDY22#,23#,25#,26#200108

main90405-09183iLY230200909-202111

main90405-09183iLY235..WT;LY220,230..ARL200107-200609

TYPE A:REFER TO ILLUSTRATION

main90405-09184iLY225,235..RHD..ST200107-200909

TYPE B:REFER TO ILLUSTRATION

44754CBRACKET, VACUUM TUBE, NO.1

main44754-25010iLY220,230200107-202111

main44754-25030iLY225,235200107

main44754-25060iKDY22#,23#,25#,26#..LHD200108-201502

44754DBRACKET, VACUUM TUBE, NO.2

main44754-25040iLY225,235;KDY22#,23#,25#..RHD200107

44754EBRACKET, VACUUM TUBE, NO.3

main44754-25050iLY235200107-201609

44764AHOSE, BOOSTER VACUUM

main90445-17141iKDY220,230,250,260..LHD200107-202111

44768TUBE, BOOSTER VACUUM

main44768-25080iKDY22#,23#,25#,LY220,230..RHD200107-202111

main44768-25090iKDY220,230,250,260,LY225,235..LHD200107-200608

main44768-25091iKDY22#,23#,25#,26#,LY225,235..LHD200608-201610

main44768-25100iLY225,235..RHD200107

main44768-25110iLY235..LHD201610

44774HOSE, UNION TO CONNECTOR TUBE

main44774-25080iLY22#,23#200107-200501

sub44774-25081

main44774-25081iLY225,23#200501-202111

main44774-25090iKDY220,230,250,260200108-200501

sub44774-25091

main44774-25091iKDY22#,23#,25#,26#200501

44776HOSE, BRAKE BOOSTER

main44776-25040iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main44776-25050iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main44776-37370iKDY221,231,LY230201610-202111

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-25020iKDY220,230,250,LY220,230..RHD200107-200308

main44778-25030iKDY220,230,250,260..LHD200107-200308

main44778-25050iKDY22#,23#,25#,LY220,230..RHD200308-202111

main44778-25060iKDY22#,23#,25#,26#..LHD200308-201502

44912GTUBE, 3 WAY TO MAGNETIC VALVE

main44750-25020iLY225,235..LHD200107

main44912-25060iKDY220,230,250..RHD200108-200308

main44912-25070iLY220,230200107-200308

main44912-25090iLY225,235..RHD200107

main44912-25110iKDY220,230,250,260..LHD200108-200308

main44912-25120iLY220,230200308-202111

main44912-25140iKDY22#,23#,25#..RHD200308

main44912-25150iKDY22#,23#,25#,26#..LHD200308-201502

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-25020iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main47264-42010iKDY221,231,LY23#..RHD201610-202111

8401

7728534031BRACKET, FUEL TUBE

main77285-34031

9011908103

main90119-08103

9017908038

main90179-08038

9046110573

main90461-10573

9046110754

main90461-10754

9048022022

main90480-22022

9094901C57

main90949-01C57

91611B0816

main91611-B0816

91651B0822

main91651-B0822

9412041000

main94120-41000

9613341500

main96133-41500

26 parts on this diagram · 12 diagrams in section
