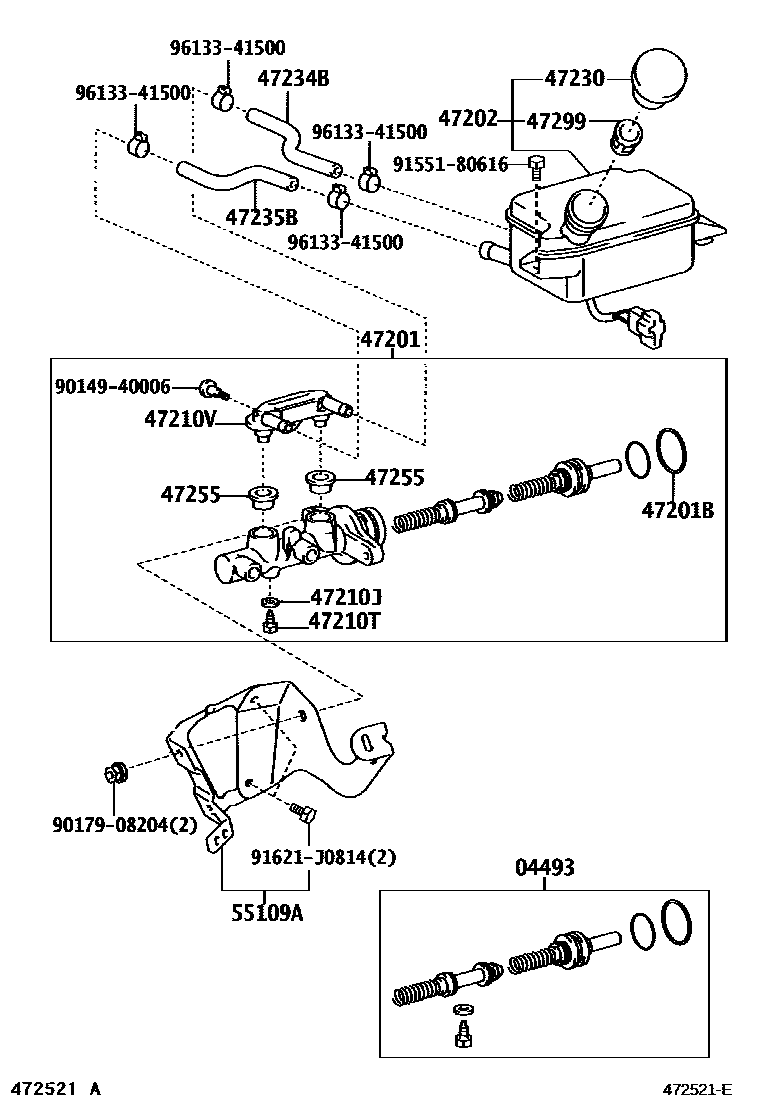

BRAKE MASTER CYLINDER

0001 1 0003 1 0005 1W(ABS) 0006 1W(ABS) 0007 1 0008 1

04493CYLINDER KIT, BRAKE MASTER

main04493-25100iKDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3200107-201610

main04493-25110iKDY22#,23#,25#,26#..EUR200108-201502

W(ABS)

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-25260iKDY22#,23#,25#..RHD..EUR200108-201502

W(ABS)

main47201-25270iKDY221..GEN;KDY22#..RHD..IV3;KDY23#,25#,LY22#,23#..RHD200107-201610

main47201-25280iKDY22#,23#,25#,26#..LHD200108-201502

W(ABS)

main47201-25290iKDY22#..LHD..IV3;KDY23#,25#,26#,LY225,235..LHD200107-201610

main47201-25300iKDY221,231,LY23#..RHD201610-202111

main47201-25310iLY235..LHD201610

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iLY235..LHD201610-202111

main90029-20059iKDY22#,23#,25#,26#,LY22#,23#200107-201610

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37051iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47220-37071iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47220-37120iKDY221,231,LY23#..RHD201610-202111

main47220-37190iLY235..LHD201610

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iKDY221..GEN;KDY23#,LY235;KDY22#,25#,26#,LY220,230..IV3200112-201610

main90430-06104iKDY230,LY225,235;KDY220,250,260,LY220,230..IV3200107-200112

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iLY225200107-201610

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90015-AM007iKDY221,231,LY23#..RHD201610-202111

main90029-40408iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main90029-40409iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iLY225;LY235..WT;LY235..LHD;KDY22#,23#,25#,26#,LY220,230..ARL,EUR200107-202111

47234BTUBE, RESERVOIR, NO.1

main47234-25080iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47234-25090iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47234-37180iKDY221,231,LY23#..RHD201610-202111

main47234-37200iLY235..LHD201610

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-25070iKDY22#,23#,25#,LY22#,23#..RHD200107-201610

main47235-25080iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main47235-37170iKDY221,231,LY23#..RHD201610-202111

main47235-37190iLY235..LHD201610

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iKDY22#,23#,25#,26#,LY22#,23#200107-201610

main90029-48001iKDY221,231,LY23#..RHD201610-202111

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iLY235..RHD..ST;KDY221,231,LY230..GEN,SA200107-202111

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-25010iKDY22#,23#,25#,26#,LY22#,23#200107-201007

sub55109-25020

main55109-25020iLY225201008-201610

9014940006

main90149-40006

9017908204

main90179-08204

9155180616

main91551-80616

91621J0814

main91621-J0814

9613341500

main96133-41500

18 parts on this diagram · 6 diagrams in section
