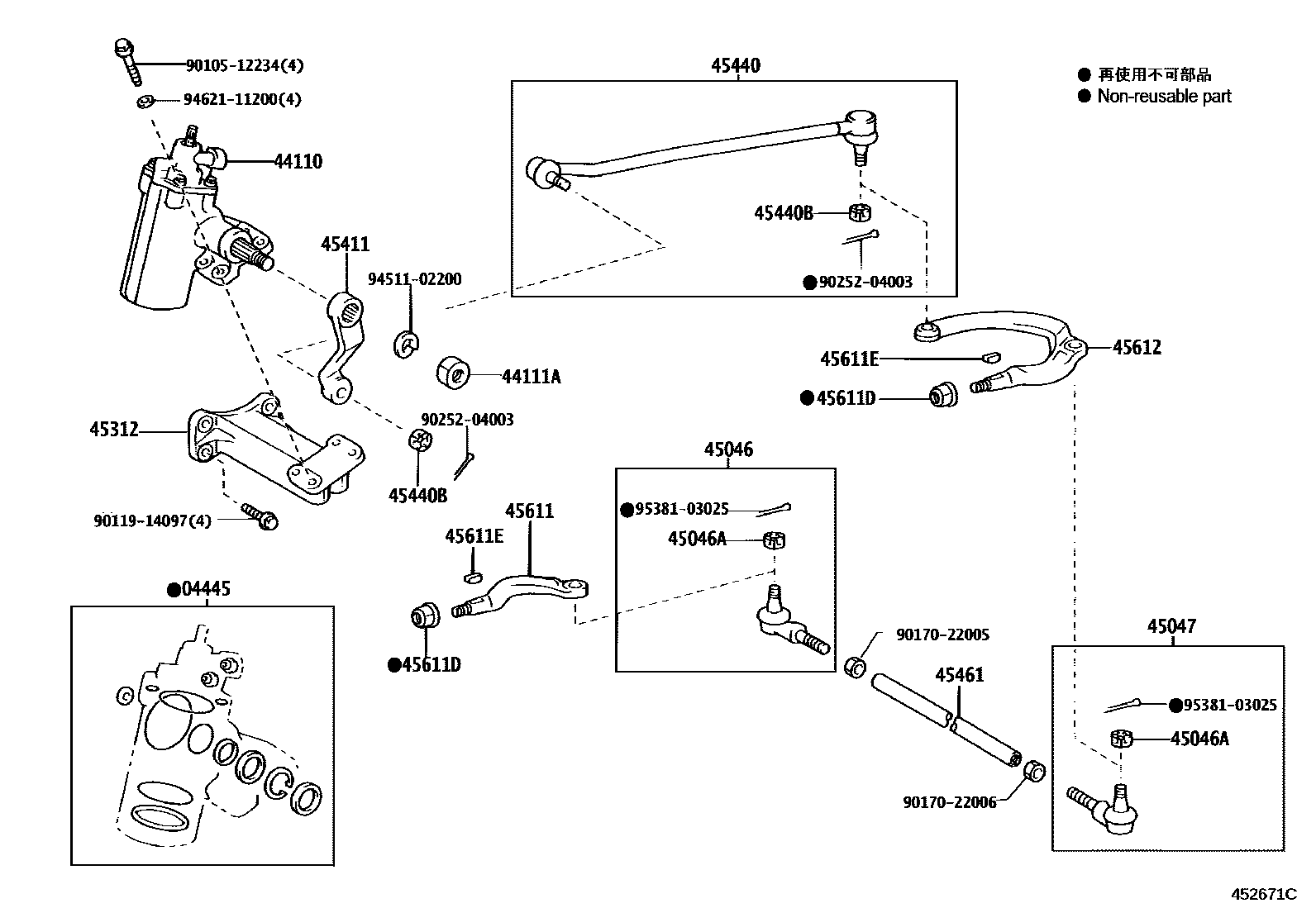

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-25070iLY225200107-201609

44110GEAR ASSY, POWER STEERING

main44110-25070iLY225,235..RHD200107-201704

sub44110-25071

main44110-25071iLY235..RHD201705

main44110-25080iLY225,235..LHD200107-201704

sub44110-25081

main44110-25081iLY235..LHD201705

44111ANUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)

main90170-22058iLY225,235200107

45046END SUB-ASSY, TIE ROD, RH

main45046-29405iKDY22#,23#,25#,26#,LY230..EUR,GEN,SA200107-202111

main45046-29416iLY225,235200107

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042iLY225,235200107

main90171-16005iKDY22#,23#,25#,26#,LY220,230200107-202111

45047END SUB-ASSY, TIE ROD, LH

main45046-29405iLY220,230..ARL200107-202111

main45047-29146iLY225,235200107

45312BRACKET, STEERING GEAR HOUSING

main45312-25210iLY235..RHD200107-201609

main45312-25220iLY235..LHD200107-201609

45411ARM, PITMAN

main45411-25250iLY225,235..RHD..ST200107

main45411-25260iLY225,235..LHD200107

main45411-25270iLY235..WT200107-200609

45440LINK ASSY, STEERING DRAG

main45440-29275iLY225,235..RHD200107-201402

sub45440-29295

main45440-29285iLY225..LHD200107-201609

main45440-29295iLY235..RHD201402-201609

45440BNUT, CASTLE(FOR STEERING DRAG LINK)

main90171-18003iLY225200107-201609

45461ROD, STEERING TIE

main45461-37050iLY225200107-201609

45611ARM, STEERING KNUCKLE, RH

main45611-25100iLY225,235..RHD200107

main45611-25120iLY230..SA200107-202111

main45612-25080iLY225,235..LHD200107

45611DNUT(FOR STEERING KNUCKLE ARM)

main90179-22007iLY235200107-201609

45611EKEY, WOODRUFF(FOR STEERING IDLER ARM)

main90280-07012iLY235200107-201609

45612ARM, STEERING KNUCKLE, LH

main45611-25110iLY225,235..LHD200107

main45612-25070iLY225,235..RHD200107

main45612-25090iLY230..SA200107-202111

9010512234

main90105-12234

9011914097

main90119-14097

9017022005

main90170-22005

9017022006

main90170-22006

9025204003

main90252-04003

9451102200

main94511-02200

9462111200

main94621-11200

9538103025

main95381-03025

23 parts on this diagram · 4 diagrams in section
