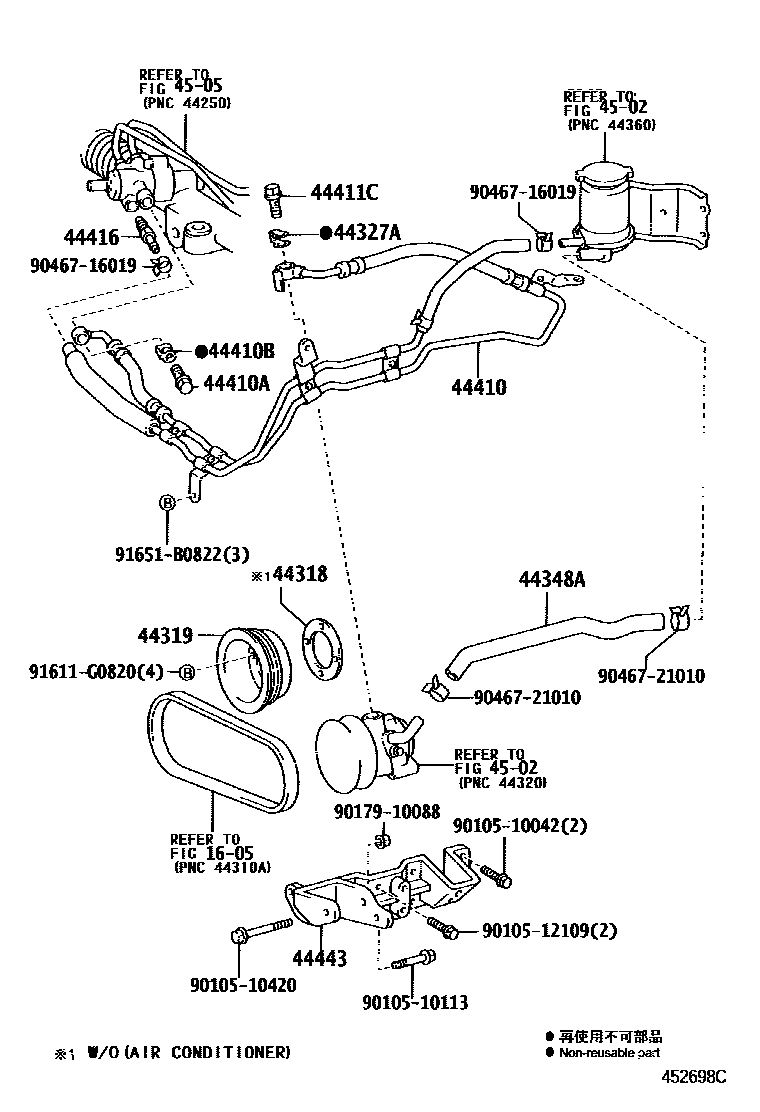

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-26010iLY230..SA200107-202111

44319PULLEY, VANE PUMP DRIVE

main44319-26010iLY225,235200107

main44319-26040iLY220,230200107-202111

44327AGASKET, PRESSURE PORT, NO.1

main44327-26020iKDY220,230,250,260,LY22#,23#200107-200312

main44327-30040iLY230..SA200312-202111

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-25070iLY220,230200107-202111

main44348-25080iKDY220,230,250,260200108-200408

main44348-25090iLY225,235200107

main44348-25100iKDY22#,23#,25#,26#200408

44410TUBE ASSY, PRESSURE FEED

main44410-25150iLY220,230200107-202111

main44410-25160iKDY220,230,250..RHD200108-200408

main44410-25170iKDY220,230,250,260..LHD200108-200408

main44410-25180iLY225,235..RHD200107

main44410-25190iLY225,235..LHD200107

main44410-25210iKDY22#,23#,25#..RHD200408

main44410-25220iKDY22#,23#,25#,26#..LHD200408-201502

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16040iLY230..SA200107-202111

44410BGASKET(FOR PRESSURE FEED TUBE)

main44327-30030iLY230..SA200107-202111

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16034iLY230..SA200107-202111

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iLY225,235;KDY220,230,250,LY230..RHD..(EUR,SA)200107-200606

main44416-60370iLY230200512-202111

44443BRACKET, PUMP

main44443-25030iLY22#,23#200107-202111

4502

4505

9010510042

main90105-10042

9010510113

main90105-10113

9010510420

main90105-10420

9010512109

main90105-12109

9017910088

main90179-10088

9046716019

main90467-16019

9046721010

main90467-21010

91611G0820

main91611-G0820

91651B0822

main91651-B0822

22 parts on this diagram · 5 diagrams in section
