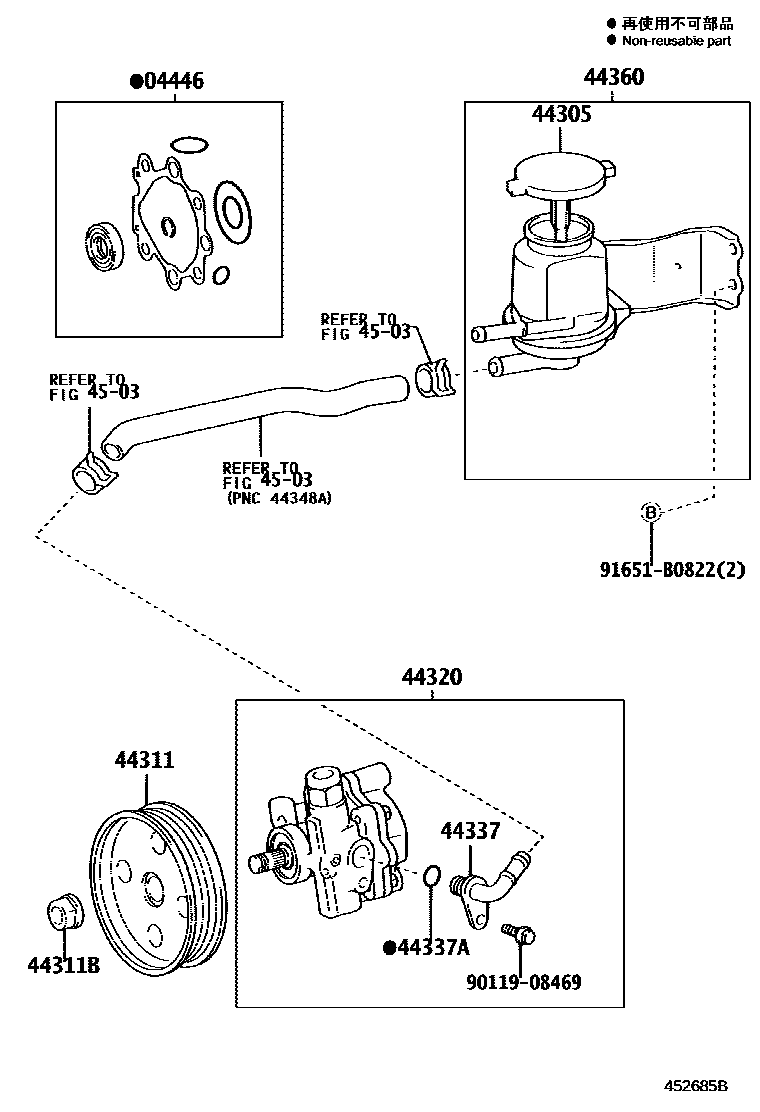

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26050iKDY220,230,250,260¥1,810200108-200408

main04446-34010iLY22#,23#¥2,320200107-200308

sub04446-53030¥1,360

main04446-35070iKDY22#,23#,25#,26#¥1,280200408

main04446-53030iLY22#,23#..ARL,GEN¥1,360200308-202111

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iLY225,235¥1,840200107-200802

sub44305-22050¥1,260

main44305-22050iLY225,235¥1,260200803

main44305-28030iKDY22#,23#,25#,26#,LY220,230¥1,590200107-200801

sub44305-28060¥1,590

main44305-28060iKDY221,231,251,261,LY230¥1,590200802-201207

sub44305-28061¥1,090

main44305-28061iKDY221,231,251,261,LY230¥1,090201208-202111

44311PULLEY, VANE PUMP

main44311-26050iLY220,230¥5,500200107-202111

main44311-26060iLY225,235¥2,980200107

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iLY230..SA¥160200107-202111

44320PUMP ASSY, VANE

main44310-25110iKDY220,230,250,260¥56,600200108-200408

main44310-25150iKDY22#,23#,25#,26#¥56,600200408

main44320-25090iLY230..SA¥68,000200107-202111

44337UNION, POWER STEERING SUCTION PORT

main44337-25020iKDY220,230,250,260¥1,300200108-200408

main44337-25030iKDY22#,23#,25#,26#¥1,150200408

main44337-35070iLY22#,23#..ARL,GEN¥1,030200107-202111

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iKDY220,230,250,260¥140200107-202111

main90301-11020iKDY22#,23#,25#,26#¥140200408

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-25030iKDY22#,23#,25#,26#,LY220,230¥8,600200107-202111

main44360-25040iLY225,235¥7,100200107

4503

9011908469

main90119-08469¥80

91651B0822

main91651-B0822¥110

11 parts on this diagram · 3 diagrams in section
