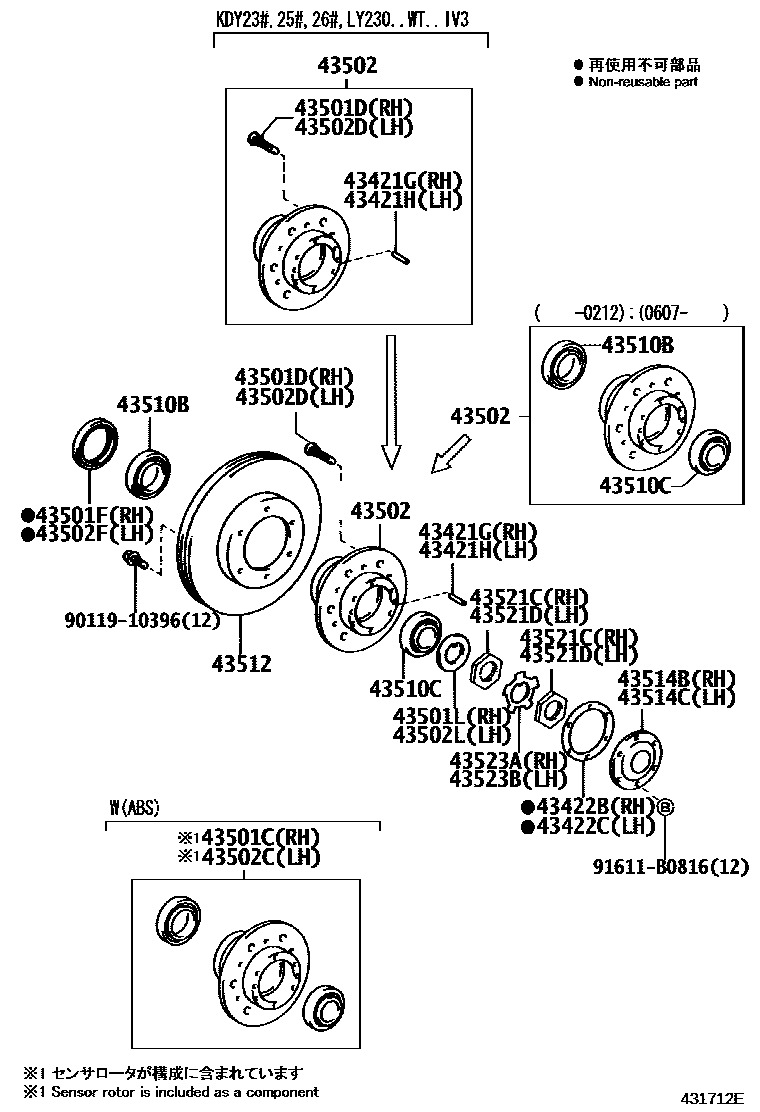

FRONT AXLE HUB

0001 1 0002 1

43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90250-07057iKDY22#,23#,25#,26#,LY220,230200107

43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90250-07057iKDY22#,23#,25#,26#,LY220,230200107

43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH

main43422-60010iKDY22#,23#,25#,26#,LY220,230200107

43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH

main43422-60010iKDY22#,23#,25#,26#,LY220,230200107

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-29065iLY235..WT200107-200609

main43502-29075iLY225,235..ST200107

main43503-29025iLY220200107-200908

sub43503-29026

main43503-29026iKDY221,231..ST200908-201502

main43503-29045iKDY23#,25#,26#,LY230..WT..(ARL,EUR)200107-200801

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02047iLY235..WT200107-200609

main90942-02049iKDY230..ST;KDY231..CBU;KDY22#,LY220;KDY231..ST..IV3200107

main90942-02058iLY225,235..ST200107

sub90942-02112

main90942-02061iKDY23#,25#,26#,LY230..WT..IV3200107-202111

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50003iLY225,235200107

main90311-66003iKDY22#,23#,25#,26#,LY220,230200107

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-23004iLY225,235200107

main90214-42030iKDY22#,23#,25#,26#,LY220,230200107

43502HUB SUB-ASSY, FRONT AXLE

main43501-25100iKDY23#,25#,26#,LY230..WT..IV3200107-200908

RH

sub43501-29025

main43501-29025iKDY231,251,261..WT..IV3200908

RH

main43502-25110iKDY23#,25#,26#,LY230..WT..IV3200107-200908

LH

sub43502-29105

main43502-29095iKDY221..GEN;KDY231..CBU;KDY221,231..ST..IV3200908

main43502-29105iKDY231,251,261..WT..IV3200908

LH

main43511-26070iKDY230..ST;KDY220,LY220..IV3200212-200607

sub43511-39015

main43511-39015iKDY230..ST;KDY220,LY220..IV3200107-200908

sub43502-29095

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-29065iLY235..WT200107-200609

main43502-29075iLY225,235..ST200107

main43503-29025iKDY22#,23#..ST200107-200908

sub43503-29026

main43504-29025iLY230..SA200107-200801

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02047iLY235..WT200107-200609

main90942-02049iKDY230..ST;KDY231..CBU;KDY22#,LY220;KDY231..ST..IV3200107

main90942-02058iLY225,235..ST200107

sub90942-02112

main90942-02062iKDY23#,25#,26#,LY230..WT..IV3200107-202111

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50003iLY235200107-201609

main90311-66003iKDY22#,23#,25#,26#,LY220,230200107

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-23004iLY225200107-201609

main90214-42030iKDY22#,23#,25#,26#,LY220,230200107

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064iKDY22#,23#,25#,26#,LY220,230200107-200908

TIMKEN

sub90368-49084

main90366-35004iLY225200107-201609

main90368-49084iKDY22#,23#,25#,26#,LY220,230200107-200908

KOYO

main90368-49084iKDY221,231,251,261,LY230200908

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067iKDY22#,23#,25#,26#,LY220,230200107-200908

TIMKEN

sub90368-45087

main90366-22002iLY235200107-201609

main90368-45087iKDY22#,23#,25#,26#,LY220,230200107-200908

KOYO

main90368-45087iKDY221,231,251,261,LY230200908

43512DISC, FRONT

main43512-25020iLY225,235200107

main43512-25060iKDY22#,23#,25#,26#,LY220,230200107-201008

sub43512-25061

main43512-25061iKDY221,231,251,261,LY230201008

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-25010iLY225,235200107

main43514-35020iKDY22#,23#,25#,26#,LY220,230200107

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-25010iLY225,235200107

main43514-35020iKDY22#,23#,25#,26#,LY220,230200107

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-60011iKDY22#,23#,25#,26#,LY220,230200107

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-60011iKDY22#,23#,25#,26#,LY220,230200107

43523AWASHER, FRONT WHEEL ADJUSTING LOCK, RH

main90215-42025iKDY22#,23#,25#,26#,LY220,230200107

43523BWASHER, FRONT WHEEL ADJUSTING LOCK, LH

main90215-42025iKDY22#,23#,25#,26#,LY220,230200107

9011910396

main90119-10396

91611B0816

main91611-B0816

24 parts on this diagram · 2 diagrams in section
