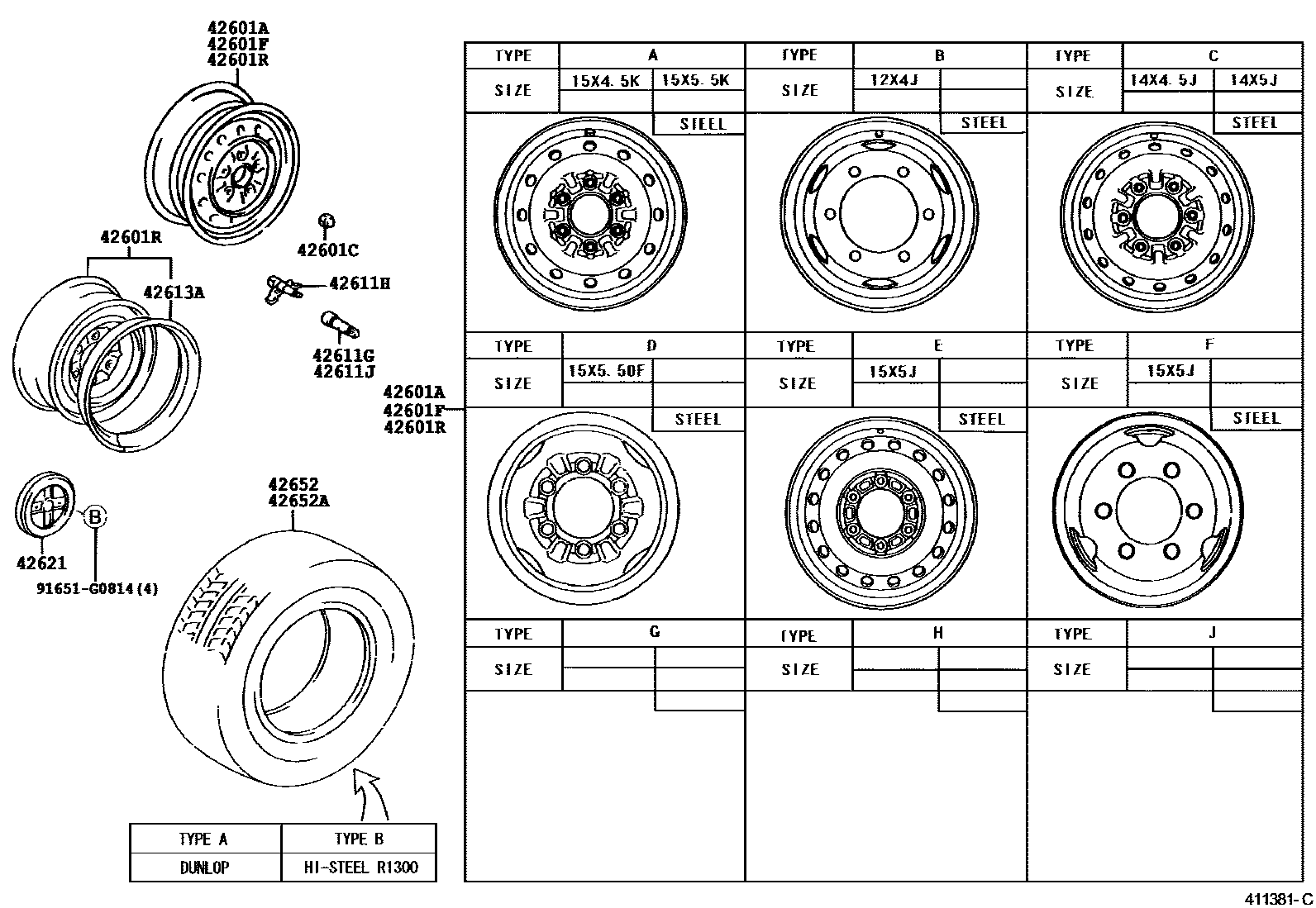

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601AWHEEL, DISC (FOR SPARE)

main42601-25190-03iLY225200107-201609

15X5.5K, #,TYPE A:REFER TO ILLUSTRATION,GRAY

main42601-25221iLY235..WT200107-200609

12X4J, #,TYPE B:REFER TO ILLUSTRATION

main42601-25240-03iLY235..15T..WT200107-200609

14X4.5J, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42601-25260-03iLY235..175T200107-200609

14X5J, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42601-26132iKDY221,231..GEN200609-201908

12X4J, #,TYPE B:REFER ILLUST.

main42601-26133iKDY221,231201909

12X4J, #,TYPE B:REFER ILLUST.

main42610-25050-03iLY235..ST200107

15X5.50F, #,TYPE D:REFER TO ILLUSTRATION,GRAY

main42611-25020iKDY230..ST;KDY231..CBU;KDY22#,LY220;KDY231..ST..IV3200107

15X5J, #,TYPE E:REFER TO ILLUSTRATION

main42611-25060iKDY23#,25#,26#,LY230..WT..IV3200107-202111

15X5J, #,TYPE F:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01010×6iKDY23#,25#,26#,LY230..WT..IV3200107-202111

REAR RH

main90942-01011×6iKDY23#,25#,26#,LY230..WT..IV3200107-202111

REAR LH

main90942-01012×6iKDY23#,25#,26#,LY230..WT..IV3200107-202111

FRONT RH

main90942-01013×6iKDY23#,25#,26#,LY230..WT..IV3200107-202111

FRONT LH

main90942-01051×24iKDY22#,23#,LY220..ST200107-201502

main90942-01099×6iLY225,235..ST200107

REAR RH

main90942-01100×6iKDY221,231,LY235..WT..CBU200107

REAR LH

42601FWHEEL, DISC (FOR FRONT)

main42601-25180-03×2iLY225,235..ST200107

15X4.5K, #,TYPE A:REFER TO ILLUSTRATION,GRAY

main42601-25221×2iLY235..175T200107-200609

12X4J, #,TYPE B:REFER TO ILLUSTRATION

main42601-25240-03×2iLY235..15T..WT200107-200609

14X4.5J, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42601-25260-03×2iLY235..175T200107-200609

14X5J, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42611-25020×2iKDY230..ST;KDY231..CBU;KDY22#,LY220;KDY231..ST..IV3200107

15X5J, #,TYPE E:REFER TO ILLUSTRATION

main42611-25060×2iKDY23#,25#,26#,LY230..WT..IV3200107-202111

15X5J, #,TYPE F:REFER TO ILLUSTRATION

42601RWHEEL, DISC (FOR REAR)

main42601-25190-03×2iLY225200107-201609

15X5.5K, #,TYPE A:REFER TO ILLUSTRATION,GRAY

main42601-25221×4iLY235..WT200107-200609

12X4J, #,TYPE B:REFER TO ILLUSTRATION

main42601-25260-03×2iLY235..175T200107-200609

14X5J, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42601-26132×4iKDY221,231..GEN200609-201908

12X4J, #,TYPE B:REFER ILLUST.

main42601-26133×4iKDY221,231201909

12X4J, #,TYPE B:REFER ILLUST.

main42610-25050-03×2iLY235..ST200107

15X5.50F, #,TYPE D:REFER TO ILLUSTRATION,GRAY

main42611-25020×2iKDY22#,23#,LY220..ST200107-201502

15X5J, #,TYPE E:REFER TO ILLUSTRATION

main42611-25060×4iKDY23#,25#,26#,LY230..WT..IV3200107-202111

15X5J, #,TYPE F:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iKDY221,231..GEN200609

REAR

main90942-05023×4iKDY22#,23#,LY220..ST200107-201502

main90942-05026×6iKDY23#,25#,26#,LY230..WT..IV3200107-202111

42611HEXTENSION, VALVE

main90942-05015×2iKDY221,231,LY235..WT..CBU200107

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iLY235..WT200107-200609

main90942-05023iKDY221,231..GEN200609

FRONT

main90942-05026iKDY23#,25#,26#,LY230..WT..IV3200107-202111

42613ARING, DISC WHEEL SIDE

main42613-35010×3iLY235..ST200107-200407

42621CAP, WHEEL

main42621-25090×2iKDY230,250..RHD200112-201502

42652TIRE

main42605-25100×2iLY225200107-201609

6.00R15-8,*D/L

main42605-25160×2iLY225200107-201609

7.00R15-8,*D/L,TYPE A:REFER ILLUST.

main42605-25210×2iLY235..ST200107-200407

7.00R15-10,*B/S

main42605-25240×2iLY225,235..ST200107-200407

6.00R15-8,*O/T

main42605-25241×2iLY225,235..ST200407

6.00R15-8

main42605-25250×2iLY225200107-200409

7.00R15-8,*O/T

main42605-25251×2iLY225200409-201609

7.00R15-8,*D/L,TYPE B:REFER ILLUST.

main42652-25060×2iLY235..175T200107-200609

185R14 8PR,*O/T

main42652-25080×2iLY235..15T..WT200107-200609

175R14 LT 8PR *B/S

main42652-25090×2iLY235..15T..WT200107-200609

175R14 LT 8PR *O/T

main42652-25110×2iLY235..WT200107-200609

155R12-8PRLT *B/S

main42652-25260×2iLY235..WT200107-200609

155R12-8 *O/T

main42652-26080×2iLY235..175T200107-200609

185R14-8,*B/S

main42652-26491×4iKDY220,230,LY220..ST200107-200403

195/70R15,*B/S

main42652-26492×4iKDY22#,23#,LY220..ST200404-201502

195/70R15,*B/S

main42652-26621×6iKDY220,230,LY220..ST200107-200403

195/70R15,*D/L

main42652-26622×6iKDY23#,25#,26#,LY230..WT..IV3200404-201504

195/70R15,*D/L

main42652-26623×6iLY230201505-202111

195/70R15,*D/L

42652ATIRE (FOR SPARE)

main42605-25160iLY225200107-201609

7.00R15-8,*D/L,TYPE A:REFER ILLUST.

main42605-25210iLY235..ST200107-200407

7.00R15-10,*B/S

main42605-25250iLY225200107-200409

7.00R15-8,*O/T

main42605-25251iLY225200409-201609

7.00R15-8,*D/L,TYPE B:REFER ILLUST.

main42652-25060iLY235..175T200107-200609

185R14 8PR,*O/T

main42652-25080iLY235..15T..WT200107-200609

175R14 LT 8PR *B/S

main42652-25090iLY235..15T..WT200107-200609

175R14 LT 8PR *O/T

main42652-25110iKDY221,231,LY235..WT..CBU200107-201310

155R12-8PRLT *B/S

main42652-25260iLY235..WT200107-200609

155R12-8 *O/T

main42652-26080iLY235..175T200107-200609

185R14-8,*B/S

main42652-26491iKDY220,230,250,260,LY220,230200107-200403

195/70R15,*B/S

main42652-26492iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200404-201505

195/70R15,*B/S

main42652-26621iKDY220,230,250,260,LY220,230200107-200403

195/70R15,*D/L

main42652-26622iKDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200404-201504

195/70R15,*D/L

main42652-26623iLY230201505-202111

195/70R15,*D/L

91651G0814

main91651-G0814

12 parts on this diagram · 2 diagrams in section
