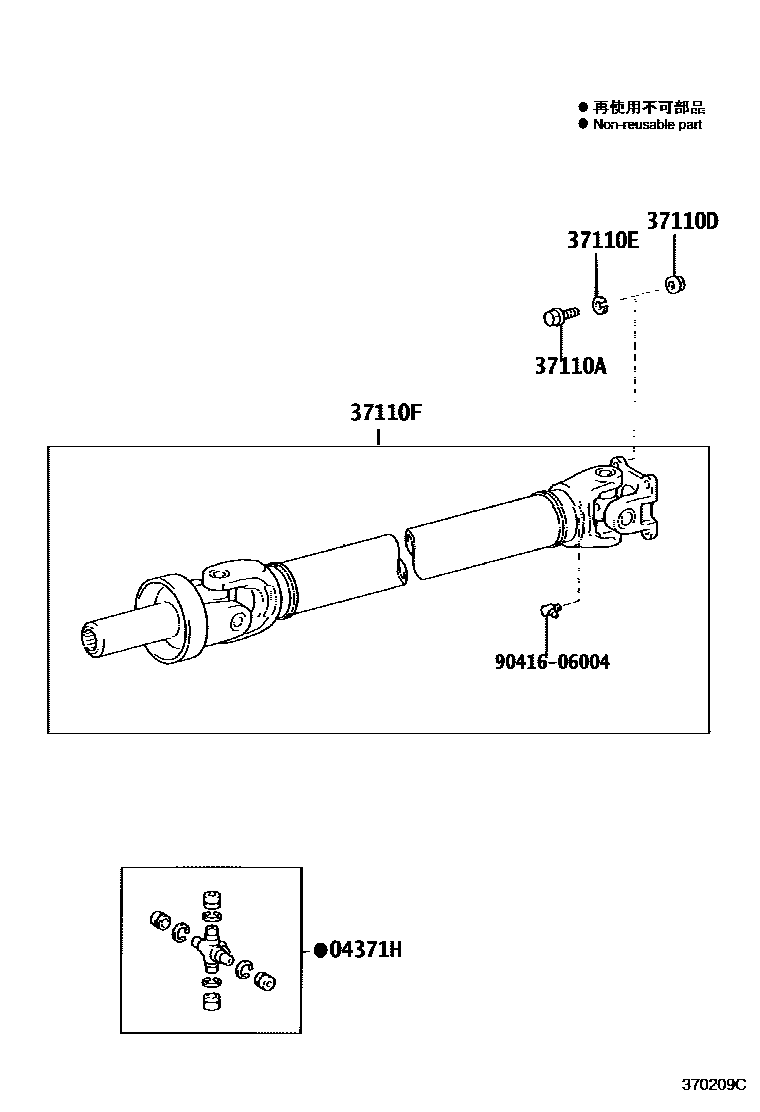

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

main04371-36030iKDY231,25#,26#..WT..IV3200108-201502

NO PAINTED

sub04371-60210

main04371-36050iKDY231,25#,26#..WT..IV3200108-201502

WHITE PAINTED

main04371-60070iKDY230..ST;KDY231..CBU;KDY231..ST..IV3;KDY22#,LY220,23#200107-201609

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iLY235..WT;KDY230..ST;KDY231..CBU;KDY22#,LY22#;KDY231..ST..IV3200107-200803

*10-1.00PX27-13

main90105-10466iKDY231..CBU;KDY221,LY225;KDY231..ST..IV3200803

*10-1.00PX29-15

main90105-11013iLY235..ST;KDY23#,25#,26#,LY230..WT..IV3200107-202111

*11-1.00PX28-16

37110DNUT (FOR PROPELLER SHAFT)

main90178-10007iKDY221,231..GEN200803-201609

H=11

main90179-10059iKDY22#,23#,LY22#..ST200107-200803

H=9

main90179-11005iLY235..ST;KDY23#,25#,26#,LY230..WT..IV3200107-202111

H=10

37110EWASHER (FOR PROPELLER SHAFT)

main90201-11013iLY235..ST;KDY23#,25#,26#,LY230..WT..IV3200107-202111

main90204-10002iKDY221,231,LY235..WT..CBU200107-200803

sub90560-10H00

main90560-10102iKDY221,231,LY225..ST200803-201609

37110FSHAFT ASSY, PROPELLER, REAR

main37100-0W070iKDY25#200602-201502

CKD PACKAGE

main37100-0W080iKDY26#200602-201502

CKD PACKAGE

main37100-25040iKDY25#200108-201502

main37100-25050iKDY26#200108-201502

main37110-0W100iKDY23#..15T..IV3200602-201502

CKD PACKAGE

main37110-25540iLY22#200107-201609

main37110-25550iKDY220200108-200610

main37110-25580iKDY230..ST200108-200609

main37110-25620iLY230;LY235..ST200107-200408

sub37110-25621

sub37110-6A450

main37110-25621iLY230200408-202111

main37110-25630iLY235..WT200107-200408

sub37110-25810

main37110-25631iKDY231..GEN200609

main37110-25730iKDY23#..WT..IV3200108-201502

main37110-25760iKDY221..GEN200609

main37110-25770iKDY221..EUR200609-201502

main37110-25790iKDY231..ST200609-201502

main37110-25810iLY235..WT200408-200609

main37110-6A450iLY235..ST200408

9041606004

main90416-06004

6 parts on this diagram · 6 diagrams in section
