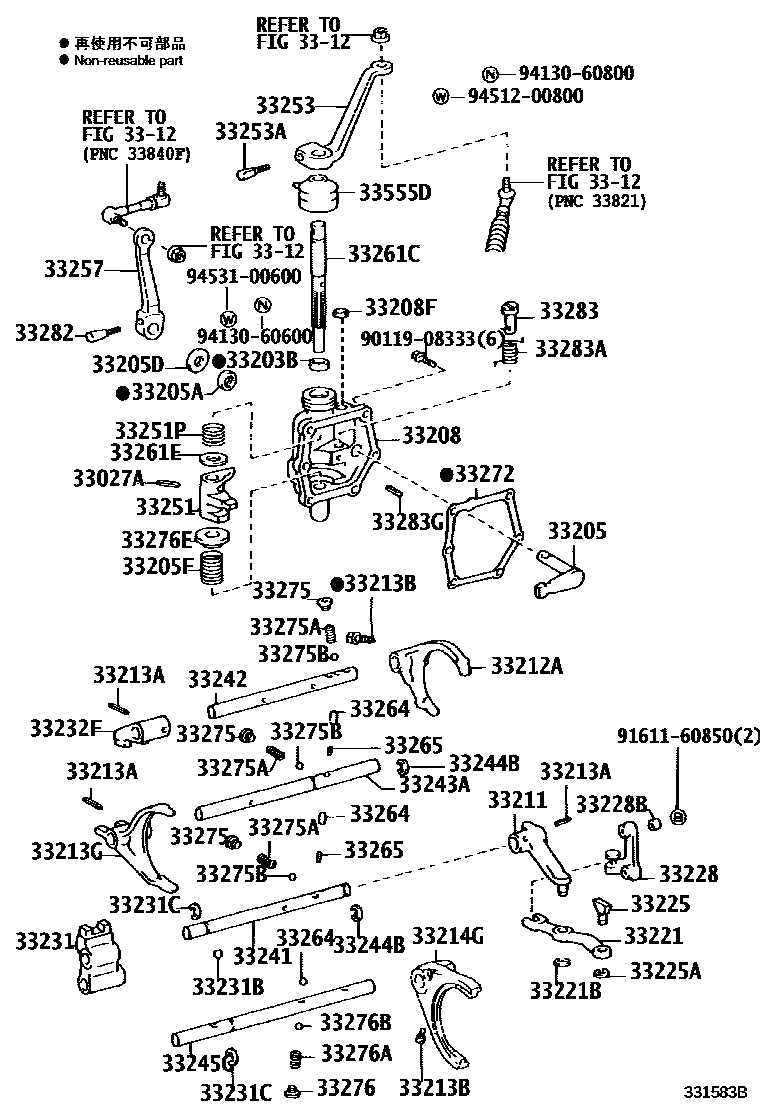

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G54 0002 1R351,R451,R452 0003 1R351,R451,R452

33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)

main90254-05001iKDY220,230..ST200107-201609

main90254-05016iKDY221,231..ST200107-202111

3312

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iKDY220..RHD..IV3200107-201609

main90311-20006iLY230..SA200107-202111

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-25040iLY230..SA200107-202111

main33262-28020iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iKDY220..RHD..IV3200107-201609

main90313-13002iLY230200709-202111

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iKDY220..RHD..IV3200107-201609

OD=28

main94612-11300iLY230..SA200107-202111

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main90501-15038iLY230..SA200107-202111

main90501-21038iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-25010iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-200709

main33207-25020iLY230200709-202111

main33271-28010iKDY220..RHD..IV3200107-201609

33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)

main96411-41200iKDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#..ARL,EUR,GEN200107-202111

33211FORK, REVERSE SHIFT

main33211-28010iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

main33211-35050iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201310

main33211-35060iKDY221,231,251,261,LY23#201310-202006

main33211-35061iLY230202006-202111

33212AFORK, GEAR SHIFT, NO.1

main33212-25011iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107

main33212-26030iKDY220..RHD..IV3200107-201609

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKDY220,230..ST200107-201609

main90254-05016iLY235;KDY221,231,251,261,LY230..WT200107-200609

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107

main90105-06143iKDY220..RHD..IV3200107-201609

33213GFORK, GEAR SHIFT, NO.2

main33213-25020iLY235;KDY231..EUR;KDY221,230,25#,26#,LY230..(125T,15T)..(ARL,EUR,SA)200107-201310

sub33213-25021

main33213-25021iKDY221,231..GEN201305

main33220-26010iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33214GFORK, GEAR SHIFT, NO.3

main33214-26020iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

main33230-26010iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201501

sub33230-26011

main33230-26011iLY230201501-202111

33221ARM, REVERSE SHIFT

main33221-28010iKDY220..RHD..IV3200107-201609

main33221-35050iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201310

main33221-35060iKDY221,231,251,261,LY23#201310

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iKDY220..RHD..IV3200107-201609

33225SHOE, SHIFT ARM

main33225-35030iKDY220..RHD..IV3200107-201609

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main96160-00800iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33228BRACKET, REVERSE SHIFT ARM

main33228-0K030iLY235;KDY221,231,251,261,LY230..EUR,SA201305-201310

(L)

main33228-28010iKDY220..RHD..IV3200107-201609

main33228-35030iLY235..ST;KDY221,231,251,261,LY230..EUR,SA200107-201310

main33228-35030iLY235;KDY221,231,251,261,LY230..EUR,SA201305-201310

(J)

main33228-35050iKDY221,231,251,261,LY23#201310

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001iKDY220..RHD..IV3200107-201609

33231HEAD, REVERSE SHIFT

main33231-28020iKDY220..RHD..IV3200107-201609

33231BBALL, REVERSE SHIFT RESTRICT

main90360-10003iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33231CRING(FOR REVERSE SHIFT HEAD)

main90520-12006iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33232FHEAD, GEAR SHIFT, NO.1

main33232-26010iKDY230,250,260,LY23#..125T,15T,175T200107-200408

main33232-26020iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200408-201310

main33232-28020iKDY220..RHD..IV3200107-201609

33241SHAFT, REVERSE SHIFT FORK

main33244-25050iKDY221,231,251,261,LY23#201310-202006

main33244-25051iKDY221,231,LY235202006-202111

main33244-26020iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201105

sub33244-26021

main33244-26021iKDY221,231,251,261,LY23#201105-201310

sub33244-25040

main33244-28011iKDY220..RHD..IV3200107-201609

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-25040iKDY221,231,251,261,LY23#201310

main33242-26020iKDY220..RHD..IV3200107-201609

main33242-26030iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201310

sub33242-25040

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-25030iKDY221,231,251,261,LY23#201310-202006

main33243-25031iLY230202006-202111

main33243-26050iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201310

main33243-35051iKDY220..RHD..IV3200107-201609

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12006iKDY220..RHD..IV3200107-201609

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-25050iKDY221,231,251,261,LY23#201105-201310

main33245-26010iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

main33245-35090iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201105

33251LEVER, SHIFT & SELECT

main33251-26050iLY230..SA200107-202111

main33251-28030iKDY220..RHD..IV3200107-201609

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-16178iKDY220..RHD..IV3200107-201609

main90501-21037iKDY231;KDY221,230,25#,26#,LY23#..(125T,15T,175T)..(ARL,EUR,GEN)200107-202111

33253LEVER, SHIFT OUTER, NO.1

main33253-25060iKDY220..RHD..IV3200107-201609

main33253-25070iLY230..SA200107-202111

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iKDY220..RHD..IV3200107-201609

33257LEVER, SELECT OUTER

main33257-25040iKDY220..RHD..IV3200107-201609

main33257-25050iLY230..SA200107-202111

33261CSHAFT, SHIFT & SELECT LEVER

main33261-28030iKDY220..RHD..IV3200107-201609

main33261-35110iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201008

sub33261-35111

main33261-35111iLY230201008-202111

33261EWASHER (FOR SHIFT & SELECT LEVER SHAFT)

main90201-15023iKDY220..RHD..IV3200107-201609

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05029iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107

L=11.5,OD=4.8

main90250-06032iKDY221,231,LY23#202006

L=13.7,OD=6

main90360-10003iKDY220..RHD..IV3200107-201609

OD=9.52,STEEL

main90361-10002iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

L=21.6,PIN

main90361-10003iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

L=13.6,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020iKDY220..RHD..IV3200107-201609

L=11.1,OD=4.8

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-28010iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008iKDY221,231..ST200107-201109

OD=18

main90341-12014iKDY230,250,260,LY23#..125T,15T,175T200107-200202

OD=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14132iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

L=31

main90501-16143iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201105

L=33.8

main90501-18136iKDY221,231,251,261,LY23#201105-201310

L=33.4

33275BBALL, SHAFT DETENT

main90360-10003iKDY220..RHD..IV3200107-201310

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-12008iKDY220..RHD..IV3200107-201609

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-14123iKDY220..RHD..IV3200107-201609

33276BBALL, SHIFT DETENT, NO.2

main90360-10003iKDY220..RHD..IV3200107-201609

33276ESEAT, SELECT SPRING, NO.1

main33276-25021iLY230..SA200107-202111

main33276-28011iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33282PIN, LEVER LOCK, NO.2

main33282-35010iKDY220..RHD..IV3200107-201609

main33282-57010iLY230..SA200107-202111

33283PIN, REVERSE RESTRICT, NO.1

main33283-26010iLY230..SA200107-202111

main33283-27010iKDY220..RHD..IV3200107-201609

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main90504-10008iKDY220..RHD..IV3200107-201609

main90504-10009iLY230..SA200107-202111

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-04015iLY230..SA200107-202111

33555DBOOT, SHIFT LEVER

main33555-25020iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201008

main33555-26070iKDY221,231,251,261,LY235201008-202111

main33555-28010iKDY220..RHD..IV3200107-201609

9011908333

main90119-08333

9161160850

main91611-60850

9413060600

main94130-60600

9413060800

main94130-60800

9451200800

main94512-00800

9453100600

main94531-00600

58 parts on this diagram · 3 diagrams in section
