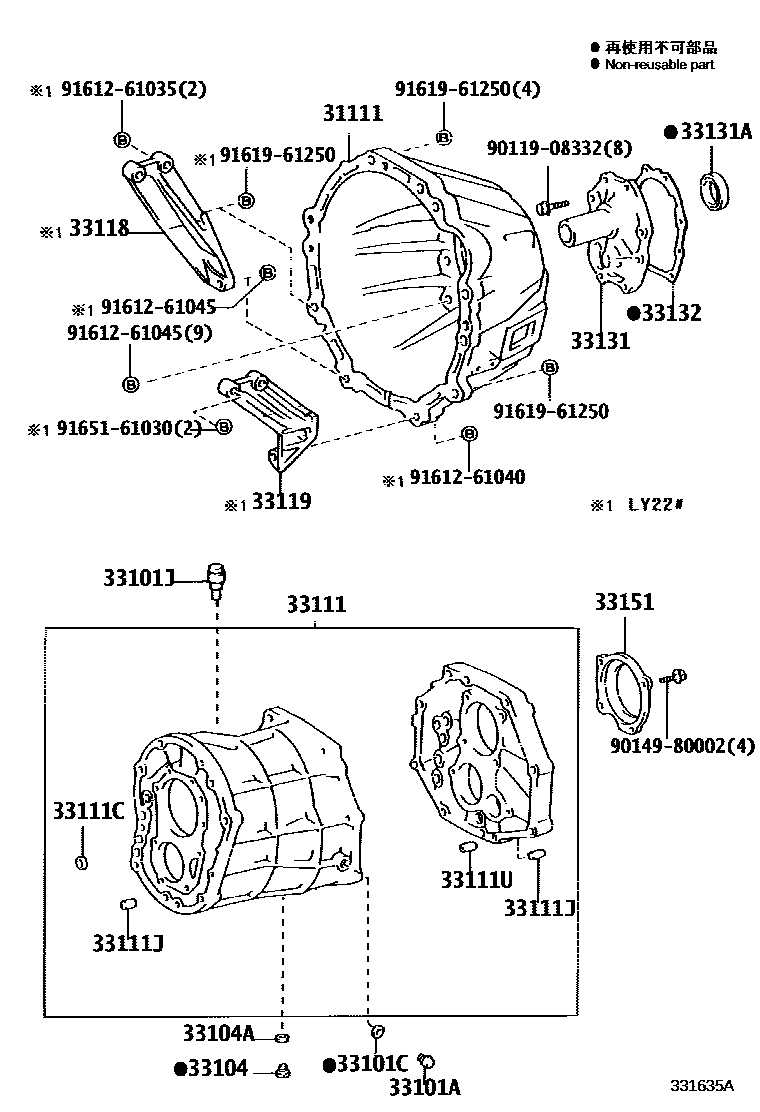

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G54 0002 1R451,R452 0003 1R351

31111HOUSING, CLUTCH

main31111-22114iLY22#200107-201609

main31111-25030iLY230..SA200107-202111

main31111-25050iKDY220,230..ST200108-200609

main31111-26110iKDY221,231,251,261200905

main31111-35101iKDY231;KDY221,230,25#,26#..125T,15T200108-200905

sub31111-35102

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLY230..SA200107-202111

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKDY220..RHD..IV3200107-202111

33101JPLUG, BREATHER

main90930-03085iKDY220..RHD..IV3200107-202111

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iLY230..SA200107-202111

main90341-18032iKDY220..RHD..IV3200107-201609

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKDY220..RHD..IV3200107-202111

33111CASE, MANUAL TRANSMISSION

main33101-25020iLY235;KDY221,23#,25#,26#,LY230..WT200107-201109

sub33101-25021

main33101-25021iLY230201109-202012

main33101-26040iKDY221,231..ST200609-201105

sub33101-26041

main33101-26041iKDY221,231..ST201105-201502

main33101-26060iLY225201508-201609

main33101-35060iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201508

sub33101-26060

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKDY231..WT..IV3;KDY230,25#,26#,LY235..WT200107-201609

OD=14

main96411-41800iKDY231;KDY221,230,25#,26#,LY23#..(125T,15T,175T)..(ARL,EUR,GEN)200107-202012

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iKDY220..RHD..IV3200107-202012

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iLY230..SA200107-202012

L=11,OD=11

main90253-15001iKDY220..RHD..IV3200107-202012

L=14,OD=15

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY22#,23#200107-202111

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLY22#200107-201609

main33119-25060iLY23#200107-202111

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

main33131-35031iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-201806

sub33131-35032

main33131-35032iLY230201806-202111

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

main90311-32012iKDY231;KDY221,230,25#,26#,LY23#..125T,15T,175T200107-200706

main90311-32022iLY230200706-202111

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iKDY220..CBU;KDY230,LY22#..ST;KDY220..LHD..IV3200107-201609

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iLY230..SA200107-202111

main33151-35030iKDY220..RHD..IV3200107-201609

9011908332

main90119-08332

9014980002

main90149-80002

9161261035

main91612-61035

9161261040

main91612-61040

9161261045

main91612-61045

9161961250

main91619-61250

9165161030

main91651-61030

23 parts on this diagram · 3 diagrams in section
