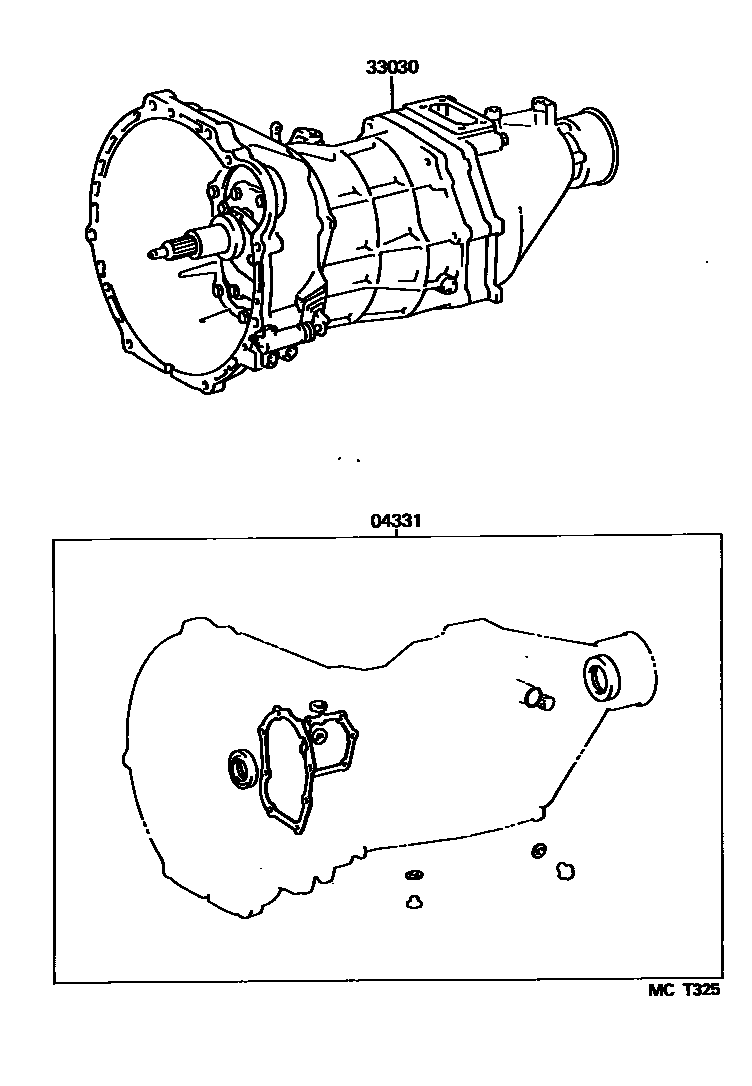

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G54 0002 1R451,R452 0003 1R351

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25030iKDY230,250,260..WT¥2,780200107-200609

main04331-25040iKDY220,230,LY220..ST¥2,390200107-200610

sub04331-28010¥2,550

main04331-25060iLY235..ST;KDY221,231,251,261,LY230..WT..(EUR,GEN,SA)¥2,400200408-200708

sub04331-25090¥1,510

main04331-25090iLY235;KDY221,231,251,261..WT¥1,510200709-202111

main04331-26060iKDY221,231..ST¥2,470200609-201101

sub04331-26200¥2,060

main04331-26200iKDY221,231..ST¥2,060201101-201502

sub04331-26201¥1,550

main04331-28010iLY225¥2,550200107-201609

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-25210iLY22#¥261,000200107-201609

G54

sub33030-25211¥261,000

main33030-25230iKDY220,230..ST¥260,000200108-200609

G54

main33030-25280iLY230;LY235..ST¥256,000200107-201105

R452

sub33030-25281¥256,000

main33030-25281iLY23#¥256,000201105-201305

R452

sub33030-25282¥256,000

main33030-25283iLY23#¥257,000201305-201310

R452

sub33030-25284¥215,000

main33030-25284iLY23#¥215,000201310-202012

R452

sub33030-25285

sub90179-20024¥210

main33030-25285iLY23#202012-202106

R452

sub33030-25286¥179,000

main33030-25286iLY235¥179,000202106-202111

R452

main33030-25290iLY235..WT¥259,000200107-200609

R452

main33030-25320iKDY230,250,260..WT¥259,000200108-200609

R451

sub33030-25390¥256,000

main33030-25350iKDY221,231..ST¥256,000200609-200905

R351

main33030-25390iKDY231,251,261..WT..IV3¥256,000200609-200905

R451

sub33030-25391¥256,000

sub90179-20024¥210

main33030-25400iKDY221,231..GEN¥256,000200609-200905

R451

main33030-25410iKDY221,231..ST¥256,000200905-201105

R351

sub33030-25411¥256,000

main33030-25411iKDY221,231..ST¥256,000201105-201109

R351

sub33030-25412¥256,000

main33030-25431iKDY221,231..ST¥256,000201109-201305

R351

sub33030-25432¥256,000

main33030-25433iKDY221,231..ST¥257,000201305-201310

R351

sub33030-25434¥179,000

main33030-25434iKDY221,231..ST¥179,000201310-201502

R351

sub33030-25435¥179,000

main33030-25450iKDY231,251,261..WT..IV3¥256,000200905-201105

R451

sub33030-25451¥256,000

main33030-25451iKDY231,251,261..WT..IV3¥256,000201105-201305

R451

sub33030-25452¥256,000

main33030-25453iKDY231,251,261..WT..IV3¥257,000201305-201310

R451

sub33030-25454¥215,000

main33030-25454iKDY221,231,251,261..WT¥215,000201310-202012

R451

sub33030-25455¥179,000

sub90179-20024¥210

main33030-25455iKDY221,231¥179,000202012-202106

R451

sub33030-25456¥179,000

main33030-25456iKDY221,231¥179,000202106

R451

main33030-25470iKDY221,231..GEN200905-201105

R451

sub33030-25471

main33030-25471iKDY221,231..GEN201105-201310

R451

sub33030-25472

2 parts on this diagram · 3 diagrams in section
