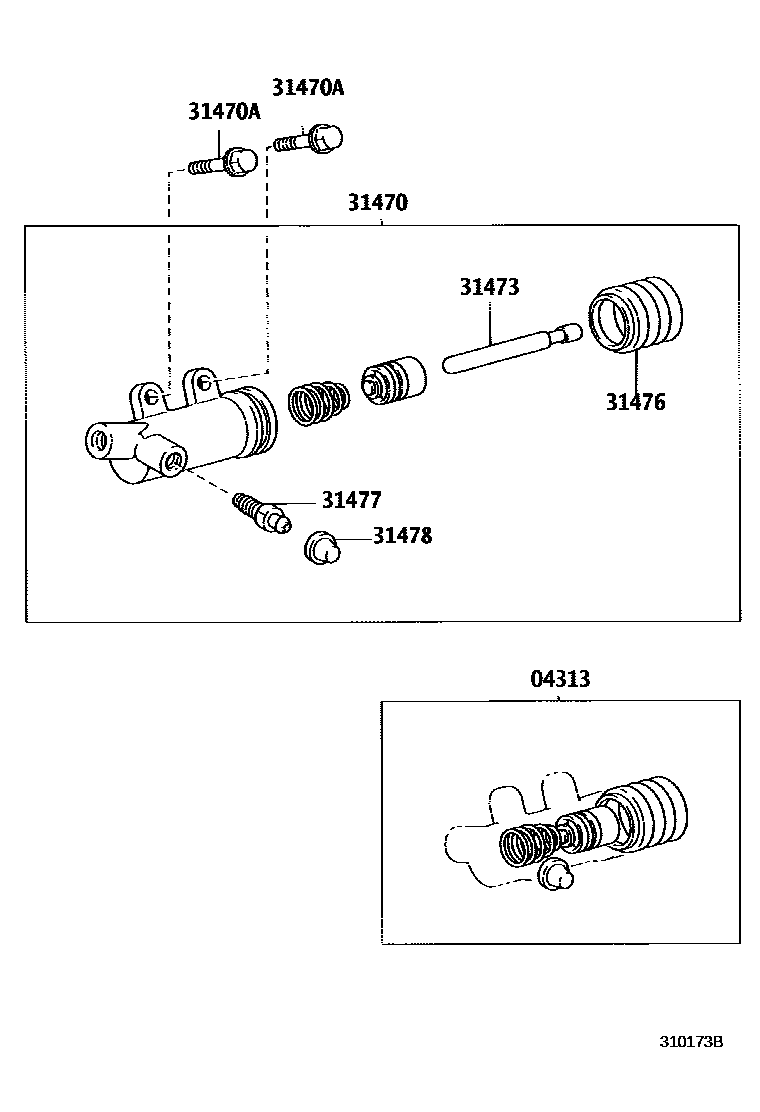

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLY230..SA200107-202111

main04313-22030iKDY221,231..GEN;KDY220,230,250,260200108-201310

main04313-25070iKDY221,231,251,261..EUR200905

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25040iKDY221,231,251,261..EUR200108-201310

main31470-30222iLY22#200107-201609

main31470-35110iLY230..SA200107-202111

main31470-35140iKDY221,231,251,261..EUR200905

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iKDY220..CBU;KDY220..LHD..IV3;KDY221,23#,25#,26#,LY22#,23#..ARL,EUR,GEN200107-202111

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iKDY220..RHD..IV3200108-201310

main31473-35050iLY230..SA200107-202111

main31473-52020iKDY221,231,251,261..EUR200905

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKDY220..RHD..IV3200107-202111

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iKDY220..RHD..IV3200107-202111

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iKDY220..RHD..IV3200107-202111

7 parts on this diagram · 2 diagrams in section
