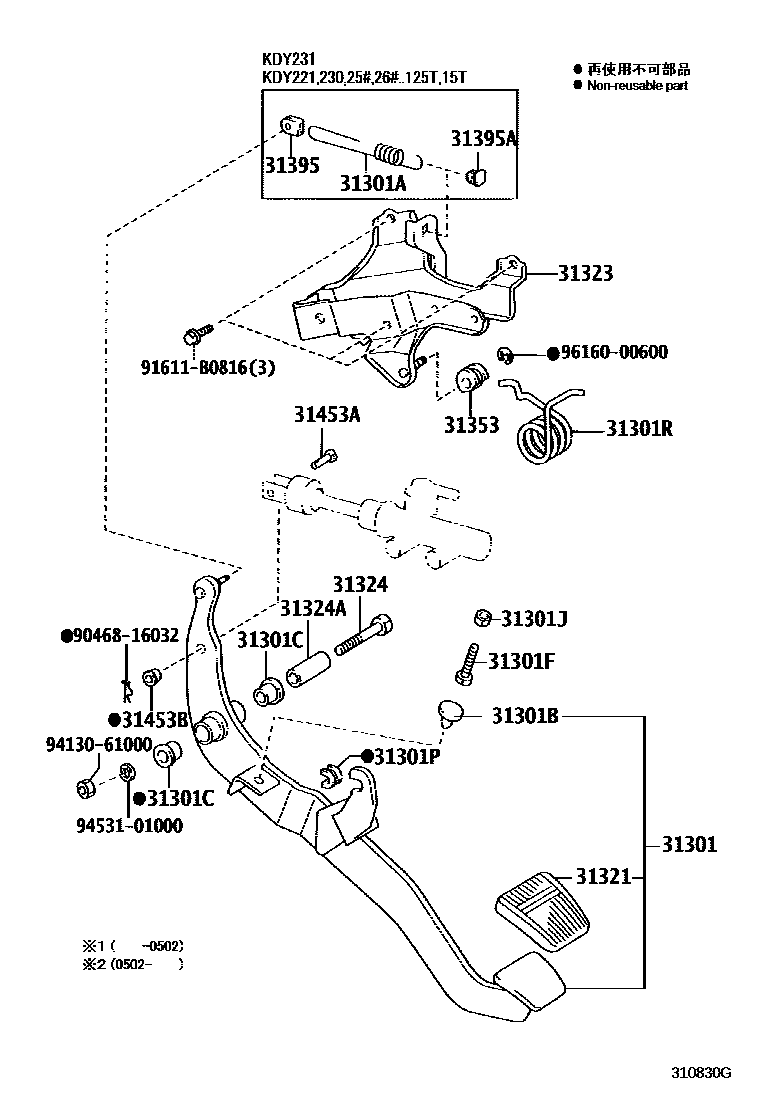

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0004 1 0006 1 0007 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-25090iLY230¥1,900201610-202111

main31301-25100iLY235..LHD¥1,900201610

main31310-25030iKDY220,230,250,LY22#,23#..RHD¥2,290200107-200501

sub31310-25050¥2,000

main31310-25040iKDY220,230,250,260,LY225,235..LHD¥2,290200107-200501

sub31310-25060¥2,000

main31310-25050iKDY22#,23#,25#,LY225,23#..RHD¥2,000200502-200904

sub31310-25070¥2,010

main31310-25060iKDY22#,23#,25#,26#,LY225,235..LHD¥2,000200502-200904

sub31310-25080

main31310-25070iKDY221,231..RHD..EUR;KDY251,LY225,230..RHD¥2,010200904-201701

main31310-25080iKDY221,231,251,261,LY225,235..LHD200904-201610

31301ASPRING(FOR CLUTCH PEDAL)

main90905-06079iKDY231;KDY221,230,25#,26#..125T,15T¥240200108-201610

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iLY230¥110200107-202111

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iLY235..ST;KDY221,231..GEN¥160200107-201701

main90386-13015iLY235..RHD¥120201610-202111

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iLY235..RHD..ST;KDY221,231,251,LY225,230..RHD..(EUR,GEN,SA)¥160200107-200905

main91111-41035iKDY221,231,251..RHD..EUR¥100200903-201701

main91551-80825iLY235..RHD¥80201610-202111

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iLY225,230..RHD¥80200903-201701

main94130-60800iKDY221,231;LY235..LHD¥60200107-202111

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iLY225;LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA¥110200107-201701

main90389-06055iLY235..RHD¥100201610-202111

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main31316-25020iKDY221,231¥860201610

main31316-25030iLY235..RHD¥620201610-202111

main90949-03107iKDY231;KDY221,230,25#,26#..125T,15T¥590200108-201610

main90949-03108iLY235..ST¥590200107-201701

31321PAD, CLUTCH PEDAL

main31321-14020iKDY22#,23#,25#,26#,LY22#,23#¥200200107-201703

main31321-52020iKDY221,231;LY235..LHD¥200201704-202111

31323BRACKET, CLUTCH PEDAL

main55107-25030iLY235..ST;KDY221,231,LY225,230..GEN,SA¥3,370200107-200907

main55107-25040iLY225¥3,350200905-201610

31324SHAFT, CLUTCH PEDAL

main91112-61070iLY235..ST;KDY221,231..GEN¥260200107-201701

main91552-81060iLY235..RHD¥160201610-202111

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iLY235..RHD¥370201610-202111

main90387-10004iLY225;LY235..WT;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA¥210200107-201701

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iLY235..ST;KDY221,231..GEN¥280200107-201701

main31353-35010iLY235..RHD¥660201610-202111

31395HOOK, PEDAL SPRING

main31395-33010iKDY231;KDY221,230,25#,26#..125T,15T¥160200108-201610

31395AHOOK, PEDAL SPRING, NO.1

main31395-33020iKDY231;KDY221,230,25#,26#..125T,15T¥90200108-201610

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLY230..SA;LY235..RHD..ST¥160200107-202111

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLY235..WT;LY235..LHD;KDY22#,23#,25#,26#,LY22#,230..ARL,EUR,GEN¥240200107-202111

9046816032

main90468-16032¥80

91611B0816

main91611-B0816¥140

9413061000

main94130-61000¥70

9453101000

main94531-01000¥90

9616000600

main96160-00600¥80

22 parts on this diagram · 5 diagrams in section
