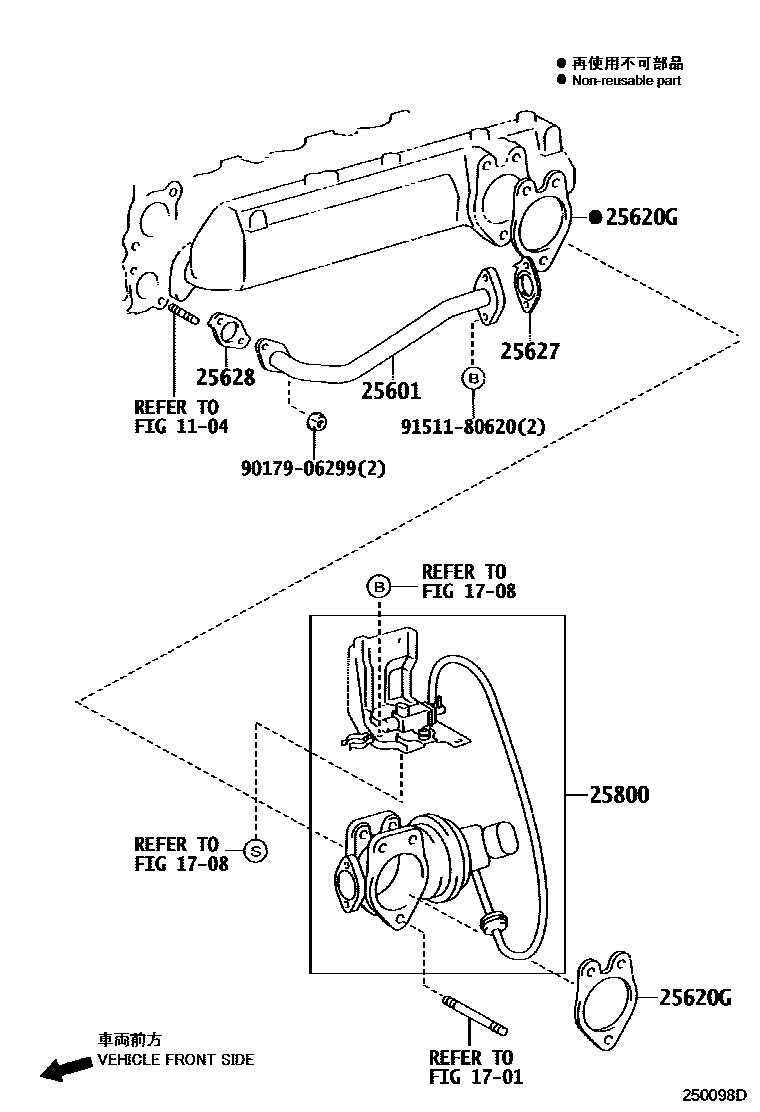

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0004 1 0005 1 0007 1

1104

1701

1708

25601PIPE SUB-ASSY, EGR, NO.1

main25601-30020i2KDFTV..KDY220,230,250,260200108-200610

main25601-30090i1KDFTV..KDY221,231,251,261..EUR200905-201109

sub25601-30091

main25601-54061i5L..LY235..WT200107-202111

25620GGASKET, DIESEL THROTTLE

main26171-30011i2KDFTV..KDY220,230,250,260200108-200210

sub26171-30012

main26171-30012i2KDFTV..KDY220,230,250,260200210-200403

sub26171-30013

main26171-30013i2KDFTV..KDY220,230,250,260200403-200610

25627GASKET, EGR VALVE

main25627-30010i1KDFTV..KDY221,231..GEN;2KDFTV..KDY220,230,250,260200108-201310

main25627-30070i1KDFTV..KDY221,231,251,261..EUR201109

main25627-54011i5L..LY220,230..ARL200107-202111

25628GASKET, EGR INLET

main25628-30010i1KDFTV..KDY221,231,251,261..EUR200108-201008

main25628-30060i1KDFTV..KDY221,231..GEN201008

main25628-54012i5L..LY230200107-202111

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-30030i2KDFTV..KDY220,230,250,260200108-200610

main25800-30140i1KDFTV..KDY221,231,251,261..EUR200609-201310

main25800-30150i1KDFTV..KDY221,231,251,261..EUR200905-201109

main25800-30200i1KDFTV..KDY221,231..GEN201109

main25800-54240i5L..LY235..WT200107-202111

9017906299

main90179-06299

9151180620

main91511-80620

10 parts on this diagram · 5 diagrams in section
