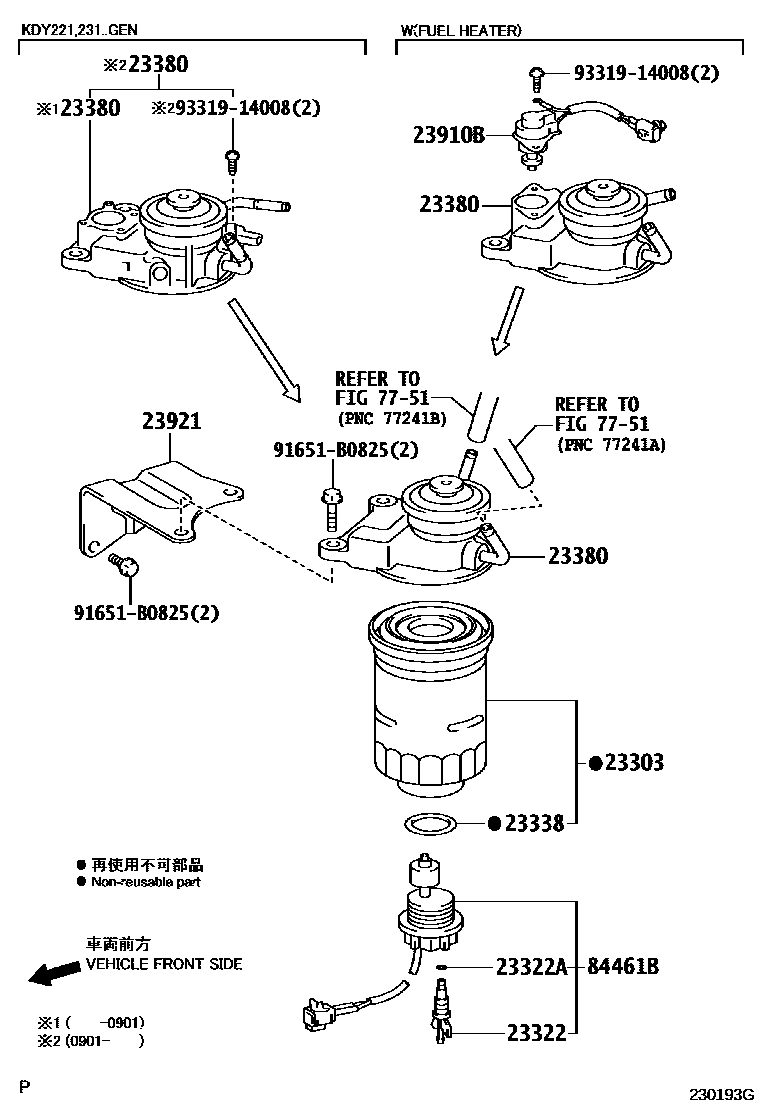

FUEL FILTER

0001 1 0003 1

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-30090i1KDFTV..KDY221,231,251,261..EUR200812-201502

W(FUEL HEATER)

main23390-30180i1KDFTV,2KDFTV..KDY22#,23#,25#,26#..EUR200404-200812

W(FUEL HEATER)

main23390-30180i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200404

main23390-64480i5L..LY22#,23#200107-202111

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200107-202111

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i5L..LY235..ST;5L..LY225,230..GEN,SA200107-202111

23338GASKET(FOR WARNING SWITCH)

main23344-64010i5L..LY22#,23#200107-202111

23380CAP ASSY, FUEL FILTER

main23380-30080i1KDFTV,2KDFTV..KDY22#,23#,25#,26#..EUR200108-200812

sub23380-30081

main23380-30081i1KDFTV..KDY221,231,251,261..EUR200812-201502

main23380-30090i1KDFTV,2KDFTV..KDY22#,23#,25#,26#..EUR200108-200812

W(FUEL HEATER)

sub23380-30091

main23380-30091i1KDFTV..KDY221,231,251,261..EUR200812-201502

W(FUEL HEATER)

main23380-30320i1KDFTV..KDY221,231..GEN200609-200901

sub23380-30321

main23380-30321i1KDFTV..KDY221,231..GEN200901

main23380-5B240i5L..LY22#,23#200107-200901

sub23380-5B241

main23380-5B241i5L..LY225,23#200901-202111

23910BHEATER ASSY, FUEL

main23910-67060i1KDFTV,2KDFTV..KDY22#,23#,25#,26#..EUR200108-201502

23921SUPPORT, FUEL FILTER

main23921-54510i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200107-202111

main23921-54520i5L..LY225,235200107

7751

84461BSWITCH, LEVEL WARNING

main84461-28040iLY22#,23#200107-201202

sub84461-28041

main84461-28041iLY225,23#201203-202111

91651B0825

main91651-B0825

9331914008

main93319-14008

11 parts on this diagram · 2 diagrams in section
