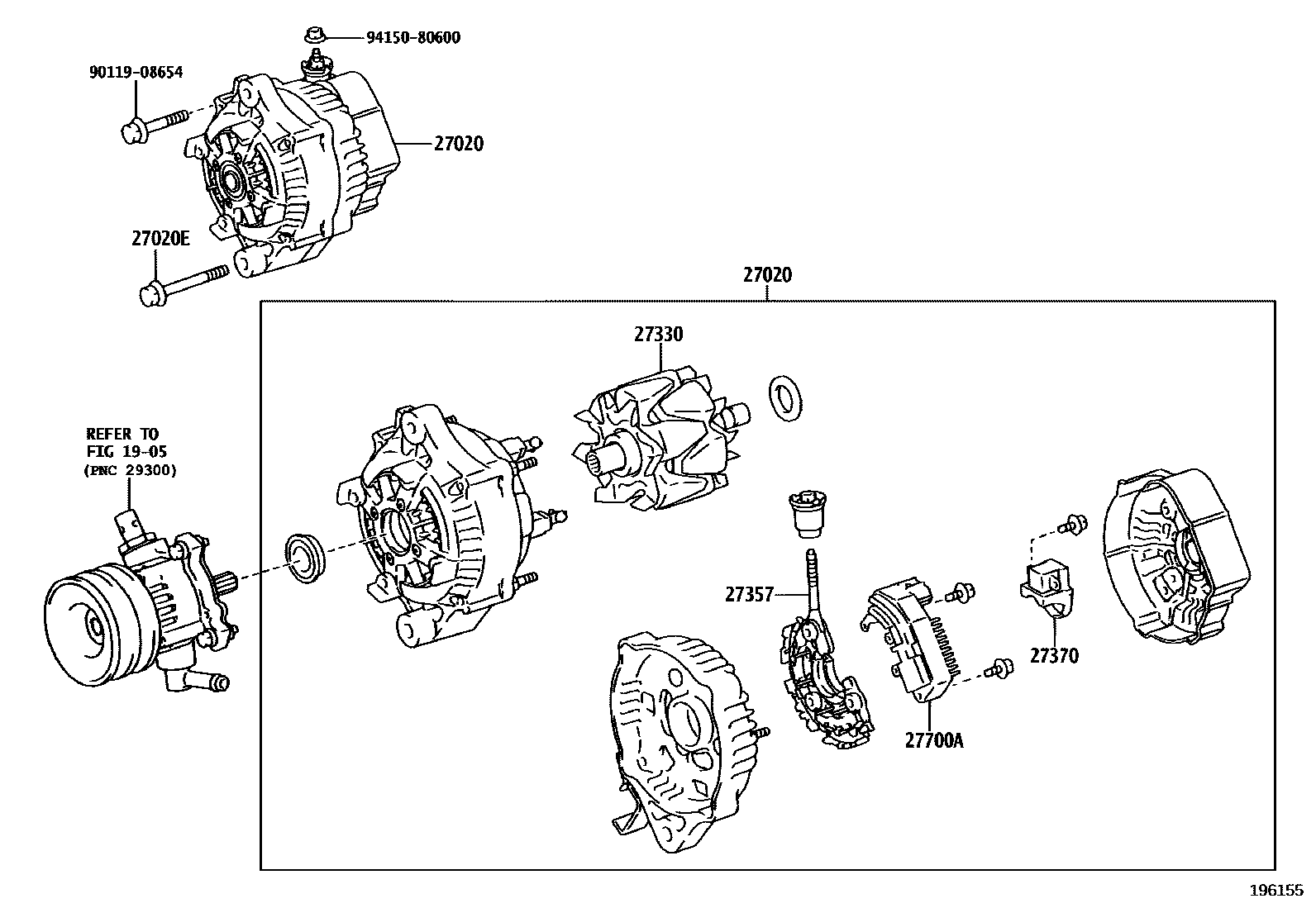

ALTERNATOR

0001 112V 70,90A 0002 112V 70A 0003 112V 100A

1905

27020ALTERNATOR ASSY

main27060-30020i2KDFTV..KDY220,230,250,260200108-200610

12V 70A

main27060-30130i1KDFTV..KDY221,231,251,261200609-201303

12V 100A

sub27060-30131

main27060-30131i1KDFTV..KDY221,231,251,261201304

12V 100A

main27060-30160i1KDFTV..KDY221,231,251,261..EUR200609-201109

12V 100A,BATTERY=85D26L X2

main27060-54340i5L..LY225,23#..GEN,SA200107-202111

12V 70A

main27060-54350i5L..LY220,230..ARL200107-200412

12V 90A

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

main90105-10287i5L..LY22#,23#200107-202111

27330ROTOR ASSY, ALTERNATOR

main27330-30070i1KDFTV..KDY221,231,251,261200609

main27330-64190i5L..LY225,23#..GEN,SA200107-202111

main27330-64300i5L..LY220,230..ARL200107-200412

main27330-67100i2KDFTV..KDY220,230,250,260200108-200610

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i5L..LY220,230..ARL200107-200412

main27357-55080i5L..LY225,23#..GEN,SA200107-202111

main27357-67100i2KDFTV..KDY220,230,250,260200108-200610

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58320i2KDFTV..KDY220,230,250,260200108-200610

main27370-58460i1KDFTV..KDY221,231,251,261200609

main27370-75060i5L..LY22#,23#200107-202111

27700AREGULATOR ASSY, GENERATOR

main27700-30070i2KDFTV..KDY220,230,250,260200108-200610

main27700-50030i5L..LY225,23#..GEN,SA200107-201003

main27700-62030i5L..LY220,230..ARL200107-202111

9011908654

main90119-08654

9415080600

main94150-80600

9 parts on this diagram · 3 diagrams in section
