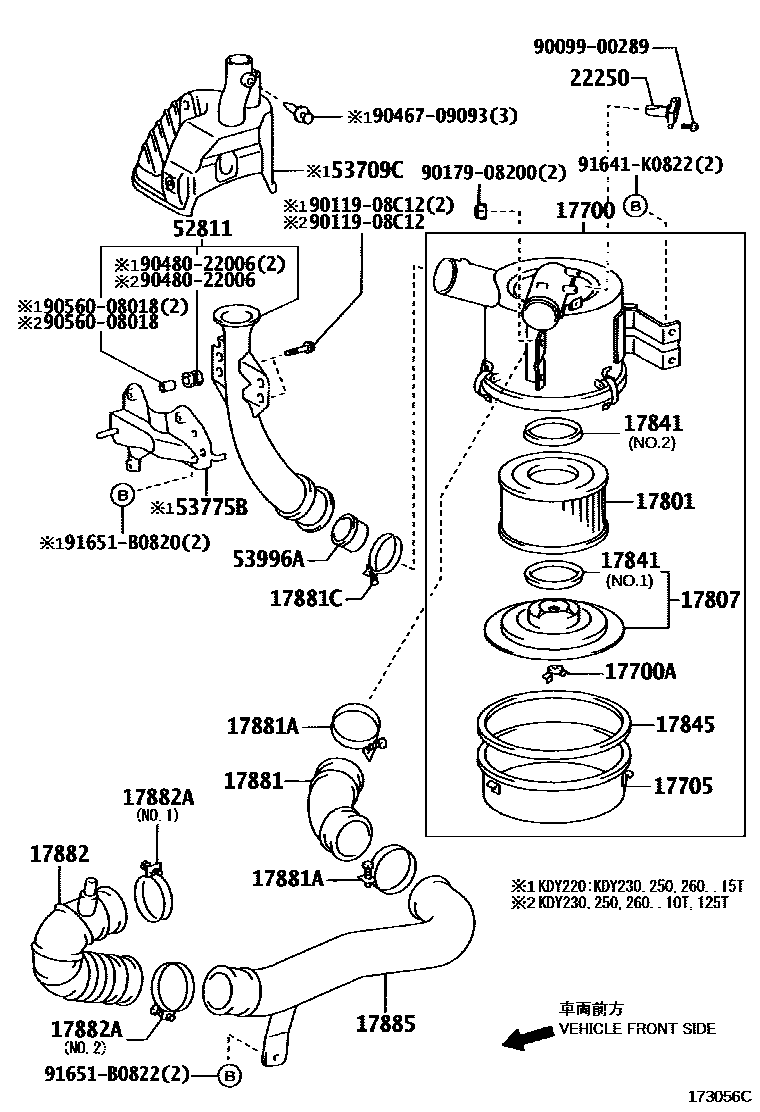

AIR CLEANER

0001 1 0002 1 0003 1 0005 1 0006 1 0008 1 0009 1 0011 1 0012 1W(PRECLEANER)

17700CLEANER ASSY, AIR

main17700-30080i2KDFTV..KDY220,230,250,260200108-200610

main17700-30200i1KDFTV..KDY221,231,251,261..EUR200609-201310

main17700-30241i1KDFTV..KDY221,231..GEN200905

main17700-5B210i5L..LY22#,23#200107-202111

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i5L..LY22#,23#200107-202111

17705CAP SUB-ASSY, AIR CLEANER

main17705-30110i1KDFTV..KDY221,231..GEN200905

main17705-54490i1KDFTV..KDY221,231..GEN;2KDFTV..KDY220,230,250,260200107-202111

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-58010i5L..LY22#,23#200107-202111

main17801-68030i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-54040i5L..LY22#,23#200107-202111

main17807-58020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

17841GASKET, FILTER ELEMENT

main17841-30030i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

NO.2

main17841-44030i5L..LY22#,23#200107-202111

NO.1

main17841-54020i5L..LY22#,23#200107-202111

NO.2

main17841-68010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

NO.1

17845GASKET, AIR CLEANER CAP

main17845-54030i5L..LY22#,23#200107-202111

17881HOSE, AIR CLEANER, NO.1

main17881-30040i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

main17881-54790i5L..LY220,230200107-202111

main17881-54800i5L..LY225,235200107

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i5L..LY230..SA200107-202111

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10780i2KDFTV..KDY220,230,250,260200109-202111

main96111-10800i5L..LY22#,23#200107-200109

main96111-10880i1KDFTV..KDY221,231,251,261200609

17882HOSE, AIR CLEANER, NO.2

main17882-30030i2KDFTV..KDY220,230,250,260200108-200610

main17882-30060i1KDFTV..KDY221,231,251,261..EUR200609-200905

main17882-30080i1KDFTV..KDY221,231,251,261..EUR200905-201109

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10650i2KDFTV..KDY220,230,250,260200108-200610

NO.1

main96111-10750i2KDFTV..KDY220,230,250,260200108-200610

NO.2

main96111-10800i1KDFTV..KDY221,231,251,261200609

NO.1

main96111-10850i1KDFTV..KDY221,231,251,261200609

NO.2

17885PIPE, AIR CLEANER

main17885-30010i2KDFTV..KDY220,230,250,260200108-200610

main17885-30040i1KDFTV..KDY221,231,251,261200609

22250METER ASSY, INTAKE AIR FLOW

main22204-30010i1KDFTV..KDY221,231,251,261..EUR200108-201310

main22204-30020i1KDFTV..KDY221,231..GEN200905

52811DUCT, COOL AIR INTAKE, NO.1

main52811-25010iLY22#,23#200107-202111

main52811-25020iKDY230,250,260..10T,125T200108-200609

main52811-25030iKDY221;KDY231,251,261..15T200609

main52811-25040iKDY231,251,261..10T,125T200609-201502

53709CCOVER SUB-ASSY, AIR CLEANER INLET

main53767-25040iLY22#,23#200107-202111

53775BBRACKET, COOL AIR INTAKE DUCT MOUNTING

main53775-25010iLY22#,23#200107-202111

53996APACKING, AIR CLEANER INLET PIPE

main53996-25020iKDY220,230,250,260200108-200610

main53996-25020iLY22#,23#200107-202111

W(PRECLEANER)

main53996-25030iKDY221,231,251,261200609

9009900289

main90099-00289

9011908C12

main90119-08C12

9017908200

main90179-08200

9046709093

main90467-09093

9048022006

main90480-22006

9056008018

main90560-08018

91641K0822

main91641-K0822

91651B0820

main91651-B0820

91651B0822

main91651-B0822

27 parts on this diagram · 9 diagrams in section
