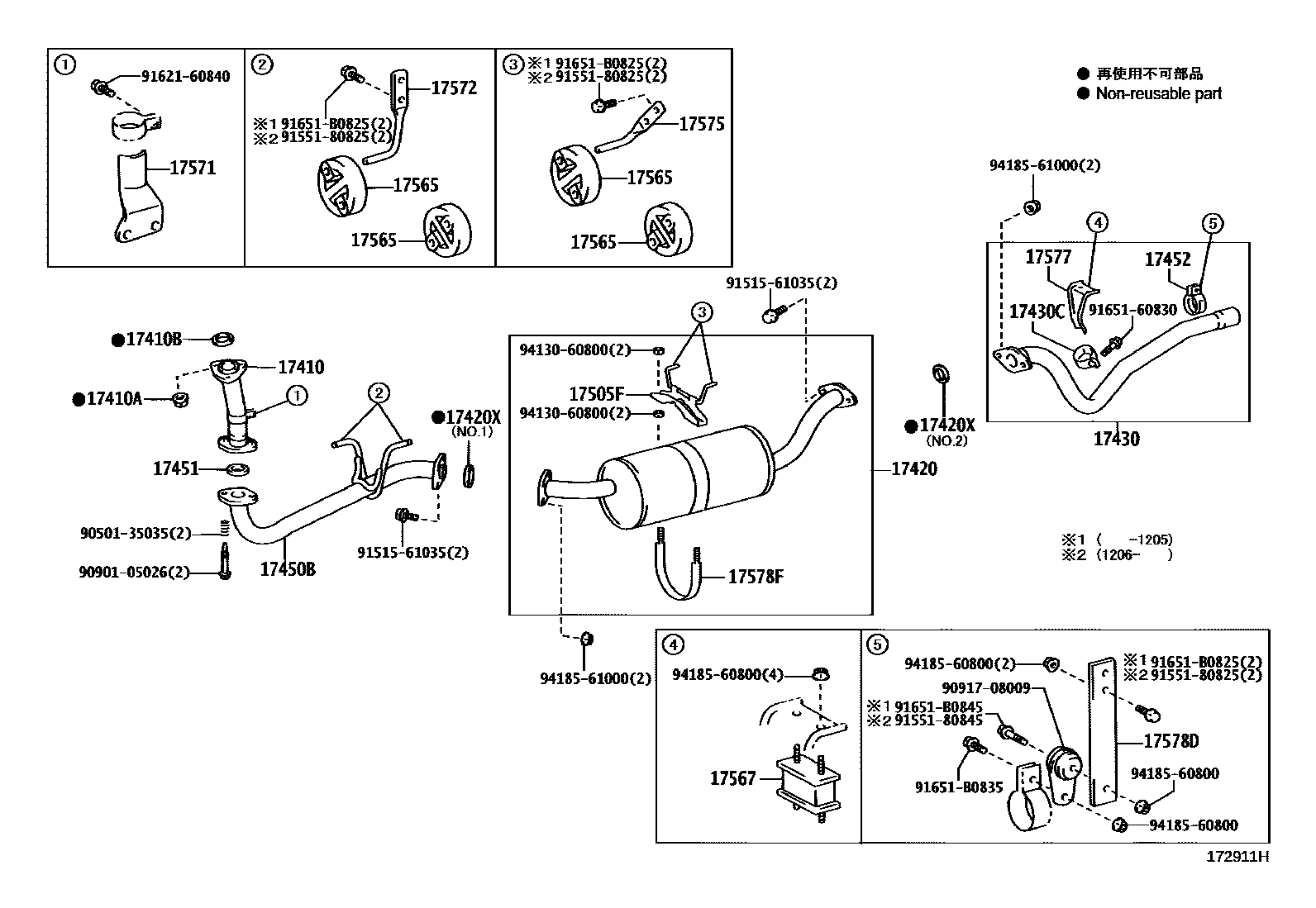

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0009 1 0010 1 0011 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-30020i2KDFTV..KDY220,250200108-200610

main17410-30030i2KDFTV..KDY230,260200108-200609

main17410-30160i1KDFTV..KDY221..GEN200609-201310

*114=TOYOTA/AD6AD7/Y

main17410-30170i1KDFTV..KDY231,261..EUR200609-201310

*114=TOYOTA/AD6AD7/Y

main17410-30300i1KDFTV..KDY221,251..EUR200905-201109

*114=TOYOTA/UC1/Y

main17410-30310i1KDFTV..KDY231,261..EUR200905-201109

*114=TOYOTA/UC1/Y

main17410-30320i1KDFTV..KDY221,231..GEN201109

*114=TOYOTA/ZA9/Y

main17410-5B400i5L..LY22#,23#200107-202111

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i5L..LY22#,23#200107-202111

17410BGASKET, EXHAUST PIPE

main17451-67020i1KDFTV..KDY221,231..GEN;2KDFTV..KDY220,230,250,260200108-201310

main17451-74040i1KDFTV..KDY221,231,251,261..EUR200905

main90917-06066i5L..LY22#,23#200107-202111

17420PIPE ASSY, EXHAUST, CENTER

main17420-0L050i1KDFTV..KDY251,261201109-201502

CKD PACKAGE

main17420-30030i2KDFTV..KDY220,230,250,260200108-200610

main17420-30120i1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR200609-201310

main17420-30200i1KDFTV..KDY221..GEN201109

*114=TOYOTA/X56/Y

main17420-30210i1KDFTV..KDY231..GEN201109

*114=TOYOTA/X56/Y

main17420-30270i1KDFTV..KDY251,261201109-201502

main17420-54190i5L..LY220,230..ARL200107-202111

main17420-54200i5L..LY230..SA200107-200911

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06045i5L..LY22#,23#200107-202111

NO.1

main90917-06076i1KDFTV..KDY221,231,251,261200609

main90917-06078i2KDFTV..KDY220,230,250,260200108-200610

main90917-06078i5L..LY22#,23#200107-202111

NO.2

17430PIPE ASSY, EXHAUST, TAIL

main17430-30110i1KDFTV..KDY221..EUR..CBU;1KDFTV..KDY221..LHD..IV3;1KDFTV..KDY231,251,261..EUR200609-201310

main17430-30120i1KDFTV..KDY221,231,251,261..EUR201109

main17430-5D240i5L..LY22#,23#200107-202111

main17430-75600i2KDFTV..KDY220,230,250,260200108-200610

17430CCLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT)

main90461-32007i2KDFTV,5L..KDY220,230,250,260,LY22#,23#200107-202111

main90461-32037i1KDFTV..KDY221..RHD..IV3200609

17450BPIPE ASSY, EXHAUST, FRONT NO.2

main17450-30010i1KDFTV,2KDFTV..KDY25#200108-201109

main17450-30020i1KDFTV,2KDFTV..KDY26#200108-201109

main17450-30031i1KDFTV..KDY251201109-201502

*114=TOYOTA/X56/Y

main17450-30040i1KDFTV..KDY261201109-201502

*114=TOYOTA/X56/Y

main17450-54010i5L..LY22#200107-201609

main17450-54030i5L..LY23#200107-202111

17451GASKET, EXHAUST PIPE

main17451-16030i5L..LY22#,23#200107-202111

main90917-06078i1KDFTV..KDY221,231..EUR200108-201502

17452CLAMP, EXHAUST PIPE

main17452-30010i1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3200609

main17452-54011i2KDFTV,5L..KDY220,230,250,260,LY22#,23#200107-202111

17505FSUPPORT SUB-ASSY, EXHAUST PIPE

main17505-54220i5L..LY225,235200107-200911

main17505-54240i1KDFTV..KDY221,231..GEN200107-202111

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-31040i1KDFTV..KDY221,231..GEN200705-202111

main17565-74290i1KDFTV,2KDFTV,5L..KDY22#,23#,LY22#,23#200107-200704

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-35010i5L..LY230..SA;5L..LY235..ST200107-202111

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-54570i5L..LY22#,23#200107-202111

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-54270i1KDFTV..KDY221,231..EUR200107-202111

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-30030i5L..LY23#201008-202111

main17575-71050i1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23#200107-201007

17577BRACKET, EXHAUST PIPE SUPPORT, NO.7

main17577-30010i1KDFTV..KDY221..CBU;1KDFTV..KDY231,251,261;1KDFTV..KDY221..LHD..IV3200609

main17577-54050i2KDFTV,5L..KDY220,230,250,260,LY22#,23#200107-202111

17578DBRACKET, EXHAUST PIPE SUPPORT, NO.8

main17578-54020i5L..LY235..WT;1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,230..ARL,EUR,GEN200107-202111

17578FCLAMP, PIPE(FOR CENTER PIPE)

main17578-54030i1KDFTV..KDY221,231,251,261..EUR200107-202111

main17578-54040i5L..LY230..SA200107-200911

9050135035

main90501-35035

9090105026

main90901-05026

9091708009

main90917-08009

9151561035

main91515-61035

9155180825

main91551-80825

9155180845

main91551-80845

9162160840

main91621-60840

9165160830

main91651-60830

91651B0825

main91651-B0825

91651B0835

main91651-B0835

91651B0845

main91651-B0845

9413060800

main94130-60800

9418560800

main94185-60800

9418561000

main94185-61000

33 parts on this diagram · 9 diagrams in section
