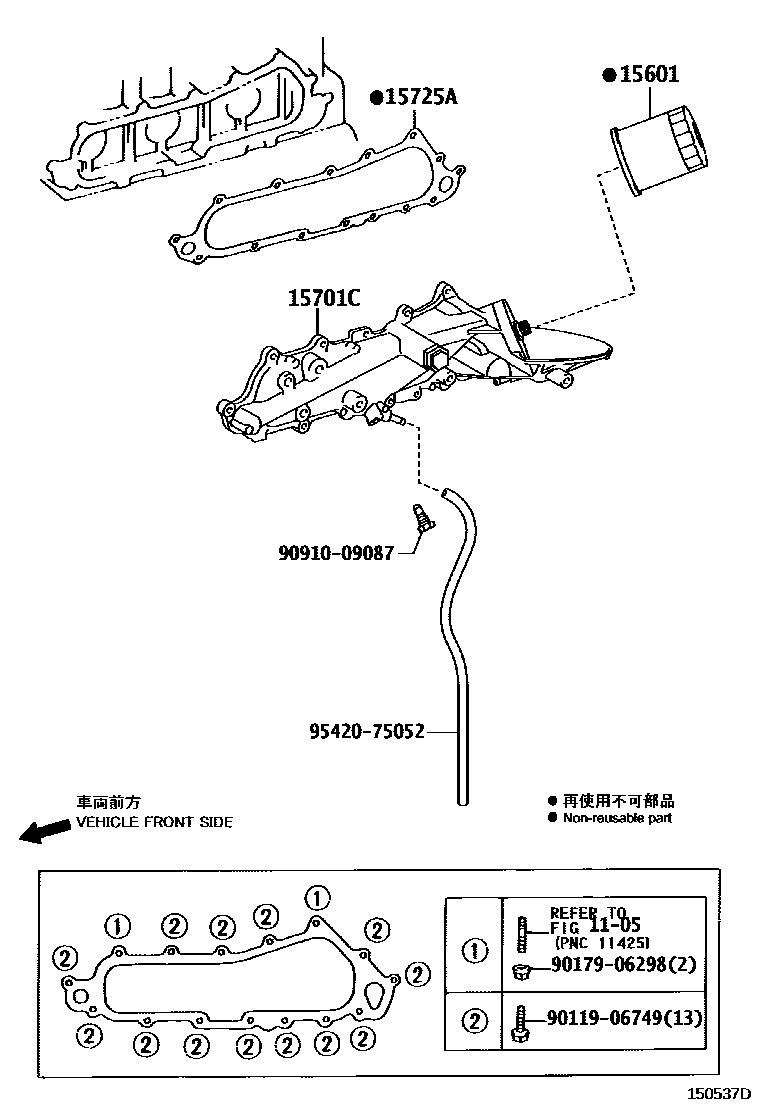

OIL FILTER

0001 1 0002 1 0005 1 0006 1 0008 1

1105

15601FILTER SUB-ASSY, OIL

main15600-41010i5L..LY235..ST;5L..LY22#,230..ARL,GEN200107-202004

sub90915-40002

main90915-20003i1KDFTV..KDY221,231,251,261200609-202009

sub90915-20005

main90915-20005i1KDFTV..KDY221,231202010

main90915-30002i5L..LY23#..WT..(GEN,SA)200107-202111

main90915-30003i2KDFTV..KDY220,230,250,260200108-200610

main90915-40002i5L..LY235202004

15701CCOVER SUB-ASSY, OIL COOLER

main15701-30020i2KDFTV..KDY220,230,250,260200108-200405

sub15701-30021

sub95420-06052

main15701-30021i2KDFTV..KDY220,230,250,260200405-200610

main15701-30060i1KDFTV..KDY221,231..GEN200609-201310

main15701-30100i1KDFTV..KDY221,231,251,261..EUR200905-201109

main15701-30110i1KDFTV..KDY221,231,251,261..EUR201109-201509

sub15701-30111

main15701-30111i1KDFTV..KDY221,231201510

15725AGASKET, OIL COOLER COVER

main15725-67010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

9011906749

main90119-06749

9017906298

main90179-06298

9091009087

main90910-09087

9542075052

main95420-75052

8 parts on this diagram · 5 diagrams in section
