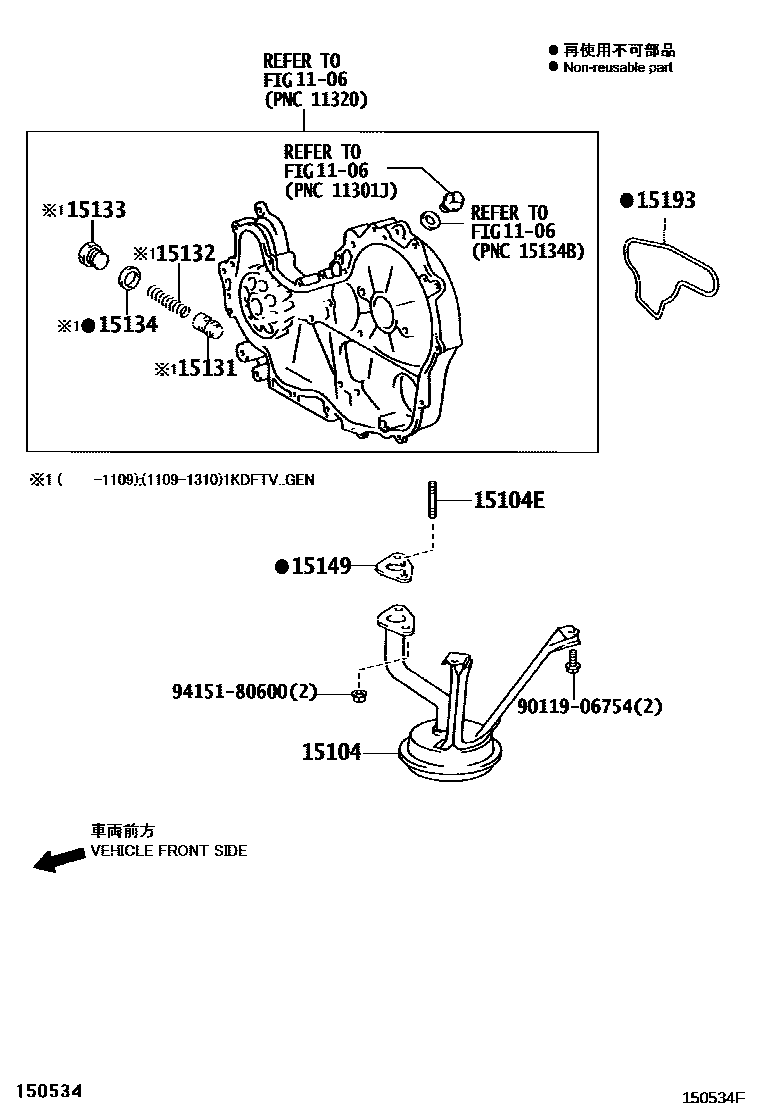

ENGINE OIL PUMP

0001 1 0003 1

1106

15104STRAINER SUB-ASSY, OIL

main15104-54161i5L..LY22#,23#200107-200308

main15104-54240i5L..LY22#,23#200308-202111

main15104-67060i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

main92122-40816i5L..LY22#,23#200107-200208

main92122-80816i5L..LY22#,23#200208-202111

15131VALVE, OIL PUMP RELIEF

main15131-46040i1KDFTV..KDY221,231..GEN;2KDFTV..KDY220,230,250,260200108-201310

main15131-54010i5L..LY22#,23#200107-202111

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KDFTV..KDY221,231,251,261..EUR200108-201310

main15132-54010i5L..LY22#,23#200107-202111

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KDFTV..KDY221,231,251,261..EUR200108-201310

main15133-54010i5L..LY22#,23#200107-202111

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1KDFTV..KDY221,231,251,261..EUR200108-201310

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

15193GASKET, OIL PUMP

main15193-67011i1KDFTV,2KDFTV..KDY22#,23#,25#,26#200108

9011906754

main90119-06754

9415180600

main94151-80600

11 parts on this diagram · 2 diagrams in section
