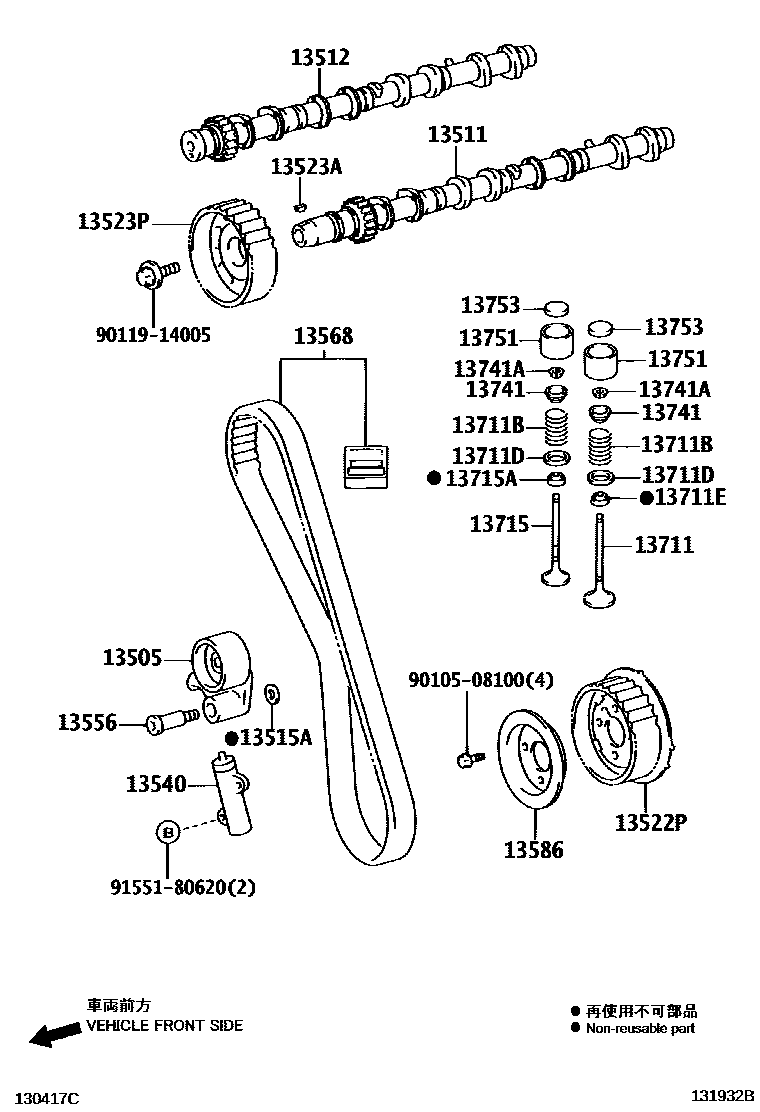

CAMSHAFT & VALVE

0001 1 0003 1

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-54021i5L..LY22#,23#¥3,790200107-202111

main13505-67040i2KDFTV..KDY220,230,250,260¥3,400200108-200406

sub13505-67041¥2,950

main13505-67041i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥2,950200406-201406

sub13505-67042¥2,680

main13505-67042i1KDFTV..KDY221,231,251,261¥2,680201407

13511CAMSHAFT

main13501-30020i1KDFTV..KDY221,231,251,261..EUR¥28,300200609-201310

main13501-30030i2KDFTV..KDY220,230,250,260¥25,300200108-200610

main13501-30060i1KDFTV..KDY221,231,251,261..EUR¥31,100201109

main13501-54070i5L..LY22#,23#¥26,100200107-202111

13512CAMSHAFT, NO.2

main13502-30010i1KDFTV..KDY221,231,251,261..EUR¥28,300200609-201310

main13502-30020i2KDFTV..KDY220,230,250,260¥25,300200108-200610

main13502-30050i1KDFTV..KDY221,231,251,261..EUR¥31,100201109

13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)

main90201-10124i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥180200108

13522PPULLEY, PUMP DRIVE SHAFT

main13524-30010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥4,460200108

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i5L..LY22#,23#¥230200107-202111

13523PPULLEY, CAMSHAFT TIMING

main13523-17010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥2,100200108

main13523-54040i5L..LY22#,23#¥5,300200107-202111

13540TENSIONER ASSY, CHAIN, NO.1

main13540-30010i1KDFTV..KDY221,231,251,261..EUR¥5,300201109

main13540-67020i1KDFTV..KDY221,231,251,261..EUR¥4,780200108-201310

13556SHAFT, TIMING BELT IDLER

main13556-67010i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥1,050200108

13568BELT, TIMING

main13568-39015i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥4,340200108-201003

sub13568-39016¥3,410

main13568-39016i1KDFTV..KDY221,231,251,261¥3,410201003

main13568-59066i5L..LY22#,23#¥5,300200107-200305

sub13568-59067¥5,300

sub13568-59106¥4,590

main13568-59105i5L..LY22#,23#¥5,300200305-200307

sub13568-59106¥4,590

main13568-59106i5L..LY235..ST;5L..LY225,230..GEN,SA¥4,590200307-201310

sub13568-59175¥4,170

main13568-59175i5L..LY23#¥4,170201310-201609

13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2

main13586-17020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥1,720200108

13711VALVE, INTAKE

main13711-30030i1KDFTV..KDY221,231,251,261¥1,420200609

main13711-30040i2KDFTV..KDY220,230,250,260¥1,420200108-200610

main13711-54030i5L..LY22#,23#¥1,420200107-202111

13711BSPRING, COMPRESSION(FOR INNER)

main90501-28040i1KDFTV..KDY221,231,251,261..EUR¥240201109

main90504-49001i5L..LY22#,23#¥510200107-202111

main90905-01077i1KDFTV..KDY221,231,251,261..EUR¥200200108-201310

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16023i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥90200108

main90201-23003i5L..LY22#,23#¥160200107-202111

13711ESEAL, INTAKE VALVE STEM OIL

main90913-02121i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥370200108

13715VALVE, EXHAUST

main13715-30030i1KDFTV..KDY221,231,251,261¥1,980200609

main13715-30040i2KDFTV..KDY220,230,250,260¥1,980200108-200610

main13715-54050i5L..LY22#,23#¥1,980200107-202111

13715ASEAL, EXHAUST VALVE STEM OIL

main90913-02121i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥370200108

13741RETAINER, VALVE SPRING

main13741-15020i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥240200108

main13741-54020i5L..LY22#,23#¥260200107-202111

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i5L..LY22#,23#¥200200107-202111

main90913-03021i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥180200108

13751LIFTER, VALVE

main13751-46030i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.06

main13751-46040i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.08

main13751-46050i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.10

main13751-46060i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.12

main13751-46070i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.14

main13751-46080i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.16

main13751-46090i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.18

main13751-46100i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.20

main13751-46110i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.22

main13751-46120i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.24

main13751-46130i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.26

main13751-46140i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.28

main13751-46150i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.30

main13751-46160i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.32

main13751-46170i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.34

main13751-46180i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.36

main13751-46190i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.38

main13751-46200i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.40

main13751-46210i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.42

main13751-46220i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.44

main13751-46230i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.46

main13751-46240i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.48

main13751-46250i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.50

main13751-46260i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.52

main13751-46270i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.54

main13751-46280i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.56

main13751-46290i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.58

main13751-46300i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.60

main13751-46310i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.62

main13751-46320i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.64

main13751-46330i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.66

main13751-46340i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.68

main13751-46350i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.70

main13751-46360i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.72

main13751-46370i1KDFTV,2KDFTV..KDY22#,23#,25#,26#¥860200205

T=5.74

main13751-54010i5L..LY22#,23#¥1,860200107-202111

main13751-74020i2KDFTV..KDY220,230,250,260¥1,360200108-200205

13753SHIM, VALVE ADJUSTING

main13753-30010i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.525

main13753-30020i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.550

main13753-30030i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.575

main13753-30040i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.600

main13753-30050i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.625

main13753-30060i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.650

main13753-30070i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.675

main13753-30080i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.700

main13753-30090i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.725

main13753-30100i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.750

main13753-30110i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.775

main13753-30120i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.800

main13753-30130i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.825

main13753-30140i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.850

main13753-30150i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.875

main13753-30160i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.900

main13753-30170i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.925

main13753-30180i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.950

main13753-30190i2KDFTV..KDY220,230,250,260¥590200108-200205

T=2.975

main13753-30200i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.000

main13753-30210i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.025

main13753-30220i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.050

main13753-30230i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.075

main13753-30240i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.100

main13753-30250i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.125

main13753-30260i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.150

main13753-30270i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.175

main13753-30280i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.200

main13753-30290i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.225

main13753-30300i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.250

main13753-30310i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.275

main13753-30320i2KDFTV..KDY220,230,250,260¥590200108-200205

T=3.300

main13753-54010i5L..LY22#,23#¥390200107-202111

T=2.50,MARK=T01

main13753-54060i5L..LY22#,23#¥390200107-202111

T=2.60,MARK=T06

main13753-54110i5L..LY22#,23#¥390200107-202111

T=2.70,MARK=T11

main13753-54160i5L..LY22#,23#¥390200107-202111

T=2.80,MARK=T16

main13753-54210i5L..LY22#,23#¥390200107-202111

T=2.90,MARK=T21

main13753-54260i5L..LY22#,23#¥390200107-202111

T=3.00,MARK=T26

main13753-54310i5L..LY22#,23#¥390200107-202111

T=3.10,MARK=T31

main13753-54360i5L..LY22#,23#¥390200107-202111

T=3.20,MARK=T36

main13753-54410i5L..LY22#,23#¥390200107-202111

T=3.30,MARK=T41

main13753-54420i5L..LY22#,23#¥390200107-202111

T=2.55,MARK=T42

main13753-54430i5L..LY22#,23#¥390200107-202111

T=2.65,MARK=T43

main13753-54440i5L..LY22#,23#¥390200107-202111

T=2.75,MARK=T44

main13753-54450i5L..LY22#,23#¥390200107-202111

T=2.85,MARK=T45

main13753-54460i5L..LY22#,23#¥390200107-202111

T=2.95,MARK=T46

main13753-54470i5L..LY22#,23#¥390200107-202111

T=3.05,MARK=T47

main13753-54480i5L..LY22#,23#¥390200107-202111

T=3.15,MARK=T48

main13753-54490i5L..LY22#,23#¥390200107-202111

T=3.25,MARK=T49

9010508100

main90105-08100¥90

9011914005

main90119-14005¥350

9155180620

main91551-80620¥60

24 parts on this diagram · 2 diagrams in section
