CRANKSHAFT & PISTON

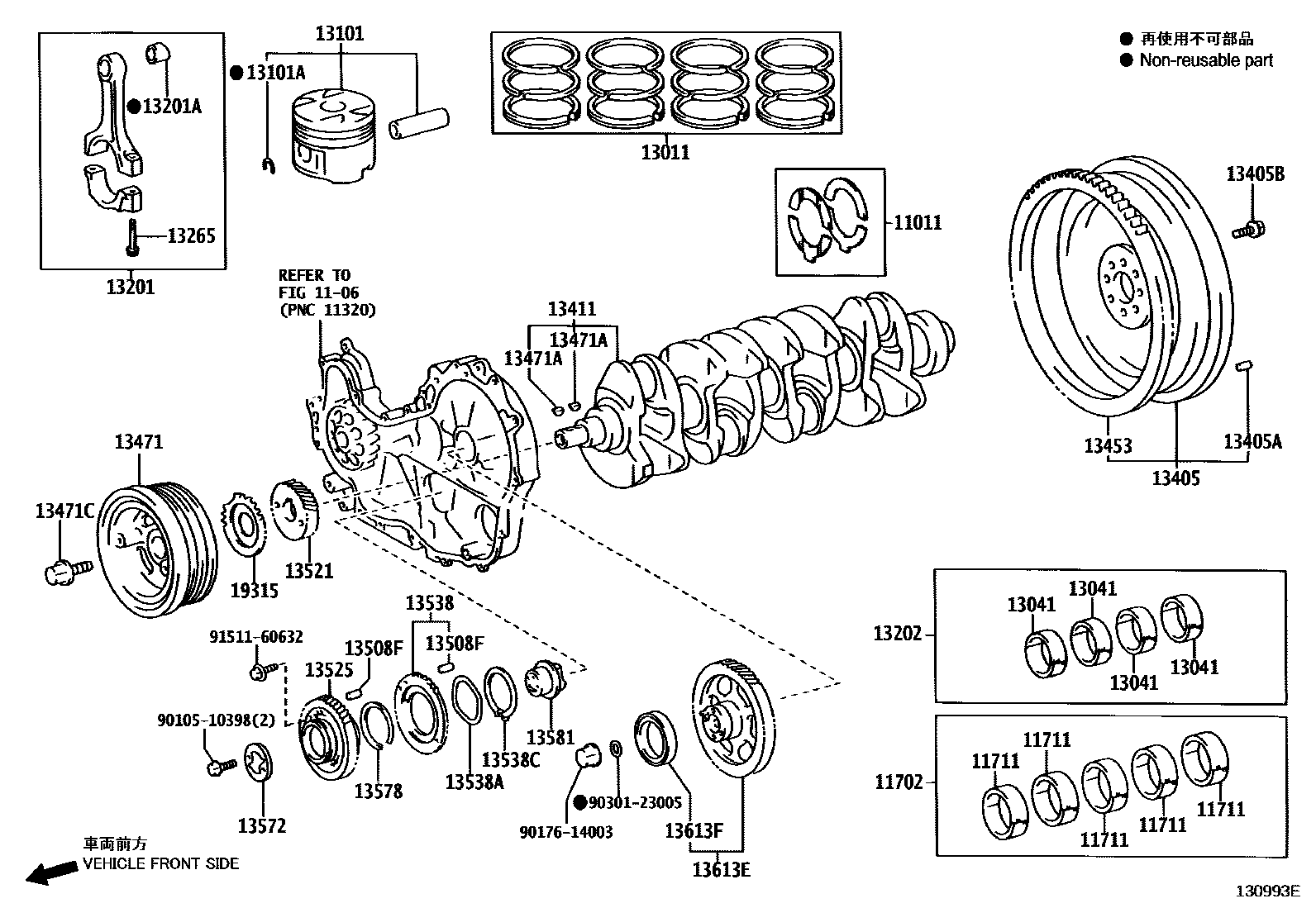

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-30010i200402
STD
main11011-54020i200107-202111
STD
main11011-67020i200108-200402
STD
main11012-30010i200402
O/S 0.125
main11012-54020i200107-202111
O/S 0.125
main11012-67020i200108-200402
O/S 0.125
sub11012-30010
main11013-30010i200402
O/S 0.250
main11013-54020i200107-202111
O/S 0.250
main11013-67020i200108-200402
O/S 0.250
sub11013-30010
1106
11702BEARING SET, CRANKSHAFT
main11704-30020i200402-200705
U/S 0.25
main11704-30030i200706-201710
U/S 0.25
main11704-54061i200107-200108
U/S 0.25
sub11704-54080
main11704-54080i200108-200801
U/S 0.25
sub11704-54081
main11704-54081i200801-202111
U/S 0.25
main11704-67021i200108-200402
U/S 0.25
sub11704-30020
main11705-30020i200402-200705
U/S 0.50
main11705-30030i200706-201710
U/S 0.50
main11705-54061i200107-200108
U/S 0.50
sub11705-54080
main11705-54080i200108-200801
U/S 0.50
sub11705-54081
main11705-54081i200801-202111
U/S 0.50
main11705-67021i200108-200402
U/S 0.50
sub11705-30020
11711BEARING, CRANKSHAFT
main11701-30020-02i200402-200706
MARK2,REFER REPAIR MANUAL
sub11701-30020
main11701-30020-03i200402-200706
MARK3,REFER REPAIR MANUAL
sub11701-30020
main11701-30020-04i200402-200706
MARK4,REFER REPAIR MANUAL
sub11701-30020
main11701-30020-05i200402-200706
MARK5,REFER REPAIR MANUAL
sub11701-30020
main11701-30020-06i200402-200706
MARK6,REFER REPAIR MANUAL
sub11701-30020
main11701-30030-02i200706-201710
MARK2,REFER REPAIR MANUAL
main11701-30030-03i200706-201710
MARK3,REFER REPAIR MANUAL
main11701-30030-04i200706-201710
MARK4,REFER REPAIR MANUAL
main11701-30030-05i200706-201710
MARK5,REFER REPAIR MANUAL
main11701-30030-06i200706-201710
MARK6,REFER REPAIR MANUAL
main11701-54061-01i200107-200108
MARK 1,REFER REPAIR MANUAL
sub11701-54080
main11701-54061-02i200107-200108
MARK 2,REFER REPAIR MANUAL
sub11701-54080
main11701-54061-03i200107-200108
MARK 3,REFER REPAIR MANUAL
sub11701-54080
main11701-54080-01i200108-200801
MARK 1,REFER REPAIR MANUAL
sub11701-54081
main11701-54080-02i200108-200801
MARK 2,REFER REPAIR MANUAL
sub11701-54081
main11701-54080-03i200108-200801
MARK 3,REFER REPAIR MANUAL
sub11701-54081
main11701-54081-01i200801-202111
MARK1,REFER REPAIR MANUAL
main11701-54081-02i200801-202111
MARK2,REFER REPAIR MANUAL
main11701-54081-03i200801-202111
MARK3,REFER REPAIR MANUAL
main11701-67021-02i200108-200402
MARK 2,REFER REPAIR MANUAL
sub11701-30020
main11701-67021-03i200108-200402
MARK 3,REFER REPAIR MANUAL
sub11701-30020
main11701-67021-04i200108-200402
MARK 4,REFER REPAIR MANUAL
sub11701-30020
main11701-67021-05i200108-200402
MARK 5,REFER REPAIR MANUAL
sub11701-30020
main11701-67021-06i200108-200402
MARK 6,REFER REPAIR MANUAL
sub11701-30020
13011RING SET, PISTON
main13011-30030i200108-200408
STD
sub13011-30031
main13011-30031i200408-200610
STD
main13011-30090i200609-200906
STD
sub13011-30150
main13011-30150i200906-201310
STD
main13011-30160i201109
STD
main13011-54130i200107-202111
STD
main13013-30030i200108-200408
O/S 0.50
sub13013-30031
main13013-30031i200408-200610
O/S 0.50
main13013-30090i200609-200905
O/S 0.50
sub13013-30150
main13013-30150i200906-201310
O/S 0.50
main13013-30160i201109
O/S 0.50
main13013-54130i200107-202111
O/S 0.50
main13014-30090i200609-200905
O/S 0.75
sub13014-30150
main13014-30150i200906-201310
O/S 0.75
main13014-30160i201109
O/S 0.75
main13015-30090i200609-200905
O/S 1.00
sub13015-30150
main13015-30150i200906-201310
O/S 1.00
main13015-30160i201109
O/S 1.00
13041BEARING, CONNECTING ROD
main13041-30020-02i200402-200706
MARK2,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-03i200402-200706
MARK3,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-04i200402-200706
MARK4,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-05i200402-200706
MARK5,REFER REPAIR MANUAL
sub13041-30020
main13041-30020-06i200402-200706
MARK6,REFER REPAIR MANUAL
sub13041-30020
main13041-30030-02i200706-201711
MARK2,REFER REPAIR MANUAL
main13041-30030-03i200706-201711
MARK3,REFER REPAIR MANUAL
main13041-30030-04i200706-201711
MARK4,REFER REPAIR MANUAL
main13041-30030-05i200706-201711
MARK5,REFER REPAIR MANUAL
main13041-30030-06i200706-201711
MARK6,REFER REPAIR MANUAL
main13041-54041-01i200107-200801
MARK 1,REFER REPAIR MANUAL
sub13041-54042
main13041-54041-02i200107-200801
MARK 2,REFER REPAIR MANUAL
sub13041-54042
main13041-54041-03i200107-200801
MARK 3,REFER REPAIR MANUAL
sub13041-54042
main13041-54042-01i200801-202111
MARK1,REFER REPAIR MANUAL
main13041-54042-02i200801-202111
MARK2,REFER REPAIR MANUAL
main13041-54042-03i200801-202111
MARK3,REFER REPAIR MANUAL
main13041-67031-02i200108-200402
MARK 2,REFER REPAIR MANUAL
sub13041-30020
main13041-67031-03i200108-200402
MARK 3,REFER REPAIR MANUAL
sub13041-30020
main13041-67031-04i200108-200402
MARK 4,REFER REPAIR MANUAL
sub13041-30020
main13041-67031-05i200108-200402
MARK 5,REFER REPAIR MANUAL
sub13041-30020
main13041-67031-06i200108-200402
MARK 6,REFER REPAIR MANUAL
sub13041-30020
13101PISTON SUB-ASSY, W/PIN
main13101-30030-01i200108-200408
STD,MARK 1,REFER REPAIR MANUAL
sub13101-30081
main13101-30030-02i200108-200408
STD,MARK 2,REFER REPAIR MANUAL
sub13101-30081
main13101-30030-03i200108-200408
STD,MARK 3,REFER REPAIR MANUAL
sub13101-30081
main13101-30031-01i200408-200610
STD,MARK1,REFER REPAIR MANUAL
sub13101-30081
main13101-30031-02i200408-200610
STD,MARK2,REFER REPAIR MANUAL
sub13101-30081
main13101-30031-03i200408-200610
STD,MARK3,REFER REPAIR MANUAL
sub13101-30081
main13101-30110-01i200609-201310
STD,MARK1,REFER REPAIR MANUAL
main13101-30110-02i200609-201310
STD,MARK2,REFER REPAIR MANUAL
main13101-30110-03i200609-201310
STD,MARK3,REFER REPAIR MANUAL
main13101-30130-01i200905-201109
STD,MARK1,REFER REPAIR MANUAL
main13101-30130-02i200905-201109
STD,MARK2,REFER REPAIR MANUAL
main13101-30130-03i200905-201109
STD,MARK3,REFER REPAIR MANUAL
main13101-30172-01i201109-201709
STD,MARK 1,REFER REPAIR MANUAL
main13101-30172-02i201109-201709
STD,MARK 2,REFER REPAIR MANUAL
main13101-30172-03i201109-201709
STD,MARK 3,REFER REPAIR MANUAL
main13101-54120-01i200107-202111
STD,MARK 1,REFER REPAIR MANUAL
main13101-54120-02i200107-202111
STD,MARK 2,REFER REPAIR MANUAL
main13101-54120-03i200107-202111
STD,MARK 3,REFER REPAIR MANUAL
main13103-30030i200108-200408
O/S 0.50
sub13103-30081
main13103-30031i200408-200610
O/S 0.50
sub13103-30081
main13103-30110i200609-201310
O/S 0.50
main13103-30130i200905-201109
O/S 0.50
main13103-30170i201109-201510
O/S 0.50
main13103-30172i201510
O/S 0.50
main13103-54120i200107-202111
O/S 0.50
main13104-30110i200609-201310
O/S 0.75
main13104-30130i200905-201109
O/S 0.75
main13104-30170i201109-201510
O/S 0.75
main13104-30172i201510
O/S 0.75
main13105-30110i200609-201310
O/S 1.00
main13105-30130i200905-201109
O/S 1.00
main13105-30170i201109-201510
O/S 1.00
main13105-30172i201510
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-37014i200108
main90521-31001i200107-202111
13201ROD SUB-ASSY, CONNECTING
main13201-30020i200609-200908
sub13201-30021
main13201-30021i200908-201908
sub13201-30051
main13201-30030i200108-200610
sub13201-30031
main13201-30051i201908
main13201-59106i200107-200801
sub13201-59216
main13201-59216i200801-202111
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73115i200107-202111
main90999-73143i200609-200908
sub90999-73156
main90999-73145i200108-200610
sub90999-73157
main90999-73156i200908
13202BEARING SET, CONNECTING ROD
main13204-30020i200402-200705
U/S 0.25
main13204-30030i200706-201711
U/S 0.25
main13204-54041i200107-200801
U/S 0.25
sub13204-54042
main13204-54042i200801-202111
U/S 0.25
main13204-67031i200108-200402
U/S 0.25
sub13204-30020
main13205-30020i200402-200705
U/S 0.50
main13205-30030i200706-201711
U/S 0.50
main13205-54041i200107-200801
U/S 0.50
sub13205-54042
main13205-54042i200801-202111
U/S 0.50
main13205-67031i200108-200402
U/S 0.50
sub13205-30020
13265BOLT, CONNECTING ROD
main13265-54021i200107-202111
main13265-67021i200108
13405FLYWHEEL SUB-ASSY
main13405-05070i200204-202111
(L)
main13405-30020i200108-200610
main13405-30030i200108-200809
sub13405-30031
main13405-30031i200809-201310
main13405-54080i200107-202111
(J)
main13405-67060i200905
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i200107-202111
L=23,OD=8
main90250-10192i200108
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
main90105-12109i200107-202111
main90105-13010i200108
13411CRANKSHAFT
main13401-30010i200609-201908
main13401-30020i200108-200610
sub13401-30060
main13401-30050i201908
main13401-54061i200107-200209
sub13401-54100
main13401-54100i200209-202111
13453GEAR, FLYWHEEL RING
main13453-05010i200301-202111
(L)
main13453-54010i200301-202111
(J)
main13453-54010i200107-200301
main13453-67030i200108
13471PULLEY, CRANKSHAFT
main13408-30010i200108-200901
sub13408-30011
main13408-30011i200901-201310
main13408-30021i201109
main13408-54090i200107-202111
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i200108
main95161-30622i200107-202111
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-18003i200108
main90901-19028i200107-202111
13508FPIN, STRAIGHT(FOR IDLE GEAR)
main90250-05027i200108-200610
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-30020i200709
main13521-67020i200108-200709
13525GEAR, IDLE, NO.1
main13508-30010i200108-200405
sub13508-30011
main13508-30011i200405-200610
main13508-67011i200609
13538GEAR, IDLE SUB, NO.2
main13538-67900i200108
13538AWASHER, WAVE
main90206-69001i200108-200610
13538CRING, SHAFT SNAP
main90520-58002i200108-200610
13572PLATE, IDLE GEAR THRUST
main13572-67041i200108
13578SPRING, IDLE GEAR
main13578-67010i200108-200610
13581SHAFT, IDLE GEAR, NO.1
main13581-67041i200108
13613EGEAR, INJECTION
main13603-30020i200108
13613FBEARING, RADIAL BALL
main90363-67001i200108
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-30010i200108-201310
main19315-30020i201109
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9151160632
main91511-60632
