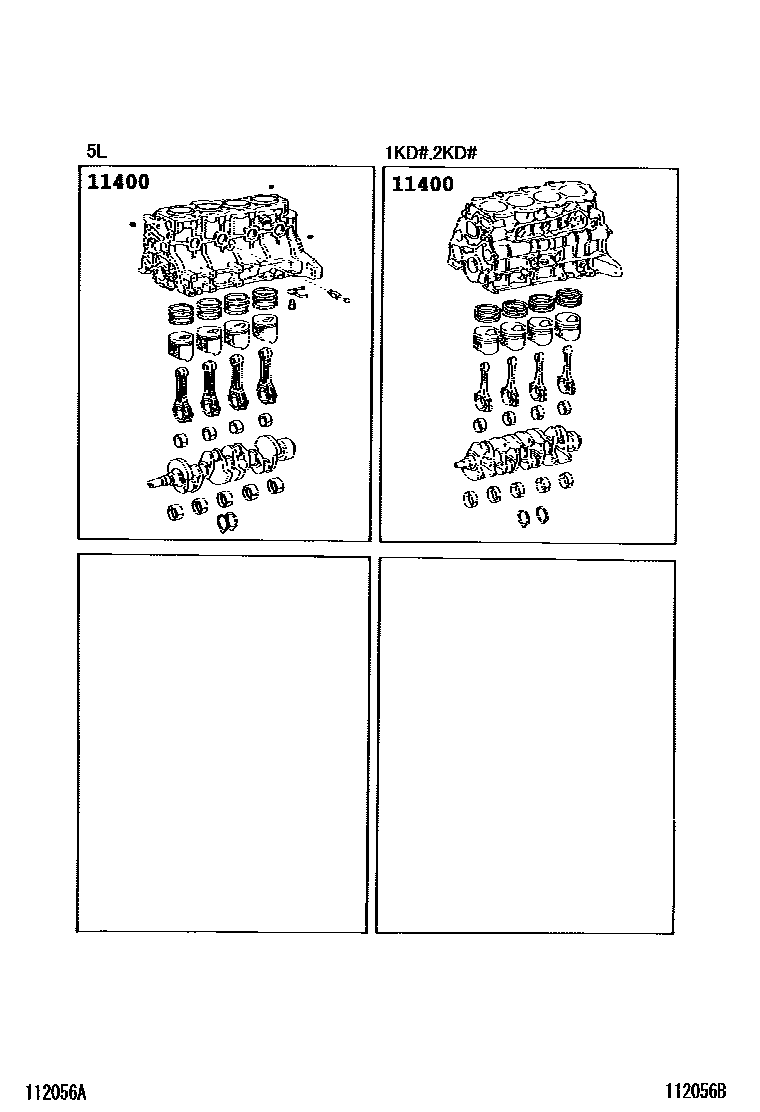

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-30040i2KDFTV..KDY220,230,250,260200108-200610

main11400-30280i1KDFTV..KDY221,231,251,261..EUR200609-201310

sub11400-30480

sub11400-30490

main11400-30330i1KDFTV..KDY221,231,251,261..EUR200905-201109

sub11400-30500

sub11400-30510

main11400-30370i1KDFTV..KDY221,231,251,261..EUR201109-201411

sub11400-30440

sub11400-30520

main11400-30400i1KDFTV..KDY221,231,251,261201411-201711

sub11400-30440

sub11400-30520

main11400-30440i1KDFTV..KDY221,231201711-202107

main11400-54160i5L..LY22#,23#200107-202111

1 parts on this diagram · 1 diagram in section
