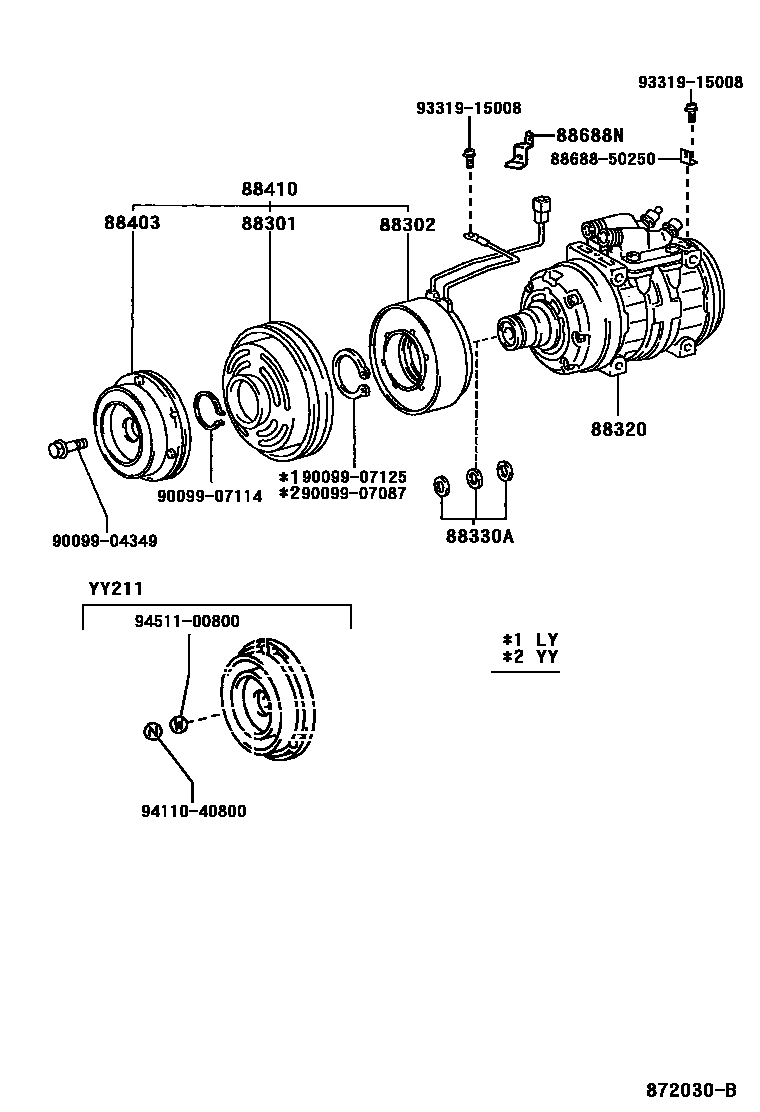

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22240iYY211..RHD..ST199505-199508

W(HEATER & AIR CONDITIONER)

main88412-22240iYY211199508

main88412-30430iLY211..ARL,GEN199505

sub88412-2A060

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22280iLY211..ARL,GEN199505

main88411-22300iYY211..T2,TW2;YY211..LHD..15T199505-199508

W(HEATER & AIR CONDITIONER)

main88411-22300iYY211199508

88320COMPRESSOR ASSY, COOLER

main88320-26470iYY211199508

sub88320-27H91

main88320-26470iYY211..T2,TW2;YY211..LHD..15T199505-199508

W(FR HEATER & *AIC)

sub88320-27H91

main88320-26480iLY211..ARL,GEN199505

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iYY211199505

main88335-14020iLY211..ARL,GEN199505

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iYY211..T2,TW2;YY211..LHD..15T199505-199508

W(HEATER & AIR CONDITIONER)

main88403-12030iYY211199508

main88403-30290iLY211..ARL,GEN199505

88410CLUTCH ASSY, MAGNET

main88410-22470iYY211..T2,TW2;YY211..LHD..15T199505-199508

W(FR HEATER & *AIC)

main88410-22470iYY211199508

main88410-25090iLY211..ARL,GEN199505

88688NBRACKET, COOLER

main88569-60070iLY211..ARL,GEN199612

8868850250BRACKET, COOLER DIAPHRAGM

main88688-50250

9009904349

main90099-04349

9009907087

main90099-07087

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

15 parts on this diagram · 3 diagrams in section
