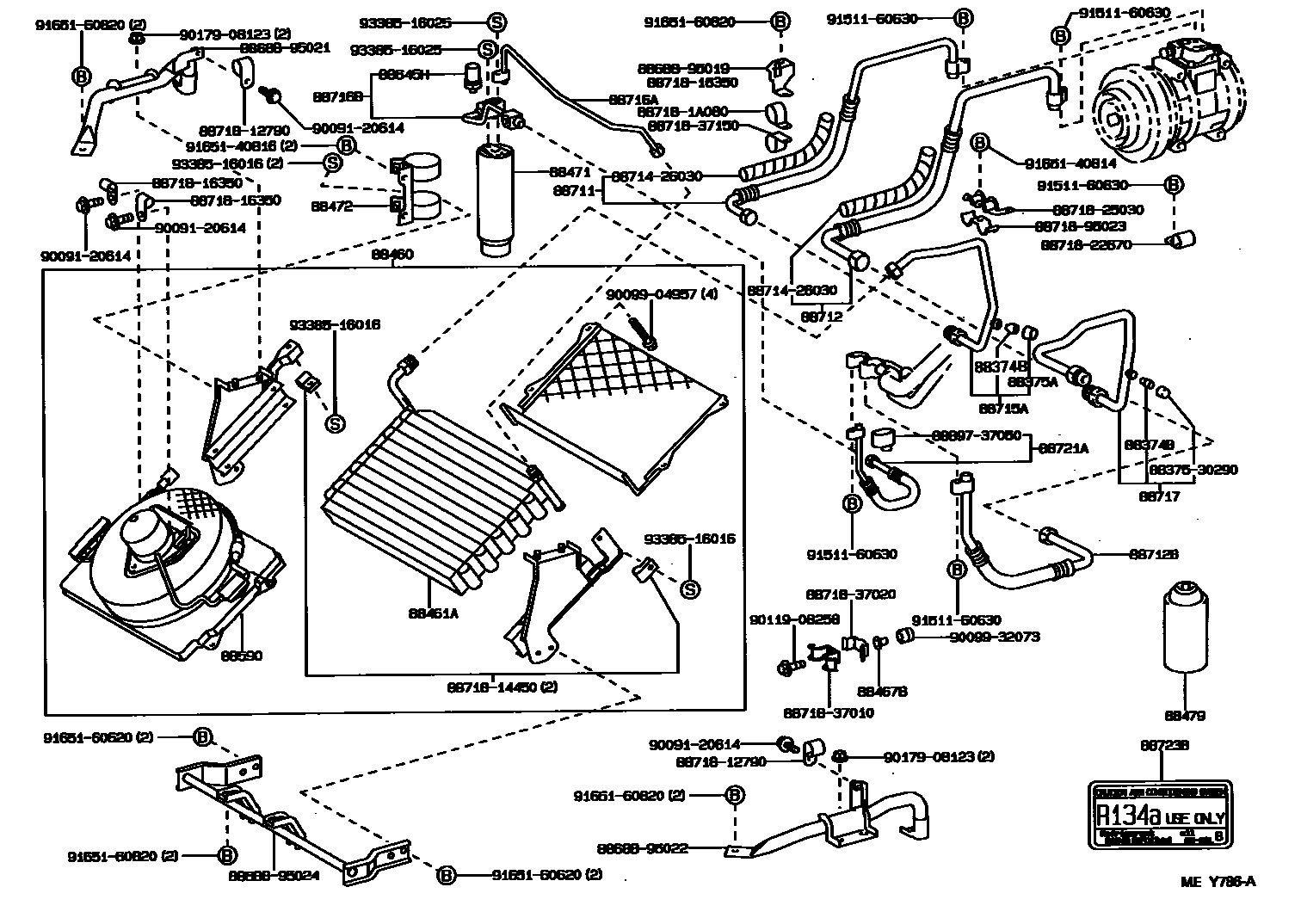

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1DEALER OPTION(PRELIMINARY) 0002 1DEALER OPTION 0003 1MAKER OPTION 0004 1MAKER OPTION 0005 1

88374BVALVE, SERVICE, NO.1

main88374-30010iLY211,YY211..ARL,GEN199505

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iLY211,YY211..ARL,GEN199505

88460CONDENSER ASSY, COOLER

main88460-25070iYY211..RHD..ST199505-199508

W(FR HEATER & *AIC)

main88460-25070iLY211,YY211..RHD199508

main88460-25080iLY211,YY211..LHD..GEN199505

88461ACORE, COOLER CONDENSER

main88461-25020iLY211,YY211..ARL,GEN199505

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-22010iLY211,YY211..ARL,GEN199505-199905

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iLY211,YY211..ARL,GEN199505

sub88471-34010

88472BRACKET, RECEIVER TANK, NO.1

main88472-25040iLY211,YY211..RHD..GEN199505

main88472-25050iLY211,YY211..LHD..GEN199505

main88472-95011iLY211,YY211..RHD199505-199905

DEALER OPTION

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02007iLY211,YY211..ARL,GEN199505

250G

main90986-02008iLY211,YY211..ARL,GEN199505

200G

88590BLOWER ASSY, W/SHROUD

main88590-25010iLY211,YY211..ARL,GEN199505

88645HSWITCH, PRESSURE NO.1

main88645-20050iLY211,YY211..RHD..GEN199505

main88645-60030iLY211..RHD199905

DEALER OPTION

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-25130iYY211199508

main88711-25130iYY211..T2,TW2;YY211..LHD..15T199505-199508

W(FR HEATER & *AIC)

main88711-25140iLY211..ARL,GEN199505

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-25170iYY211..RHD..ST199505-199508

W(FR HEATER & *AIC)

main88712-25170iYY211199508

main88712-25180iLY211..ARL,GEN199505

88712BHOSE, COOLER REFRIGERANT SUCTION

main88712-25150iYY211..RHD..ST199505-199508

W(FR HEATER & *AIC)

main88712-25150iLY211,YY211..RHD199508

main88712-25160iLY211,YY211..LHD..GEN199505

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-25120iLY211,YY211..ARL,GEN199505

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-25120iYY211..WT;LY211..RHD199505-199508

W(FR HEATER & *AIC)

main88716-25120iLY211,YY211..RHD199508

main88716-25140iLY211,YY211..LHD..GEN199505

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-25110iYY211..WT;LY211..RHD199505-199508

W(FR HEATER & *AIC)

main88716-25110iLY211,YY211..RHD199508

main88716-25130iLY211,YY211..LHD..GEN199505

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-25150iYY211..WT;LY211..RHD199505-199508

W(FR HEATER & *AIC)

main88717-25150iLY211,YY211..RHD199508

main88717-25160iLY211,YY211..LHD..GEN199505

88721AHOSE, LIQUID, A

main88721-25050iYY211..WT;LY211..RHD199505-199508

W(FR HEATER & *AIC)

main88721-25050iLY211,YY211..RHD199508

main88721-25060iLY211,YY211..LHD..GEN199505

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iLY211,YY211..ARL,GEN199505

8837530290CAP, COOLER COMPRESSOR SERVICE VALVE

main88375-30290

8868895019BRACKET, COOLER DIAPHRAGM

main88688-95019

8868895021BRACKET, COOLER DIAPHRAGM

main88688-95021

8868895022BRACKET, COOLER DIAPHRAGM

main88688-95022

8868895024BRACKET, COOLER DIAPHRAGM

main88688-95024

8871426030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-26030

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8871816350PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16350

887181A080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A080

8871822670PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22670

8871825030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25030

8871837010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37010

8871837020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37020

8871837150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-37150

8871895023PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95023

8889737050VALVE, COOLER MAGNET

main88897-37050

9009120614

main90091-20614

9009904957

main90099-04957

9009932073

main90099-32073

9011908258

main90119-08258

9017908123

main90179-08123

9151160630

main91511-60630

9165140814

main91651-40814

9165140816

main91651-40816

9165160620

main91651-60620

9165160820

main91651-60820

9338516016

main93385-16016

9338516025

main93385-16025

48 parts on this diagram · 5 diagrams in section
