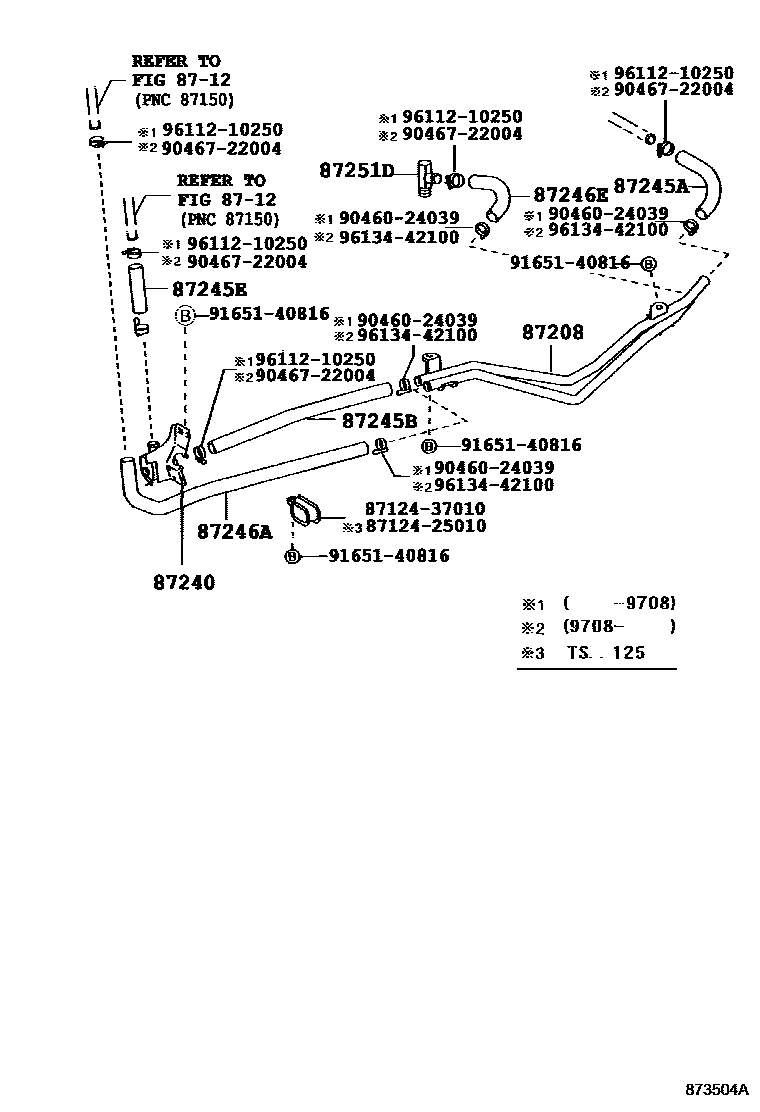

HEATING & AIR CONDITIONING - WATER PIPING
8712
87208PIPE SUB-ASSY, HEATER WATER
W(FR HEAER)
W(FR HEAER & RR HEATER)
W(RR HEATER)
W(FR HEAER)
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
W(FR HEAER & RR HEATER)
W(RR HEATER)
*H,L=280
*H,L=250
*H,L=250,W(FR HEAER)
87245BHOSE, HEATER WATER, INLET B
*H,L=390
*H,L=390,W(FR HEAER)
*H,L=380
87245EHOSE, HEATER WATER, INLET E
*H,L=90
87246AHOSE, HEATER WATER, OUTLET A
*H,L=480,W(FR HEAER)
*H,L=480
*H,L=740
*H,L=740,W(RR HEATER)
*H,L=740,W(FR HEAER & RR HEATER)
87246EHOSE, HEATER WATER, OUTLET E
W(RR HEATER)
W(FR HEAER & RR HEATER)
sub87245-25230
*H,L=250,W(FR HEAER)
*H,L=250
87251DJOINT, WATER, NO.1
8712425010CLAMP, HEATER
main87124-25010
8712437010CLAMP, HEATER
main87124-37010
9046024039
main90460-24039
9046722004
main90467-22004
9165140816
main91651-40816
9611210250
main96112-10250
9613442100
main96134-42100
16 parts on this diagram · 3 diagrams in section
