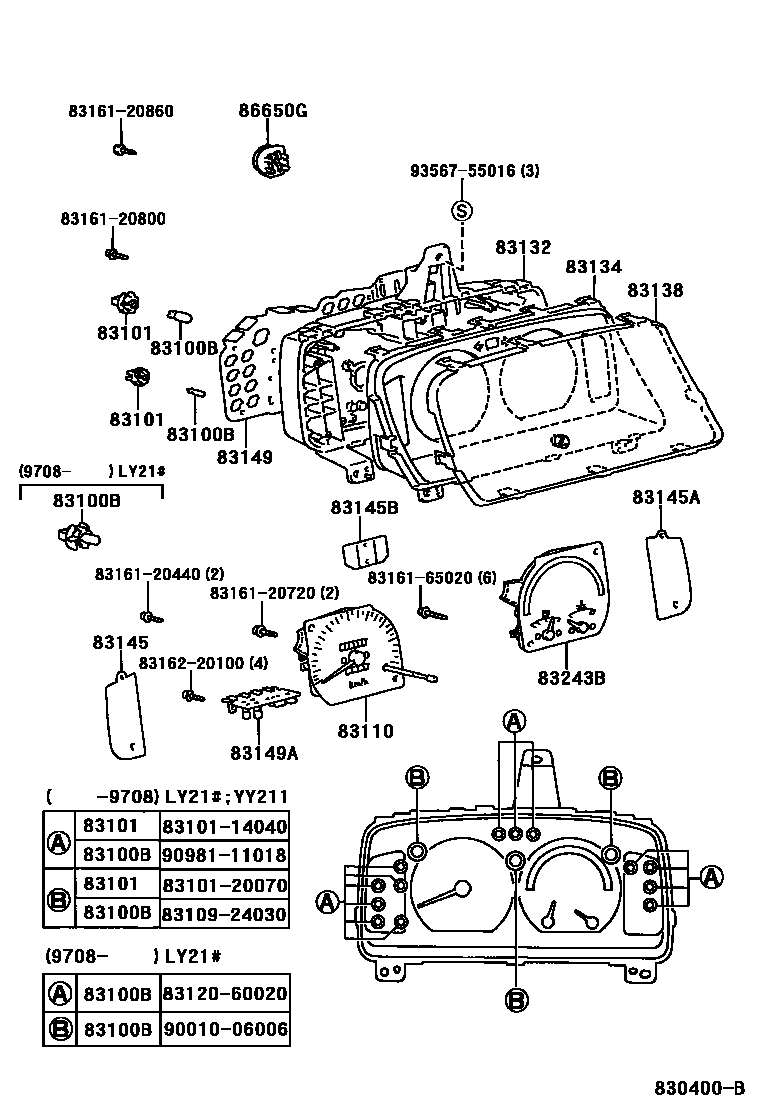

METER

0001 1 0002 1W(TACHOMETER) 0003 1 0004 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030iLY211,YY211199505-199912

12V3.4W W(GREEN CAP)

main83120-60020iLY21#199708

12V 1.4W,W(SOCKET)

main90010-06006iLY212;LY211..ST199708-199912

12V3.4W,W(GREEN CAP)

main90981-11018iLY211,YY211199505-199708

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iLY211,YY211199505

TYPE A:REFER TO ILLUSTRATION

main83101-20070iYY211199505-199912

TYPE B:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83110-25150iLY211..ST..15T..CBU199505-199708

SINGAPORE SPEC & W(TACHOMETER)

main83110-25151iLY211..ST199708-199810

main83110-25160iLY211..ST..GEN199505-199708

MILE/KM SPEEDOMETER

main83110-25161iLY211..ST..GEN199708

MILE/KM SPEEDOMETER

main83110-25170iLY211..EUR199505-199708

main83110-25171iLY21#..EUR,SA199708

main83110-37070iYY211..T2,TW2;YY211..LHD..15T199505-199810

main83110-37070iYY211..RHD..ST199505-199905

SINGAPORE SPEC & W(TACHOMETER)

main83110-37080iYY211..WT199810-199912

main83110-37090iYY211..ST199505

MILE/KM SPEEDOMETER

main83220-25010iLY211..WT199810-199912

83132CASE, COMBINATION METER

main83132-37020iLY21#,YY211199505-199912

83134COVER, COMBINATION METER, NO.1

main83134-37020iLY21#,YY211199505-199912

83138GLASS, SPEEDOMETER

main83137-37020iLY21#,YY211199505-199912

83145LENS, METER, NO.1

main83146-37120iYY211..ST199505

main83146-37180iLY211..ST..(ARL,GEN)199505

main83146-37360iYY211..WT199505-199912

main83146-37360iYY211..RHD..ST199505-199905

SINGAPORE SPEC & W(*TAC) OR W(MILE/ SPEEDOMETER)

main83146-37360iYY211..LHD199505

W(MILE/KM SPEEDOMETER)

main83146-37380iLY211..GEN..IV;LY211..ST..125..CBU199505

W(MILE/KM SPEEDOMETER)

main83146-37380iLY212;LY211..WT;LY211..ST..EUR199505-199912

main83146-37380iLY211..ST..15T..CBU199505

SINGAPORE SPEC & W(*TAC) OR W(MILE/ SPEEDOMETER)

83145ALENS, METER, NO.2

main83146-37160iYY211..WT199505-199912

main83146-37160iYY211..RHD..ST199505-199508

SINGAPORE SPEC & W(*TAC)

main83146-37200iLY21#;YY211..ST199505-199912

83145BLENS, METER, NO.3

main83146-37140iLY21#,YY211199505-199912

83149PLATE, METER CIRCUIT

main83149-37260iYY211..ST199505

main83149-37280iYY211..ST199505

W(MILE/KM SPEEDOMETER)

main83149-37300iLY21#..EUR199505

main83149-37560iYY211..WT199505-199712

main83149-37560iYY211..RHD..ST199505-199508

SINGAPORE SPEC & W(TACHOMETER)

main83149-37580iLY211..ST..(ARL,GEN)199505

main83149-37600iLY212..SA199909

main83149-37600iLY211..ST..GEN199505

W(MILE/KM SPEEDOMETER)

main83149-37620iLY211..EUR199505-199610

W(TACHOMETER)

main83861-25010iLY211..ST..15T..CBU199505-199508

SINGAPORE SPEC & W(TACHOMETER)

main83861-25010iLY212..CBU199505-199912

main83861-37171iYY211..WT199712-199912

83149APLATE, METER CIRCUIT, NO.2

main83149-26860iLY21#,YY211199505-199810

main83149-2F070iLY212..T2199810-199912

83243BGAUGE ASSY, COMBINATION

main83243-37080iLY212..IV;LY211,YY211..(T3,TW1,TW2)..TS199505

86650GBUZZER ASSY

main83248-20010iLY21#..ARL,GEN,SA199505-199912

8316120440CASE, COMBINATION METER MIRROR, NO.1

main83161-20440

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

8316120800CASE, COMBINATION METER MIRROR, NO.1

main83161-20800

8316120860CASE, COMBINATION METER MIRROR, NO.1

main83161-20860

8316165020CASE, COMBINATION METER MIRROR, NO.1

main83161-65020

8316220100CASE, COMBINATION METER MIRROR, NO.2

main83162-20100

9356755016

main93567-55016

20 parts on this diagram · 4 diagrams in section
