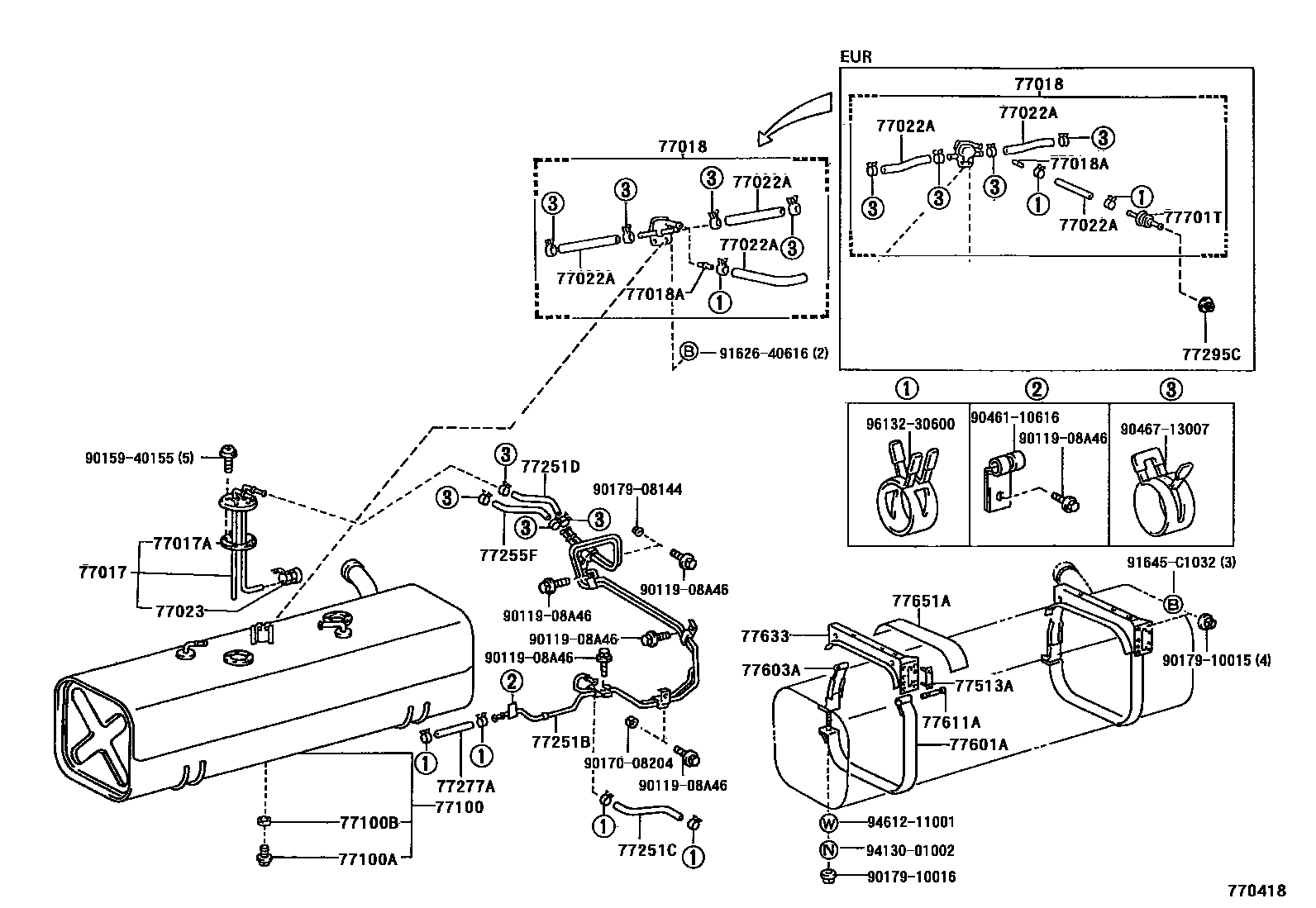

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-25050iLY21#..125¥5,100199505

main77017-25060iYY211..125¥4,370199505

main77017-25090iLY21#..15T¥4,910199505

main77017-25110iYY211..15T¥4,370199505-200002

77017AGASKET, FUEL TANK VENT

main77169-14020iLY21#,YY211¥330199505

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25100iYY211..LHD¥3,150199708

CHINA SPEC

sub77018-26130¥3,710

main77018-25100iYY211..RHD..ST¥3,150199505-199508

SINGAPORE SPEC

sub77018-26130¥3,710

main77018-25100iYY211..WT¥3,150199505-200002

sub77018-26130¥3,710

main77018-25130iYY211..ST;LY21#..ARL,GEN,SA¥3,400199505

sub77018-37130¥2,830

main77018-25140iLY21#..125..IV¥4,350199605

main77018-26140iLY21#..15T..EUR¥3,710199505

sub77018-37140¥2,830

77018AORIFICE, FUEL VAPOUR

main90977-02001iYY211..ST;LY21#..T2,T3,TW2¥300199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06010iLY21#..125..IV¥300199605

*H,L=70

main95333-06030iYY211..WT¥580199505-200002

*H,L=260

sub95338-06030¥580

main95333-06030iLY21#..15T..EUR¥580199505

*H,L=300

sub95338-06030¥580

main95333-06030iYY211..RHD..ST¥580199505-199508

*H,L=260,SINGAPORE SPEC

sub95338-06030¥580

main95333-06030iLY21#..125..IV¥580199605

*H,L=220

sub95338-06030¥580

main95333-06030iYY211..LHD¥580199708

*H,L=260,CHINA SPEC

sub95338-06030¥580

main95333-06040iYY211..ST;LY21#..ARL,GEN,SA¥730199505

*H,L=320

main95333-08020iLY21#,YY211¥320199505

L=200(*H,L=160)

sub95337-08020¥310

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYY211¥1,020199505

main77023-32010iLY21#¥900199505

77100TANK ASSY, FUEL

main77001-25251iLY21#..125;YY211..ST..125¥37,900199505

main77001-25300iYY211..WT..125¥44,300199505-199905

main77001-26410iYY211..ST..15T;LY21#..15T..(ARL,GEN,SA)¥37,900199505

sub77001-26420¥37,900

main77001-26420iLY21#..15T..EUR¥37,900199505

main77001-26430iYY211..WT..15T¥37,900199505-200002

sub77001-26540¥42,100

main77001-26430iYY211..RHD..ST¥37,900199505-199508

SINGAPORE SPEC

sub77001-26540¥42,100

77100APLUG(FOR FUEL TANK)

main90105-12116iLY21#,YY211..15T¥110199505

main90341-20004iLY21#,YY211..125¥360199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iLY21#,YY211..15T¥160199505

main90430-20007iLY21#,YY211..125¥220199505

77251BTUBE, FUEL MAIN

main77205-25040iYY211..RHD..ST¥10,200199505-199508

SINGAPORE SPEC

main77205-25040iYY211..WT¥10,200199505-200002

main77205-25040iYY211..LHD¥10,200199708

CHINA SPEC

main77205-25050iYY211..ST¥7,900199505

main77205-25100iLY21#¥6,400199505

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-25040iYY211¥1,120199505

main77259-25050iLY21#..15T¥940199505

main95333-08020iLY21#..125¥320199505

L=200(*H,L=150)

sub95337-08020¥310

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-06020iYY211¥480199505

L=200

sub95337-06020¥570

main95333-08020iLY21#¥320199505

L=200

sub95337-08020¥310

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-04020iYY211¥510199505

L=200

main95333-06020iLY21#¥480199505

L=200

sub95337-06020¥570

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23273-73080iYY211¥1,210199505

main90447-12108iLY21#¥920199505

L=220

77295CGROMMET, FUEL TUBE

main77295-27010iLY21#..15T..EUR¥160199505

77513ARETAINER, TANK BRACKET

main77503-25010iLY21#,YY211¥1,740199505

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26060iLY21#,YY211..15T¥1,290199505

main77601-27011iLY21#,YY211..125¥2,210199505

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-26030iLY21#,YY211..15T¥1,150199505

77611APIN (FOR FUEL TANK BAND)

main77653-25010iLY21#,YY211..125¥250199505

77633STAY, FUEL TANK

main77501-25062iLY21#,YY211..125¥6,000199505

main77501-25091iLY21#,YY211..15T¥3,490199505-200002

main77501-25150iLY212..SA¥5,200200002

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iLY21#,YY211..15T¥480199505

main77651-27111iLY21#,YY211..125¥2,020199505

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10067iLY21#..EUR¥900199505

9011908A46

main90119-08A46¥80

9015940155

main90159-40155¥120

9017008204

main90170-08204¥170

9017908144

main90179-08144¥140

9017910015

main90179-10015¥100

9017910016

main90179-10016¥130

9046110616

main90461-10616¥180

9046713007

main90467-13007¥180

9162640616

main91626-40616¥110

91645C1032

main91645-C1032¥200

9413001002

main94130-01002¥90

9461211001

main94612-11001¥60

9613230600

main96132-30600¥200
