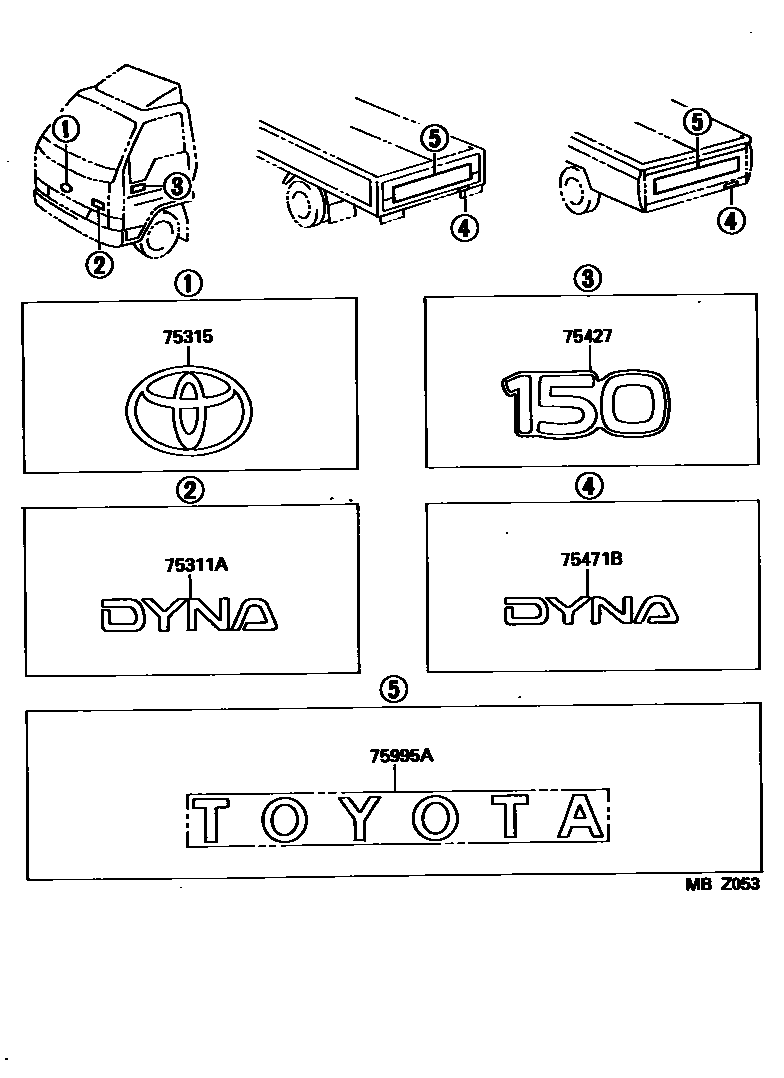

EMBLEM & NAME PLATE

75311APLATE, FRONT NAME, NO.1

main75311-37010iLY21#,YY211199505

DYNA

75315ORNAMENT, RADIATOR GRILLE

main75315-37010iLY21#,YY211199505

sub75315-37011

75427PLATE, FRONT DOOR NAME

main75427-25030iLY21#,YY211199505-200002

75471BPLATE, REAR BODY NAME, NO.1

main75471-37010iLY21#,YY211199505

75995ASTRIPE, REAR BODY, CENTER

main75459-37010-A1iLY211,YY211..WT..125199505-199905

WHITE,048 ,8E5

sub75459-37010

main75459-37010-C0iLY211,YY211..WT..125199505-199905

BLACK,048 ,8E5

sub75459-37010

main75995-37020-A0iLY211,YY211..TS..CBU199505-199905

WHITE,8E5

sub75995-37020

main75995-37020-A0iLY211,YY211..CBU199905-200002

WHITE,8P0

sub75995-37020

main75995-37020-A3iLY21#,YY211..CBU200002

WHITE,8P0

sub75995-37020

main75995-37020-A4iLY21#,YY211..CBU200002

BLACK,058

sub75995-37020

main75995-37020-C0iLY211,YY211..TS..CBU199505-199905

BLACK,048

sub75995-37020

main75995-37020-C0iLY211,YY211..CBU199905-200002

BLACK,058

sub75995-37020

5 parts on this diagram · 1 diagram in section
