BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-25021iLY21#..125199505

main74042-25030iLY21#..T3199505

main74042-25041iLY212..WT..EUR199505-199905

W(80D26R BATTERY X 2)

main74042-36020iLY21#..T2199505

74411BBRACKET, BATTERY, FRONT

main74411-25011iYY211199505

74412BRACKET, BATTERY, REAR

main74412-25011iYY211199505

74413BOLT, BATTERY CLAMP

main74451-25020iYY211199505

main74451-36070iLY21#199505

74417BRACKET, BATTERY CARRIER

main74417-25020iYY211..15T199505-200002

main74417-25030iLY21#..15T199505

main74417-25051iLY211..WT..IV199505-199805

W(80D26R BATTERY X 2)

main74417-25051iLY212..WT..15T..EUR199805

W(85D26R BATTERY X 2)

74421HANGER, BATTERY

main74421-26010iYY211199505

main74421-26020iYY211199505

W(BATTERY=55D23R)

74453ABAR, BATTERY SET PLATE

main74453-25080iYY211199505

main74453-25090iYY211199505

W(55D23R BATTERY)

main74453-25100iLY21#..T2,TW1,TW2199505

main74453-36050iLY21#..T3199505-200004

sub74453-36060

main74453-36060iLY21#..T3200004

main74453-36070iLY211..WT..IV199505-199805

W(80D26R BATTERY X 2)

sub74453-37130

main74453-36070iLY212..WT..15T..EUR199805

W(85D26R BATTERY X 2)

sub74453-37130

74461COVER, BATTERY

main74461-36100iLY21#..WT..15T..EUR199505

74473SPACER, BATTERY

main74473-25010iLY21#..T3199505

main74473-36050iYY211199505

74474PAD, BATTERY

main74475-36040iLY21#199505

74481CLAMP, BATTERY HOLD DOWN

main74481-36030iLY21#..WT..15T..EUR199505

9011908676

main90119-08676

9011910531

main90119-10531

9011910571

main90119-10571

9017906158

main90179-06158

9017908141

main90179-08141

91645C1032

main91645-C1032

9413000802

main94130-00802

9413001002

main94130-01002

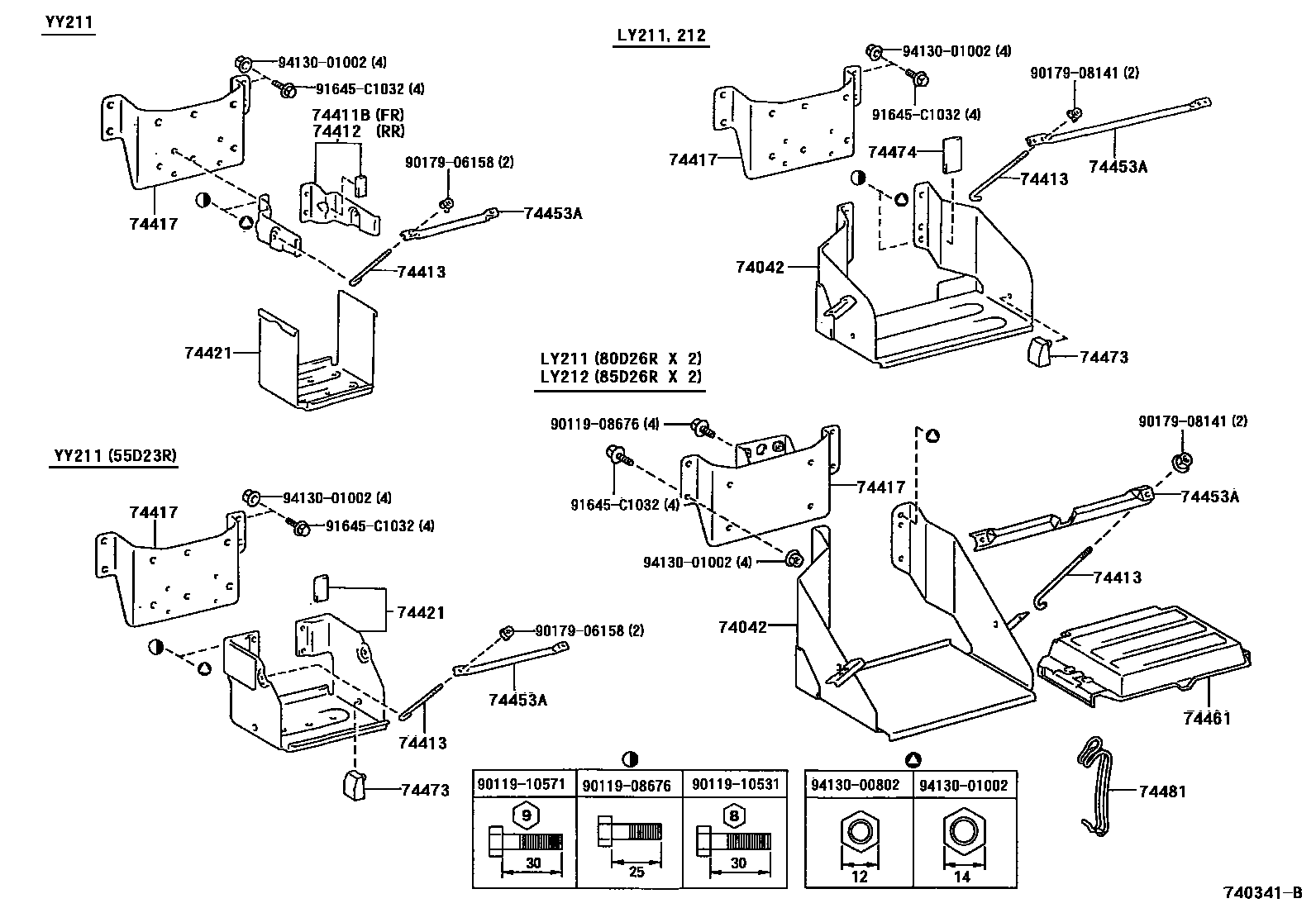

19 parts on this diagram · 1 diagram in section
