SEAT BELT

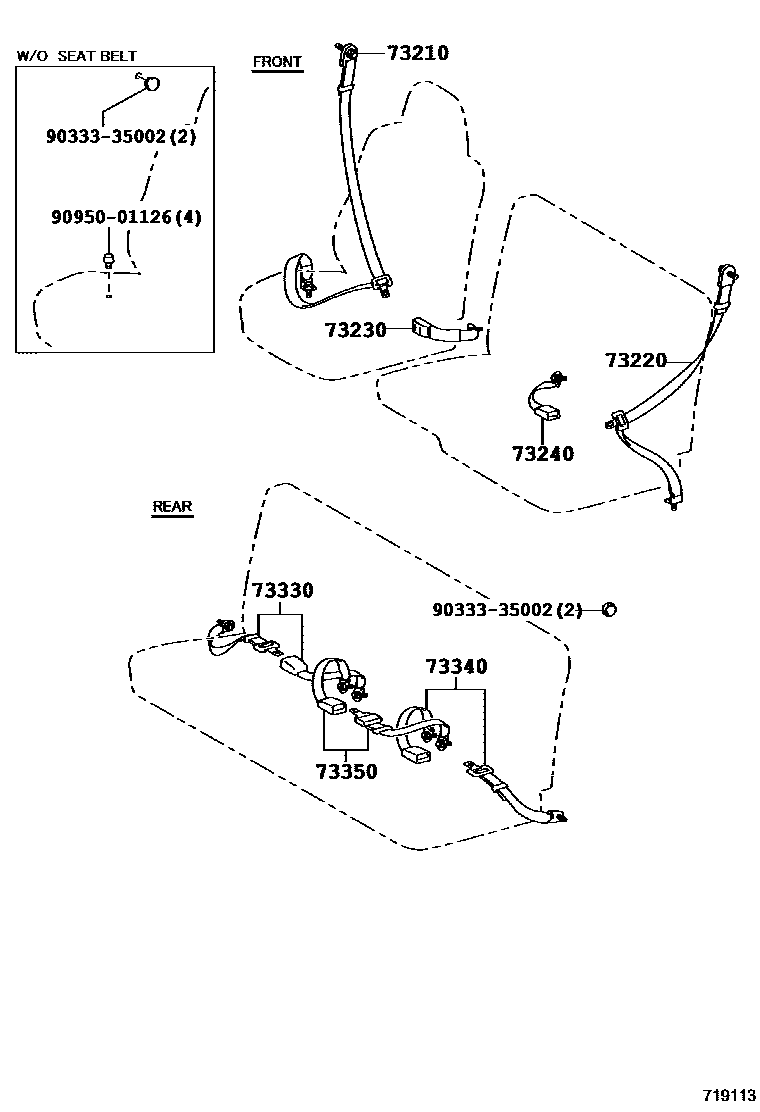

Parts diagram
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-37010-B1i199505-199604
HONG KONG SPEC,BLUISH GRAY,TRIM1#
sub73210-37010
sub73210-37011
main73210-37010-B1i199505-199604
BLUISH GRAY,TRIM1#
sub73210-37010
sub73210-37011
main73210-37011-B1i199605-199610
W(*ELR),BLUISH GRAY,TRIM1#
main73210-37011-B1i199605
BLUISH GRAY,TRIM1#
main73210-37060-B1i199505-199708
GRAY,TRIM1#
sub73210-37061
main73210-37061-B1i199708-200002
BLUISH GRAY,TRIM1#
main73210-37070-B0i199610
W(*ELR),BLUISH GRAY,TRIM1#
main73210-37090-B0i199610
W(*NLR),BLUISH GRAY,TRIM1#
main73210-37090-B0i199610
BLUISH GRAY,TRIM1#
main73210-95A00-B1i199505-199610
GRAY,TRIM1#
sub73210-95415
main73210-95A00-B1i199505-199610
W(*NLR),GRAY,TRIM1#
sub73210-95415
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-37010-B1i199505-199508
HONG KONG SPEC,BLUISH GRAY,TRIM1#
sub73210-37010
sub73210-37011
main73210-37010-B1i199505-199604
BLUISH GRAY,TRIM1#
sub73210-37010
sub73210-37011
main73210-37010-B1i199508-199604
W(*ELR),BLUISH GRAY,TRIM1#
sub73210-37010
sub73210-37011
main73210-37011-B1i199605-199610
W(*ELR),BLUISH GRAY,TRIM1#
main73210-37011-B1i199605
BLUISH GRAY,TRIM1#
main73210-37060-B1i199505-199708
GRAY,TRIM1#
sub73210-37061
main73210-37061-B1i199708-200002
BLUISH GRAY,TRIM1#
main73210-37070-B0i199610
W(*ELR),BLUISH GRAY,TRIM1#
main73210-37090-B0i199610
W(*NLR),BLUISH GRAY,TRIM1#
main73210-37090-B0i199610
BLUISH GRAY,TRIM1#
main73210-95A00-B1i199505-199610
GRAY,TRIM1#
sub73210-95415
main73210-95A00-B1i199505-199610
W(*NLR),GRAY,TRIM1#
sub73210-95415
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-95419-B1i199610
W(*ELR),GRAY,TRIM1#
sub73230-95419
main73230-95420-B1i199505
BLUISH GRAY,TRIM1#
sub73230-95420
main73230-95420-B1i199505-199610
HONG KONG SPEC,BLUISH GRAY,TRIM1#
sub73230-95420
main73230-95422-B1i199505
GRAY,TRIM1#
sub73230-95422
main73230-95422-B1i199505
W(*NLR),GRAY,TRIM1#
sub73230-95422
main73230-95A05-B1i199505
GRAY,TRIM1#
sub73230-95A05
main73230-95A06-B1i200002
GRAY,TRIM1#
sub73230-95A06
main73240-37120-B0i199610
BLUISH GRAY,TRIM1#
main73240-95425-B2i199505-199610
BLUISH GRAY,TRIM1#
sub73240-95425
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-95A00-B1i199505
GRAY,TRIM1#
sub73230-95A00
main73240-25020-B0i199505-199708
W(*ELR),BLUISH GRAY,TRIM1#
main73240-37031-B1i199505-199605
BLUISH GRAY,TRIM1#
sub73240-37032
main73240-37031-B1i199505-199605
HONG KONG SPEC,BLUISH GRAY,TRIM1#
sub73240-37032
main73240-37032-B1i199605
BLUISH GRAY,TRIM1#
main73240-37032-B1i199605-199610
W(*ELR),BLUISH GRAY,TRIM1#
main73240-37061-B0i199610
W(*ELR),BLUISH GRAY,TRIM1#
main73240-37090-B0i199505
GRAY,TRIM1#
main73240-37120-B0i199610
BLUISH GRAY,TRIM1#
main73240-37120-B0i199610
W(*NLR),BLUISH GRAY,TRIM1#
main73240-95425-B2i199505-199610
W(*NLR),BLUISH GRAY,TRIM1#
sub73240-95425
main73240-95425-B2i199505-199610
BLUISH GRAY,TRIM1#
sub73240-95425
main73240-95A08-B1i200002
GRAY,TRIM1#
sub73240-95A08
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-37050-B0i199505-199610
GRAY,TRIM1#
main73330-37051-B0i199610
BLUISH GRAY,TRIM1#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-37050-B0i199505-199610
GRAY,TRIM1#
main73330-37051-B0i199610
BLUISH GRAY,TRIM1#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-26110-B1i199605
GRAY,TRIM1#
main73350-37070-B0i199505-199610
GRAY,TRIM1#
main73350-37071-B0i199610
BLUISH GRAY,TRIM1#
9033335002
main90333-35002
9095001126
main90950-01126

9 parts on this diagram · 4 diagrams in section
