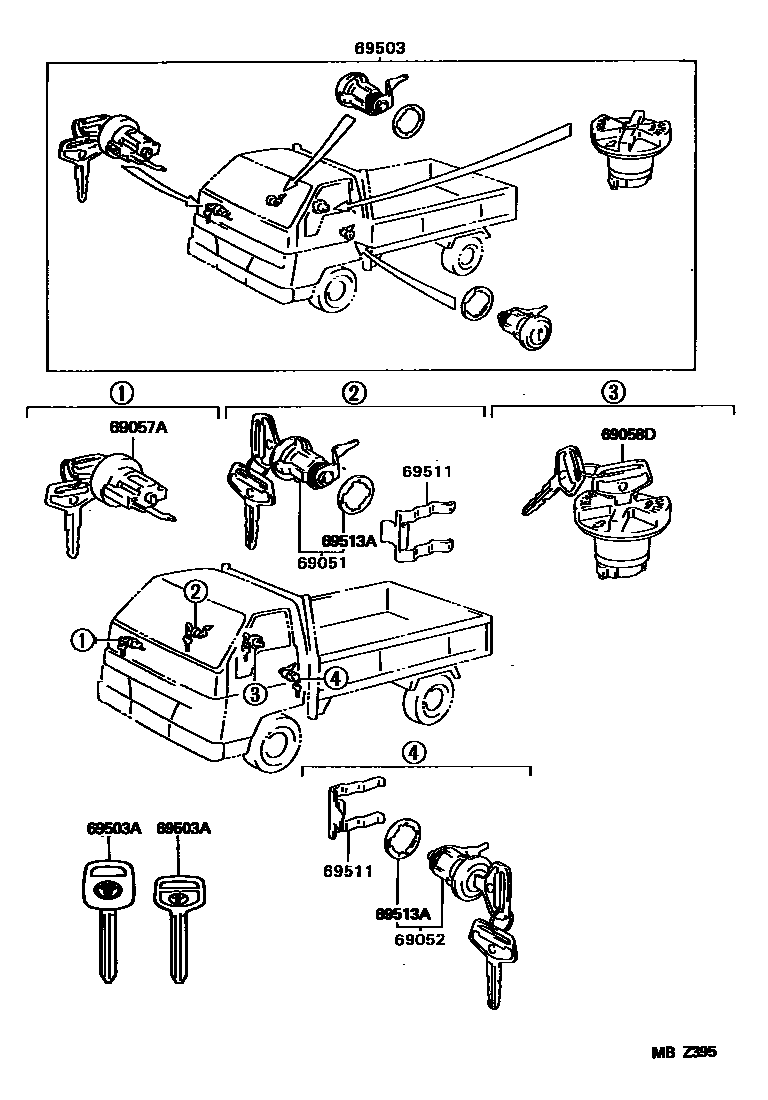

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37040iLY21#,YY211199505

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37070iLY21#,YY211199505

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-37040iLY211..ST..GEN199505

main69057-37050iLY211..WT;LY212,YY211;LY211..ST..(ARL,EUR)199505

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-37050iLY21#199505

main69058-37060iYY211199505

69503CYLINDER SET, LOCK

main69503-37100iLY211..ST..GEN199505

main69503-37130iLY212;LY211..WT;LY211..ST..(ARL,EUR)199505

main69503-37150iYY211199505

69503AKEY, BLANK

main90999-00185iLY21#,YY211199505

MASTER KEY,W(*68)

main90999-00186iLY21#,YY211199505

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iLY21#,YY211199505

69513APAD, DOOR CYLINDER

main69513-32010iLY21#,YY211199505

8 parts on this diagram · 1 diagram in section
