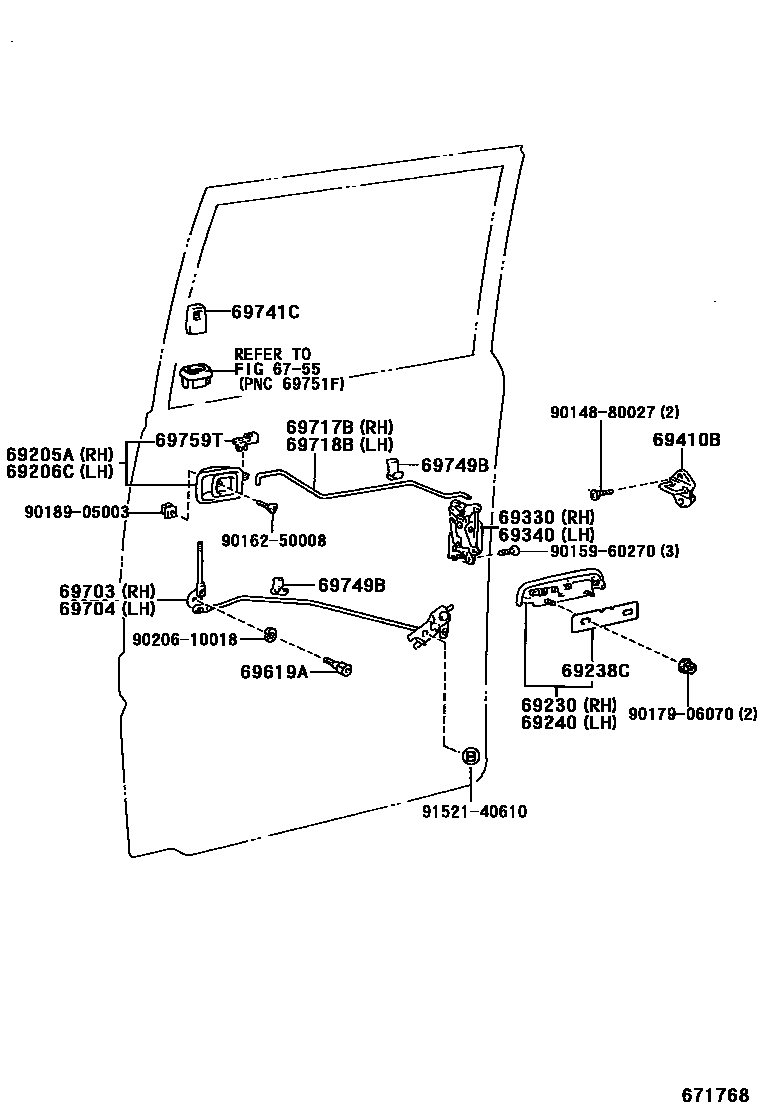

REAR DOOR LOCK & HANDLE

6755

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-95703-B0iLY21#,YY211..125199505

BLUISH GRAY,TRIM1#

sub69205-95703

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-95703-B0iLY21#,YY211..125199505

GRAY,TRIM1#

sub69206-95703

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-95400iLY21#,YY211..125199505

69238CPAD, DOOR OUTSIDE HANDLE

main69238-95J00iLY21#,YY211..125199505

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-95400iLY21#,YY211..125199505

69330LOCK ASSY, REAR DOOR, RH

main69330-95401iLY21#,YY211..125199505

69340LOCK ASSY, REAR DOOR, LH

main69340-95402iLY21#,YY211..125199505

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-37010iLY21#,YY211..125199505

69619ABOLT

main69619-95010iLY21#,YY211..125199505

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69701-95401iLY21#,YY211..125199505

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69702-95401iLY21#,YY211..125199505

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-95400iLY21#,YY211..125199505

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-95401iLY21#,YY211..125199505

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-32010-20iLY21#,YY211..125199505

BLACK,TRIM1#

sub69741-32010

sub69741-90K00

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iLY21#,YY211..125199505

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iLY21#,YY211..125199505

PINK

main69759-24070iLY21#,YY211..125199505

YELLOW

9014880027

main90148-80027

9015960270

main90159-60270

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9020610018

main90206-10018

9152140610

main91521-40610

24 parts on this diagram · 1 diagram in section
