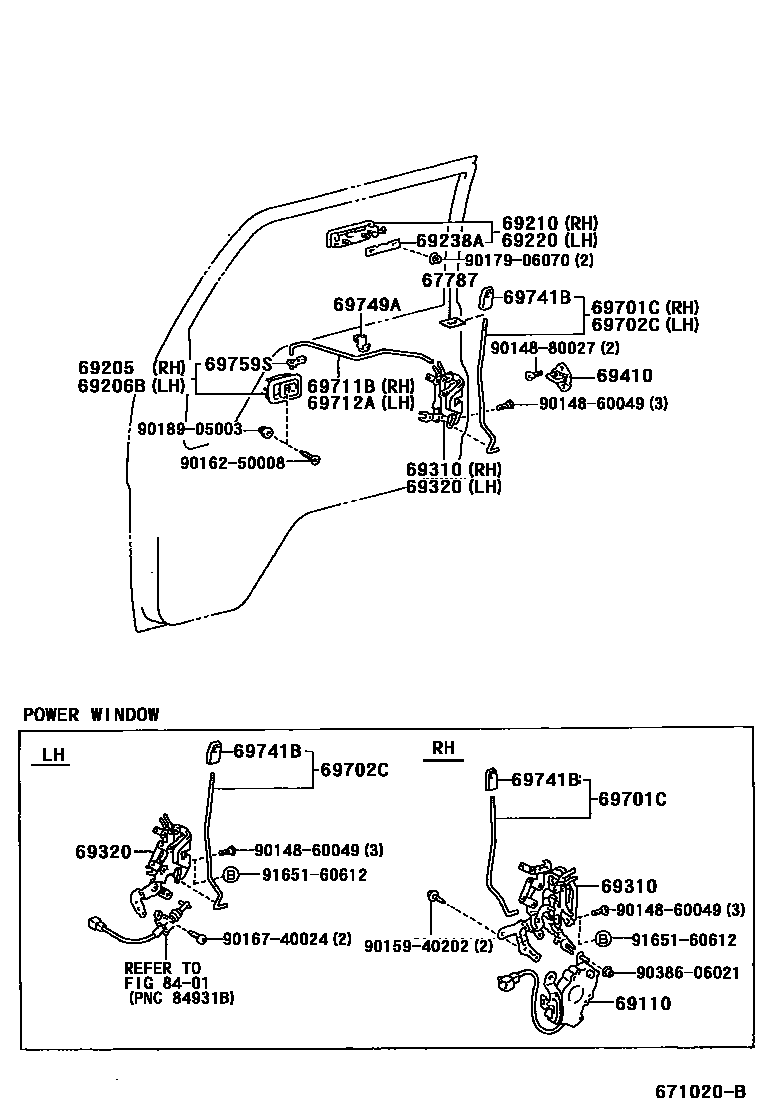

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

67787SILENCER, FRONT DOOR LOCKING BUTTON KNOB

main67787-37020iLY21#,YY211199505

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37020iLY212..EUR;YY211..ST..125199708

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-B1iLY21#,YY211199505

GRAY,TRIM1#

sub69205-10040

sub69205-10030

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-B1iLY21#,YY211199505-200110

GRAY,TRIM1#

sub69206-10040

sub69206-10030

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37010iLY21#,YY211199505

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37010iLY21#,YY211199505

69238APAD, DOOR OUTSIDE HANDLE

main69238-95J00iLY21#,YY211199505

69310LOCK ASSY, FRONT DOOR, RH

main69310-37030iLY21#,YY211..WT..CBU199905

main69310-37030iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK)

main69310-37050iLY212..IV;LY211,YY211..ST199505-199905

main69310-37060iLY212..EUR;YY211..ST..125199708

W(*EL = PASSENGER SIDE)

69320LOCK ASSY, FRONT DOOR, LH

main69320-37020iLY21#,YY211..WT..CBU199905

main69320-37020iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK)

main69320-37040iLY21#,YY211199505-199905

main69320-37050iLY212..EUR;YY211..ST..125199708

W(*EL = PASSENGER SIDE)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-89103iLY21#,YY211199505

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-37010-C0iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK),BLACK,TRIMI#

main69701-37010-C0iLY21#,YY211199505

BLACK,TRIM1#

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-37010-C0iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK),BLACK,TRIMI#

main69702-37010-C0iLY21#,YY211199505

BLACK,TRIM1#

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-95403iLY21#,YY211199505

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-95401iLY21#,YY211199505

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-32010-20iLY211,YY211..WT..15T199810-199903

SINGAPORE SPEC & W(POWER WINDOW & POWER DOOR LOCK),BLACK,TRIMI#

sub69741-32010

sub69741-90K00

main69741-32010-20iLY21#,YY211199505

BLACK,TRIM1#

sub69741-32010

sub69741-90K00

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20010iLY21#,YY211199505

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iLY21#,YY211199505

GRAY

main69759-20070iLY21#,YY211199505

GREEN

8401

9014860049

main90148-60049

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9016740024

main90167-40024

9017906070

main90179-06070

9018905003

main90189-05003

9038606021

main90386-06021

9165160612

main91651-60612

27 parts on this diagram · 2 diagrams in section
