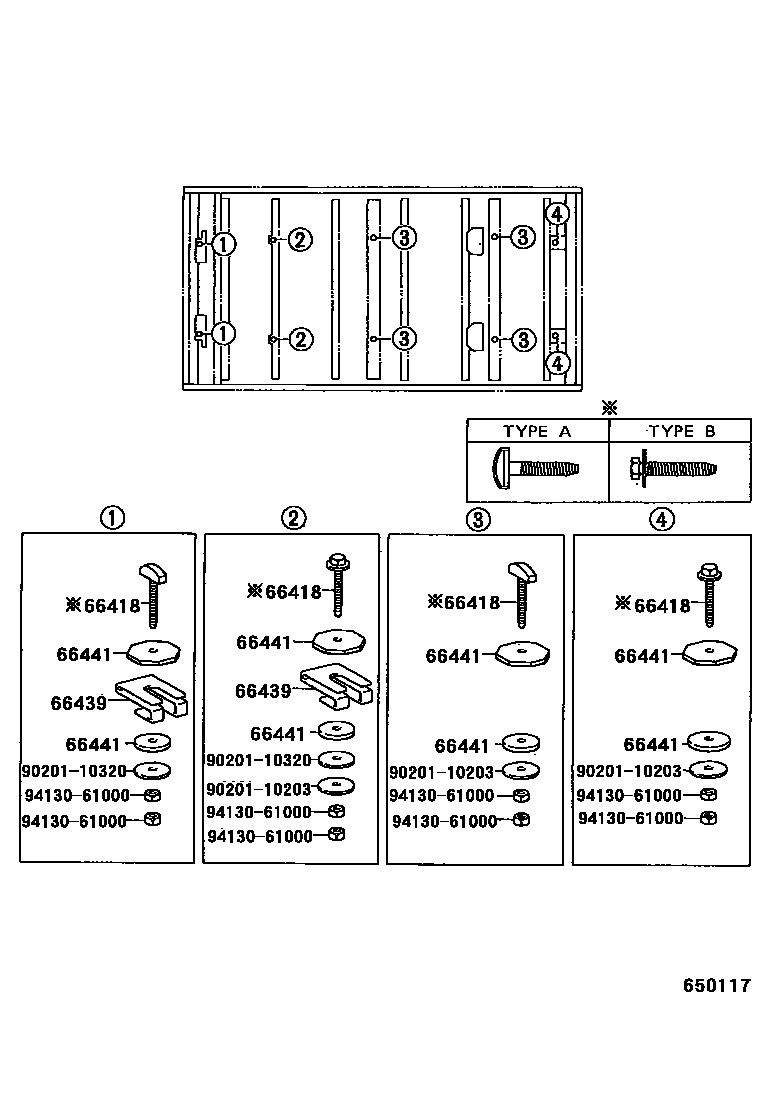

REAR BODY MOUNTING

0001 1 0003 1 0004 1 0005 1

66418BOLT, MOUNTING

main66418-95400iLY211,YY211..ST..125..CBU199505

TYPE A

main90109-10156iLY211,YY211..WT..125199505-199905

main90119-10490iLY21#,YY211..(T2,TW2)..TS..CBU199505

TYPE B

66439SHIM, SUPPORT

main66439-95400iLY211,YY211..ST..CBU199505

66441SHIM, MOUNTING, NO.1

main90564-12013iLY21#,YY211..15T..CBU199505

LWR

main90564-15142iLY21#,YY211..15T..CBU199505

UPR

main90564-15142iLY211,YY211..WT..125199505-199905

9020110203

main90201-10203

9020110320

main90201-10320

9413061000

main94130-61000

6 parts on this diagram · 4 diagrams in section
