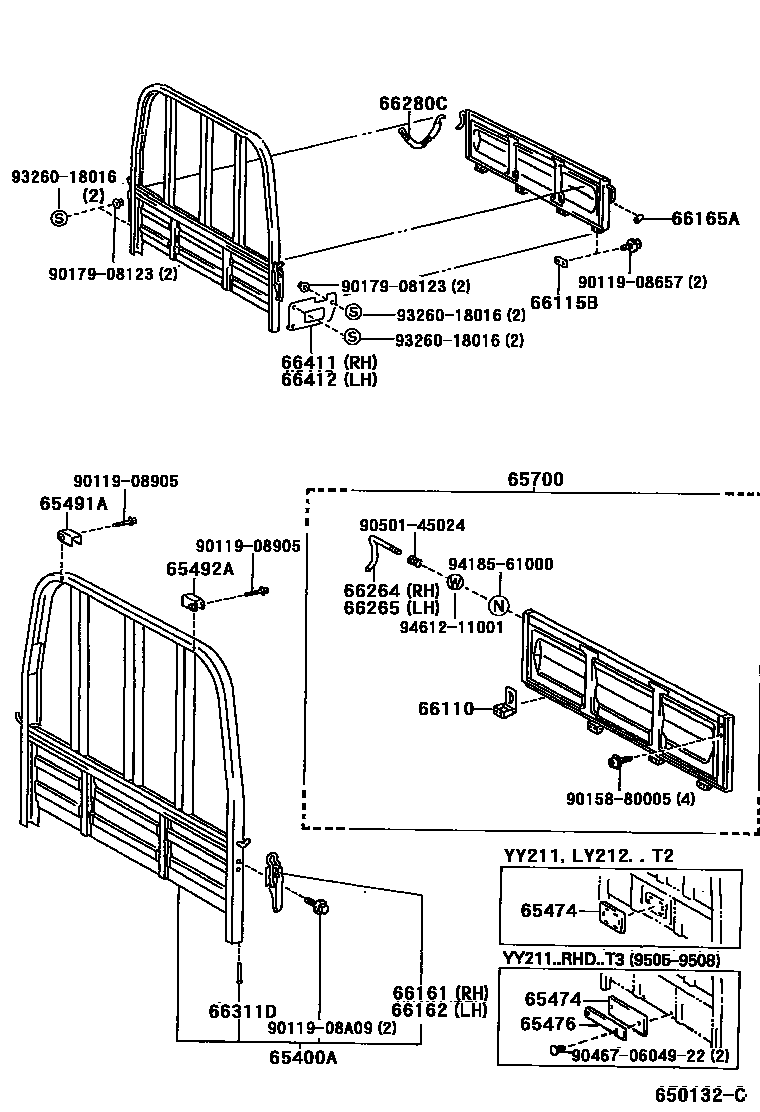

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400AGUARD ASSY, REAR BODY

main65400-25010iLY211,YY211..ST..15T..CBU199505

main65400-25020iLY212,YY211..WT..15T..CBU199505

main65400-25060iLY211..WT..15T..CBU199505-200002

main65400-25150iLY211,YY211..ST..125..CBU199505

main65400-25260iLY211,YY211..WT..125199505-199905

65474INSULATOR, HEADER

main65474-25010iYY211..WT..15T199505-200002

main65474-25020iYY211..RHD..ST199505-199508

SINGAPORE SPEC

main65474-25080iLY212..CBU200002

65476INSULATOR, HEADER BOARD, NO.2

main65476-25010iYY211..RHD..ST199505-199508

SINGAPORE SPEC

65491ASTOP, GUARD FRAME LOAD SLIDE, RH

main65491-25010iLY21#,YY211..15T..CBU199505

main65491-37010iLY211,YY211..WT..125199505-199905

65492ASTOP, GUARD FRAME LOAD SLIDE, LH

main65492-25010iLY21#,YY211..15T..CBU199505

main65492-37010iLY211,YY211..WT..125199505-199905

65700GATE ASSY, REAR BODY TAIL

main65700-25010iLY211,YY211..ST..125..CBU199505

main65700-25030iLY211,YY211..WT..125199505-199905

sub65700-37110

main65700-26010iLY21#,YY211..15T..CBU199505

66110HINGE ASSY, TAIL GATE

main66110-26010iLY21#,YY211..15T..CBU199505

main66110-37010iLY211,YY211..WT..125199505-199905

sub66110-37012

main66110-95014iLY211,YY211..ST..125..CBU199505

66115BRETAINER, GATE HINGE

main66115-95013iLY21#,YY211..15T..CBU199505

66161HANDLE, SIDE GATE LATCH, RH

main65080-92701iLY211,YY211..WT..125199505-199905

sub65080-92702

main65480-95011iLY21#,YY211..15T..CBU199505

66162HANDLE, SIDE GATE LATCH, LH

main65080-92701iLY211,YY211..WT..125199505-199905

sub65080-92702

main65480-95011iLY21#,YY211..15T..CBU199505

66165ACAP, GATE LATCH HANDLE

main66165-87402iLY21#,YY211..15T..CBU199505

main66165-92701iLY211,YY211..WT..125199505-199905

66264HANDLE, TAIL GATE LATCH, RH

main66264-26010iLY21#,YY211..15T..CBU199505

main66264-37010iLY211,YY211..WT..125199505-199905

66265HANDLE, TAIL GATE LATCH, LH

main66265-26010iLY21#,YY211..15T..CBU199505

main66265-37010iLY211,YY211..WT..125199505-199905

66280CCHAIN ASSY, TAIL GATE

main66280-25010iLY21#,YY211..15T..CBU199505

main66280-37010iLY211,YY211..ST..125..CBU199505

main66280-37020iLY211,YY211..WT..125199505-199905

66311DHOOK, ROPE

main66312-95A01iLY21#,YY211..15T..CBU199505

66411BRACKET, GUARD FRAME, RH

main66411-95022iLY21#,YY211..15T..CBU199505

66412BRACKET, GUARD FRAME, LH

main66412-95022iLY21#,YY211..15T..CBU199505

9011908657

main90119-08657

9011908905

main90119-08905

9011908A09

main90119-08A09

9015880005

main90158-80005

9017908123

main90179-08123

904670604922

main90467-0604922

9050145024

main90501-45024

9326018016

main93260-18016

9418561000

main94185-61000

9461211001

main94612-11001

27 parts on this diagram · 3 diagrams in section
