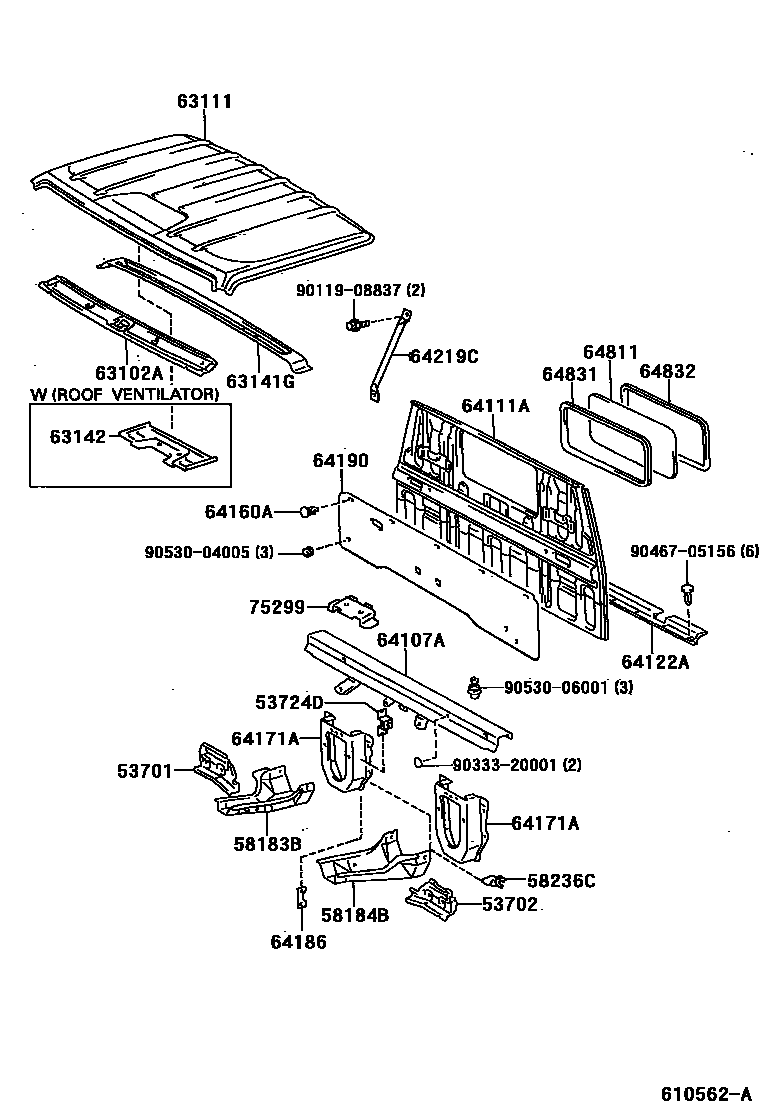

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53717-25010iLY21#,YY211..15T¥2,680199505

main53717-37020iLY21#,YY211..125¥2,680199505

53702APRON SUB-ASSY, FRONT FENDER, LH

main53718-25010iLY21#,YY211..15T¥2,680199505

main53718-37020iLY21#,YY211..125¥2,680199505

53724DBRACKET, CLAMP

main53724-95010iYY211¥240199505

58183BREINFORCEMENT, REAR MOUNTING, RH

main58102-25010iLY21#,YY211¥7,200199505

sub58102-25020¥7,200

main58102-25020iYY211..LHD¥7,200199708

CHINA SPEC

58184BREINFORCEMENT, REAR MOUNTING, LH

main58103-25010iLY21#,YY211¥7,400199505

58236CBRACKET, CLUTCH TUBE

main58236-25010iLY21#,YY211..15T¥860199505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-95418iLY21#,YY211¥6,600199505

sub63132-37010¥6,700

main63132-95420iLY21#,YY211..ARL,EUR,GEN¥6,600199505

W(ROOF VENTILATOR)

sub63132-37010¥6,700

63111PANEL, ROOF

main63111-37010iLY21#,YY211..15T¥30,500199505

main63111-37020iLY21#,YY211..15T..(ARL,EUR,GEN)¥30,500199505

W(ROOF VENTILATOR)

main63111-95416iLY21#,YY211..125¥60,400199505

W(ROOF VENTILATOR)

main63111-95417iLY21#,YY211..125¥60,400199505

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37010iLY21#,YY211..15T¥6,100199505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iLY21#,YY211..15T..(ARL,EUR,GEN)¥4,390199505

64107AFRAME SUB-ASSY, BACK

main64107-25022iYY211..RHD..15T¥16,700199505-200002

main64107-25042iLY211..RHD..15T..GEN¥16,700199505

main64107-25053iLY211..ARL¥16,700199505

main64107-25053iLY211..ST..15T..CBU¥16,700199505-199508

HONG KONG SPEC

main64107-25053iLY211..ST..15T..CBU¥16,700199508

W(FRONT SEAT BELT=ELR)

main64107-25092iYY211..WT..125¥16,700199505-199905

main64107-25102iLY211..WT..125¥16,700199505-199905

main64107-25110iLY211..15T..EUR¥16,700199505-199805

sub64107-25111

sub90333-20001¥70

main64107-25112iLY212..15T..EUR¥16,700199805

main64107-25140iYY211..ST..125¥16,700199505-199805

sub64107-25141¥16,700

sub90333-20001¥70

main64107-25141iYY211..ST..125¥16,700199805

main64107-25170iLY211..ST..125..CBU¥16,700199505-199805

sub64107-25171¥16,700

sub90333-20001¥70

main64107-25171iLY211..ST..125¥16,700199805-199905

main64107-25180iLY211..125..IV¥16,700199605-199805

sub64107-25181

sub90333-20001¥70

main64107-25182iLY212..125¥16,700199805

main64107-25210iYY211..LHD..15T¥16,700199505-199805

sub64107-25211¥16,700

sub90333-20001¥70

main64107-25211iYY211..LHD..15T¥16,700199805-199905

main64107-25220iLY211..LHD..GEN..IV¥16,700199505-199805

sub64107-25221¥16,700

sub90333-20001¥70

main64107-25221iLY211..LHD..IV¥16,700199805

main64107-25260iLY212..SA¥16,700199909

main64107-25270iLY212..CBU¥16,700200002

64111APANEL, BACK

main64100-25100iLY211..WT..IV¥53,000199508-199606

NORWAY SPEC

sub64100-25101¥53,100

sub64160-37010¥23,800

main64100-25101iLY21#..WT..15T..IV¥53,100199606-199806

NORWAY SPEC

sub64111-25010¥48,100

sub63218-95400¥2,290

sub64105-95A06¥15,400

sub64149-95A00¥280

sub71962-95400¥2,100

main64100-25102iLY212..WT..15T..EUR¥53,100199806-200007

NORWAY SPEC

sub64111-25011¥48,100

sub63218-95400¥2,290

sub64105-95A06¥15,400

sub64149-95A00¥280

sub71962-95400¥2,100

main64100-25103iLY212..WT..15T..EUR¥53,100200007-200108

NORWAY SPEC

sub64111-25011¥48,100

sub63218-95400¥2,290

sub64105-95A06¥15,400

sub64149-95A00¥280

sub71962-95400¥2,100

main64100-25110iLY212..WT..15T..EUR¥61,200200007-200108

sub64111-37260¥54,100

sub63218-95400¥2,290

sub64105-95412¥15,500

sub71962-95400¥2,100

main64100-25280iLY211,YY211..ST..125..CBU¥59,800199708-199905

ROUGH ROAD PACKAGE

sub64111-95412¥54,100

sub63218-95402¥3,440

sub64116-95A01¥7,200

sub64117-95400¥4,770

sub64119-95A01¥370

main64100-37290iLY211..ARL;LY211,YY211..WT..15T..CBU¥60,700199505-199606

W(FRONT HEAD REST=PASSENGER SEAT)

sub64100-37291¥61,200

sub64160-37010¥23,800

main64100-37291iLY211..ARL;LY21#,YY211..WT..15T..CBU¥61,200199606-200107

W(FRONT HEAD REST=PASSENGER SEAT)

sub64111-37260¥54,100

sub63218-95400¥2,290

sub64105-37030¥14,900

sub71962-95400¥2,100

main64100-37300iLY211,YY211..RHD..ST..GEN¥60,700199505-199606

sub64100-37301¥61,200

sub64160-37010¥23,800

main64100-37301iLY212..SA;LY211,YY211..RHD..ST..GEN¥61,200199606-200110

sub64111-37260¥54,100

sub63218-95400¥2,290

sub64105-37030¥14,900

main64100-37310iLY211..15T..EUR¥60,700199505-199606

W(FRONT HEAD REST=PASSENGER SEAT)

sub64100-37311¥61,200

sub64160-37010¥23,800

main64100-37311iLY212..ST;LY211..15T..EUR¥61,200199606-200108

sub64111-37260¥54,100

sub63218-95400¥2,290

sub64105-95A06¥15,400

sub71962-95400¥2,100

main64100-37311iLY211,YY211..LHD..15T..GEN¥61,200199606-200107

W(FRONT HEAD REST=PASSENGER SEAT)

sub64111-37260¥54,100

sub63218-95400¥2,290

sub64105-95A06¥15,400

sub71962-95400¥2,100

main64100-37311iLY212..WT..15T..EUR¥61,200200007-200108

PORTUGAL SPEC

sub64111-37260¥54,100

sub63218-95400¥2,290

sub64105-95A06¥15,400

sub71962-95400¥2,100

main64100-37320iLY211,YY211..LHD..15T..GEN¥60,700199505-199606

sub64100-37321¥61,200

sub64160-37010¥23,800

main64100-37321iLY211,YY211..LHD..15T..GEN¥61,200199606-200107

sub64111-37260¥54,100

sub63218-95400¥2,290

sub64105-95A06¥15,400

main64100-95450iLY21#,YY211..125¥59,800199505-200108

sub64111-95412¥54,100

sub63218-95402¥3,440

sub64116-95A01¥7,200

sub64117-95400¥4,770

sub64119-95A01¥370

64122ABAFFLE, DUST REAR BODY

main64122-25011iLY21#,YY211..WT..15T..CBU¥6,800199505

main64122-25030iLY211,YY211..ST..15T..CBU¥3,200199505

main64122-37061iLY211,YY211..125..CBU¥2,890199505

64160ACLIP(FOR BACK PANEL UPPER SILENCER)

main90467-06171-C0iLY21#..15T..(ARL,EUR)199505-200108

BLACK,TRIM1#

sub90467-06171¥110

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-25011iLY21#,YY211..15T¥7,800199505

main64171-95410iLY21#,YY211..125¥9,200199505

64186RETAINER, REAR MOUNTING BRACKET

main64186-95A00iLY21#..ARL,EUR,SA;LY211..ST..15T..CBU¥370199505-199610

main64186-95A00iLY211..ST..15T..CBU¥370199505-199508

HONG KONG SPEC

main64186-95A00iLY211..ST..15T..CBU¥370199508-199610

W(FRONT SEAT BELT=ELR)

64190SILENCER ASSY, BACK PANEL

main64190-25020iLY211..ARL¥10,800199505

main64190-25040iLY211..15T..EUR¥10,800199505-199805

main64190-25060iLY212..15T..EUR¥10,800199805

64219CSTAY, BACK PANEL

main64219-25010iLY21#..RHD..15T¥2,360199505

64811GLASS, BACK WINDOW

main64811-37070iLY211..WT..IV;LY212..WT..15T;LY211,YY211..15T..(ARL,GEN)¥0199610

*TEM,T=3.5,GREEN

main64811-37080iLY212,YY211..125¥19,700199610-199905

*TEM,T=3.5,GREEN

main64811-95409iLY21#..15T..EUR¥15,600199505-199610

*TEM,T=3.5

main64811-95410iLY21#..125..IV¥7,900199505-199610

*TEM,T=3.5

sub64811-37080¥19,700

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37050iLY21#,YY211¥4,930199905

sub64831-37051¥3,900

main64831-95406iLY21#,YY211¥4,940199505-199905

sub64831-37050¥4,930

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-37040iLY21#,YY211¥710199905

main64832-95013iLY21#,YY211¥1,030199505-199905

sub64832-37040¥710

75299BASE, JACK HOLDER

main75209-25010iLY21#,YY211..15T¥1,760199505

9011908837

main90119-08837¥100

9033320001

main90333-20001¥70

9046705156

main90467-05156¥80

9053004005

main90530-04005¥200

9053006001

main90530-06001¥110

27 parts on this diagram · 3 diagrams in section
