SIDE MEMBER
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
W(RADIO)
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W(RADIO)
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61107CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, RH
61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
61134BBRACKET, FRONT BODY PILLAR OUTER, LH
61181ABRACKET, INSTRUMENT SIDE, RH
61182CBRACKET, INSTRUMENT SIDE, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
64015PANEL SUB-ASSY, BACK CORNER, INNER RH
SINGAPORE SPEC OR HONG KONG SPEC
64016PANEL SUB-ASSY, BACK CORNER, INNER LH
SINGAPORE SPEC OR HONG KONG SPEC
64103APANEL SUB-ASSY, BACK CORNER, OUTER RH
ROUGH ROAD PACKAGE
SINGAPORE SPEC OR HONG KONG SPEC
64104APANEL SUB-ASSY, BACK CORNER, OUTER LH
ROUGH ROAD PACKAGE
SINGAPORE SPEC OR HONG KONG SPEC
64163ACOVER, BACK CORNER, INNER
BLUISH GRAY,TRIM1#
HONG KONG SPEC,BLUISH GRAY,TRIM1#
9010508341
main90105-08341
9016260005
main90162-60005
9018906006
main90189-06006
9046706017B0
main90467-06017B0
9165260614
main91652-60614

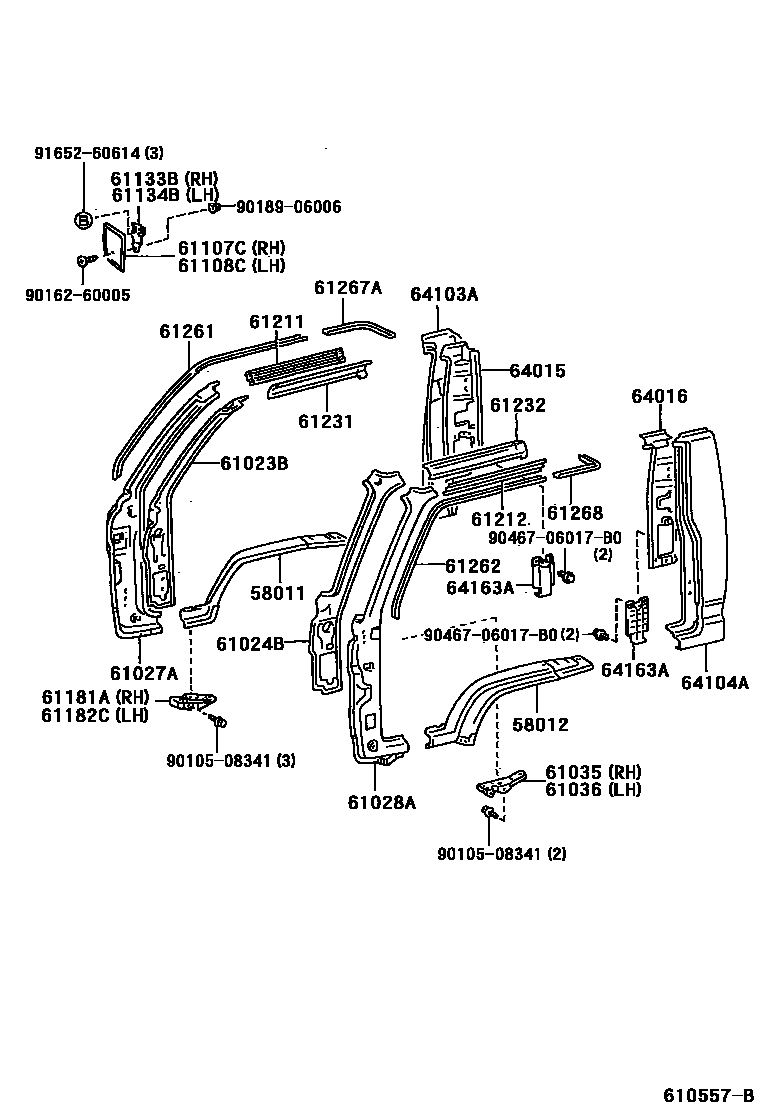

32 parts on this diagram · 2 diagrams in section
