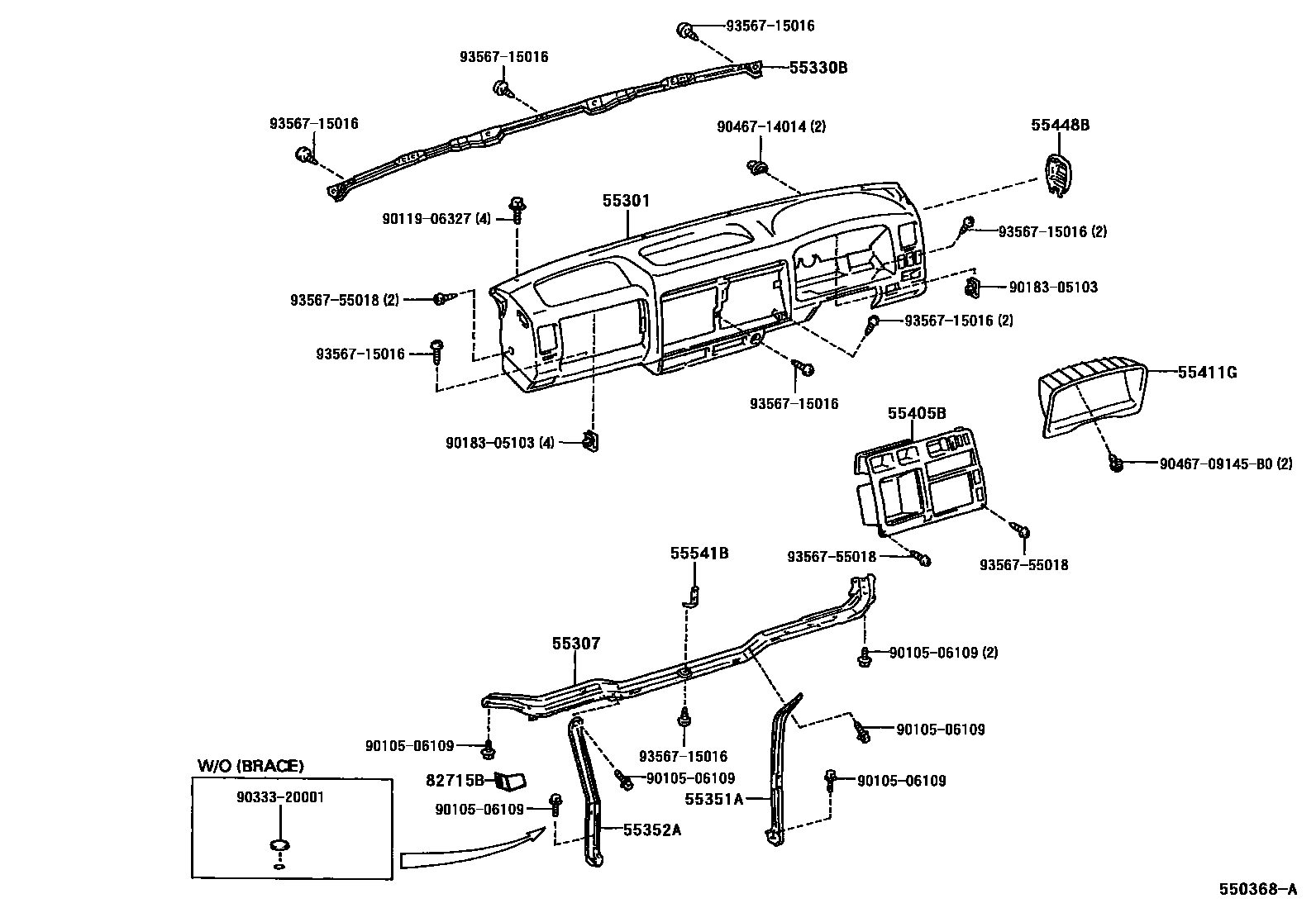

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-37020-B0iLY211,YY211..RHD199505-199708

BLUISH GRAY,TRIM1#

sub55311-37021¥43,200

sub55411-37020¥4,550

main55311-37021-B0iLY21#,YY211..RHD199708

BLUISH GRAY,TRIM1#

main55311-37030-B0iLY21#,YY211..LHD199505

BLUISH GRAY,TRIM1#

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-37010iLY21#,YY211..RHD¥6,600199505

main55307-37020iLY21#,YY211..LHD¥6,600199505

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-25010iLY21#,YY211¥5,700199505

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-37010iLY21#,YY211..RHD¥1,810199505

main55351-37020iLY21#,YY211..LHD¥1,900199505

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-37010iLY211,YY211..RHD..GEN¥1,060199505-199610

main55352-37030iLY21#,YY211..RHD..GEN¥1,050199610

main55352-37050iLY211,YY211..LHD¥1,680199505-199708

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-25010-C0iLY21#..EUR199505

TYPE B:REFER TO ILLUSTRATION & W(FRONT HEATER),BLACK,TRIM1#

main55405-25030-C0iLY21#..EUR199505

TYPE B:REFER TO ILLUSTRATION & W(FRONT HEATER & CLOCK),BLACK,TRIM1#

main55405-25050-C0iLY211..EUR199505-199708

TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM1#

main55405-25060-C0iLY21#,YY211..RHD..GEN199505

W(CLOCK),BLACK,TRIM1#

main55405-37010-C0iLY211..ARL199505

W(CLOCK & FRONT HEATER),BLACK,TRIM1#

main55405-37010-C0iLY211..ARL199505

W(CLOCK),BLACK,TRIM1#

main55405-37040-C0iLY212..SA;LY211,YY211..RHD199505

W(FRONT HEATER),BLACK,TRIM1#

main55405-37050-C0iLY211,YY211..LHD..GEN199505-199708

TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1#

main55405-37060-C0iLY212..WT..EUR;LY211,YY211..LHD199505-200002

TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER),BLACK,TRIM1#

main55405-37070-C0iLY212..WT..EUR;LY211,YY211..LHD199505-200002

TYPE A:REFER TO ILLUSTRATION & W(FRONT HEATER & CLOCK),BLACK,TRIM1#

main55405-37100-C0iLY21#,YY211..RHD..GEN199505

BLACK,TRIM1#

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-37010-C0iLY211,YY211199505-200108

BLACK,TRIM1#

main55411-37020-C0iLY21#,YY211..RHD199708-200110

BLACK,TRIM1#

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-37010-B0iLY21#,YY211199505

BLUISH GRAY,TRIM1#

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-37010iLY21#,YY211¥460199505

82715BBRACKET, WIRING HARNESS CLAMP

main82715-37671iLY212..CBU¥550200002

9010506109

main90105-06109¥160

9011906327

main90119-06327¥120

9018305103

main90183-05103¥90

9033320001

main90333-20001¥70

9046709145B0

main90467-09145B0

9046714014

main90467-14014¥140

9356715016

main93567-15016¥120

9356755018

main93567-55018¥120

18 parts on this diagram · 4 diagrams in section
