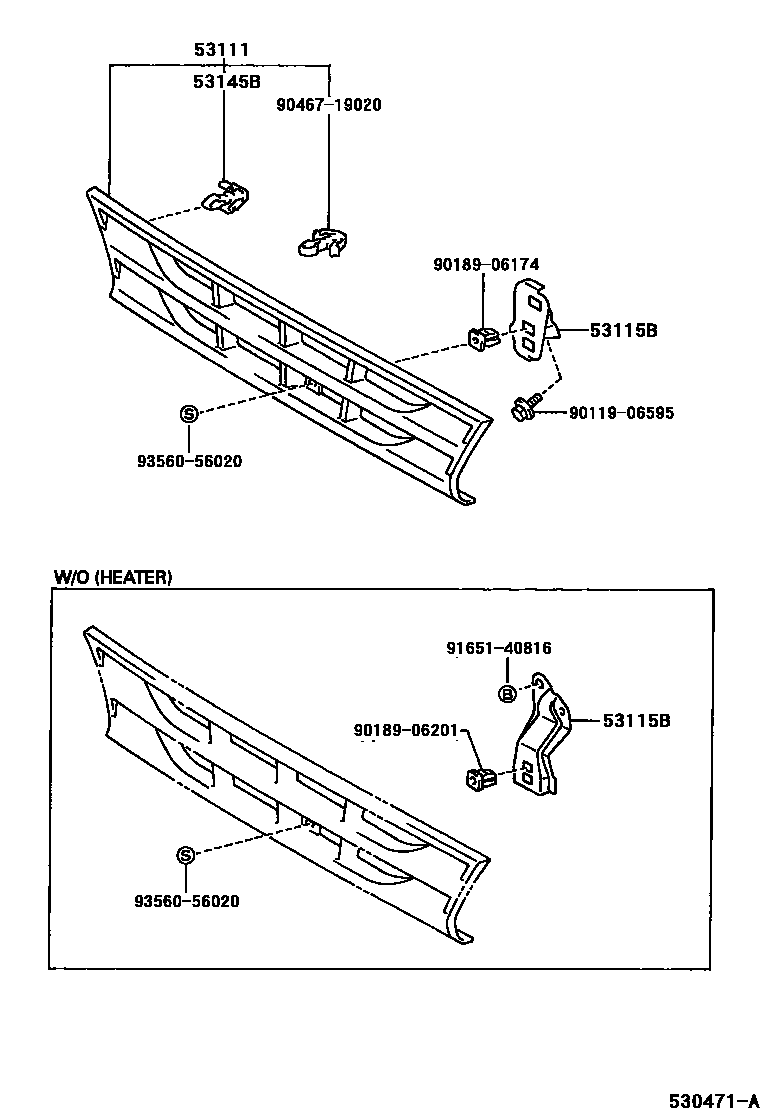

RADIATOR GRILLE

0001 1TYPE A 0002 1TYPE B

53111GRILLE, RADIATOR

main53101-37020-B0iLY21#..ARL,EUR199505-199905

TYPE A:REFER TO ILLUSTRATION,LT. GRAY,048 ,8E5

sub53101-37020

main53101-37020-B0iLY211..ST..15T..CBU199505-199610

HONG KONG SPEC;TYPE A:REFER TO ILLUSTRATION,LT. GRAY,048 ,8E5

sub53101-37020

main53101-37020-B0iLY21#..ARL,EUR199905

TYPE A:REFER TO ILLUSTRATION,LT. GRAY,058 ,8P0

sub53101-37020

main53101-37070-A0iLY21#,YY211..GEN,SA200002

TYPE B:REFER TO ILLUSTRATION,GRAY,058 ,8P0

sub53101-37070

main53101-37070-B0iLY211,YY211..(T3,TW2)..GEN199505-199905

LT. GRAY,048 ,8E5

sub53101-37070

main53101-37070-B0iLY211,YY211..(T3,TW2)..GEN199505-199905

TYPE B:REFER TO ILLUSTRATION,LT. GRAY,048 ,8E5

sub53101-37070

main53101-37070-B0iLY21#,YY211..GEN,SA199905-200002

TYPE B:REFER TO ILLUSTRATION,LT. GRAY,058 ,8P0

sub53101-37070

main53101-37150-B0iLY211,YY211..LHD..GEN199505-199905

TYPE B:REFER TO ILLUSTRATION;W(*STAC),LT. GRAY,048 ,8E5

sub53101-37150

main53101-37150-B0iLY211,YY211..LHD199905

TYPE B:REFER TO ILLUSTRATION;W(*STAC),LT. GRAY,058 ,8P0

sub53101-37150

53115BBRACKET, RADIATOR GRILLE

main53115-37020iLY212..IV;LY211,YY211199505

W(FRONT HEATER)

main53115-37030iLY212..EUR;LY211,YY211..EUR,GEN199505

main55812-37010iLY212..CBU200003

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-26010iLY211..ST..15T..CBU199505-199610

HONG KONG SPEC

main53145-26010iLY21#..ARL,EUR199505

9011906595

main90119-06595

9018906174

main90189-06174

9018906201

main90189-06201

9046719020

main90467-19020

9165140816

main91651-40816

9356056020

main93560-56020

9 parts on this diagram · 2 diagrams in section
